Sliding Roof (Except TMC Made): Notes

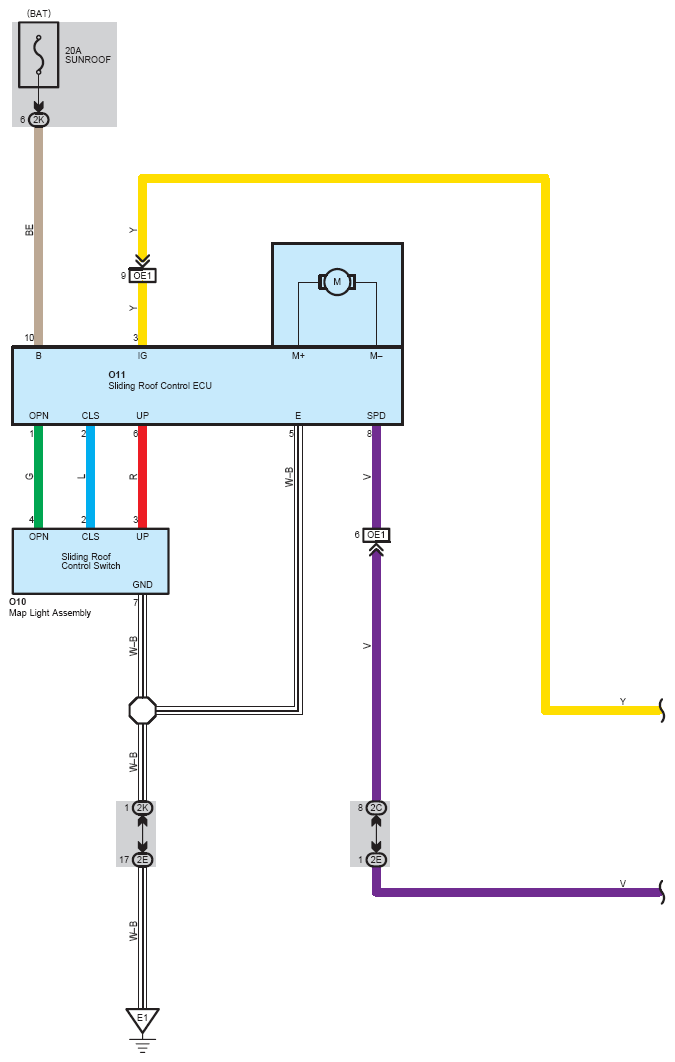

Fig 1: Sliding Roof (Except TMC Made) System Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

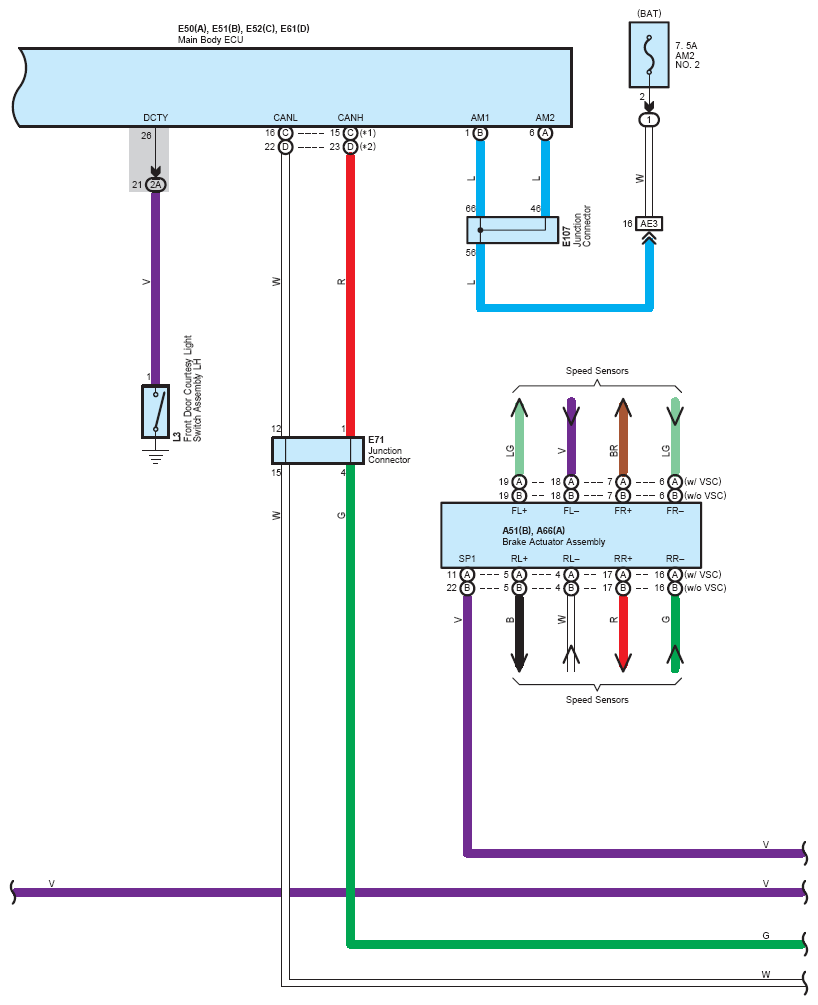

Fig 2: Sliding Roof (Except TMC Made) System Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Sliding Roof (Except TMC Made) System Wiring Diagram (3 Of 4)

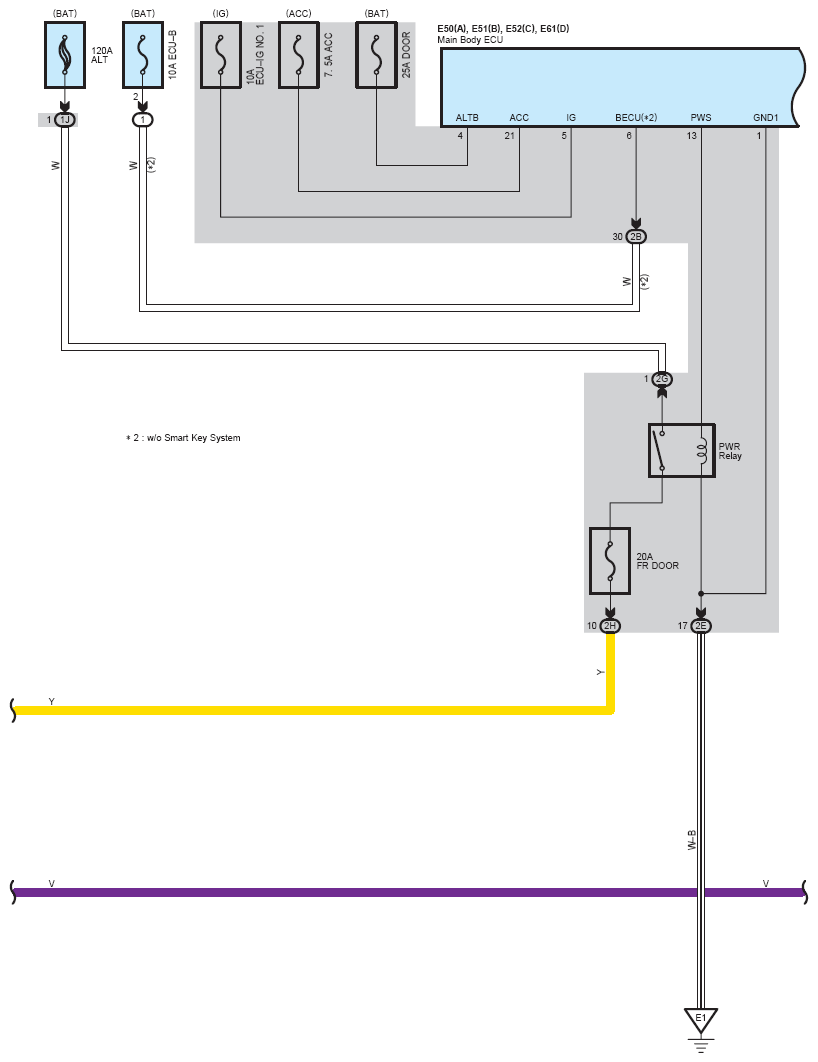

Fig 4: Sliding Roof (Except TMC Made) System Wiring Diagram (4 Of 4)
