Engine Immobiliser System (w/o Smart Key System) (Except TMC Made): Notes

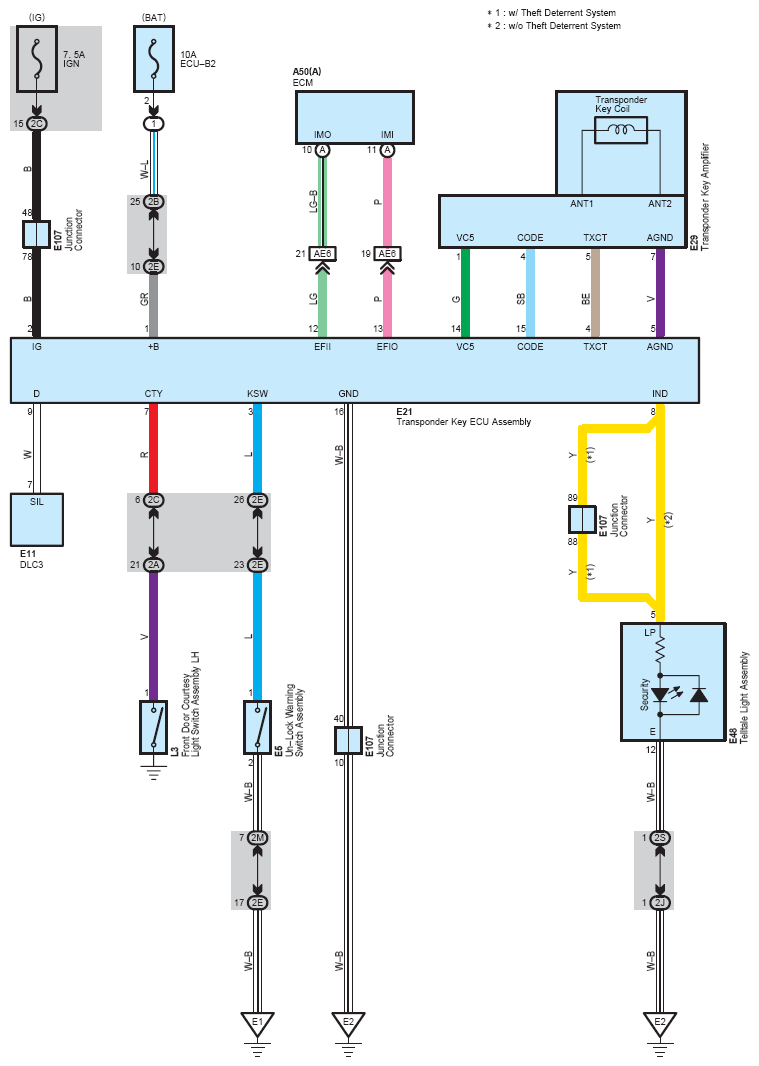

Fig 1: Engine Immobiliser System (w/o Smart Key System) (Except TMC Made) Wiring Diagram
G07115132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
