Starting (w/o Smart Key System) (Except TMC Made): Notes

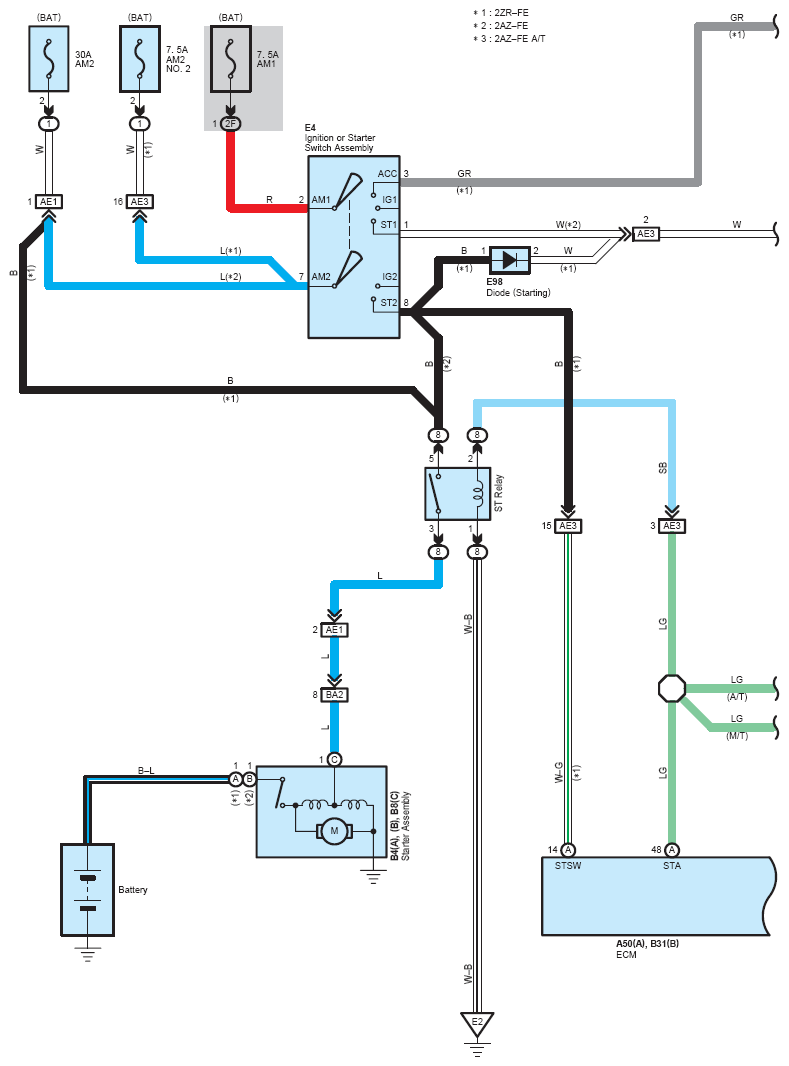

Fig 1: Starting (w/o Smart Key System) (Except TMC Made) Wiring Diagram (1 Of 2)
G07115105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

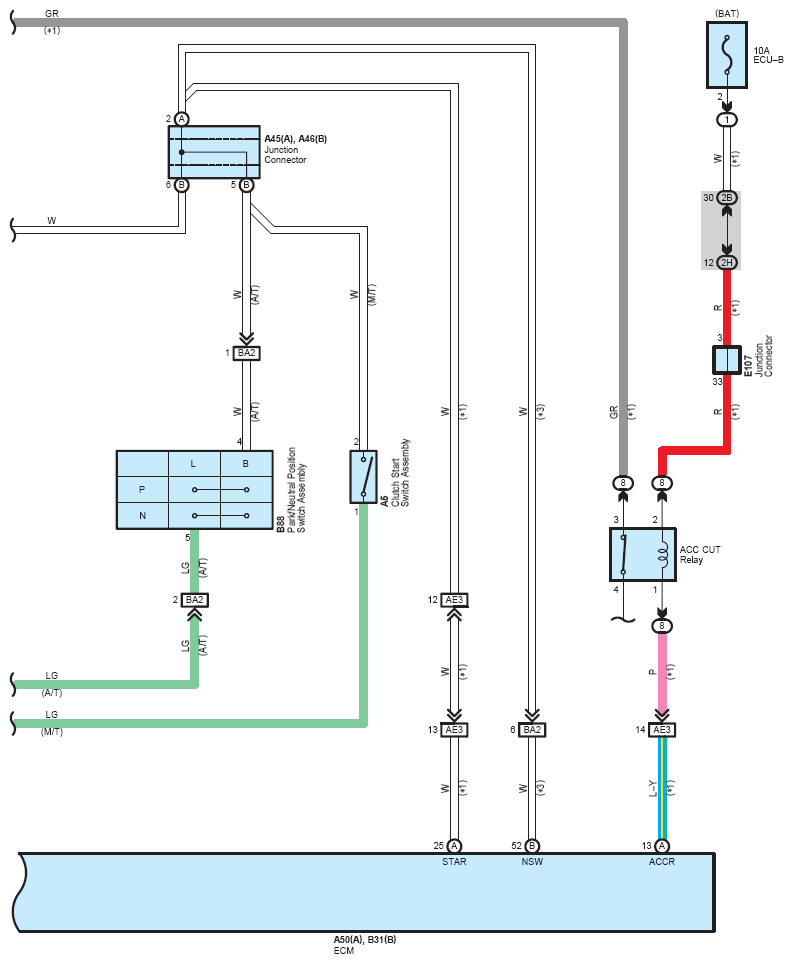

Fig 2: Starting (w/o Smart Key System) (Except TMC Made) Wiring Diagram (2 Of 2)
G07115106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
