Horn (TMC Made)
›
Notes
Horn (TMC Made): Notes

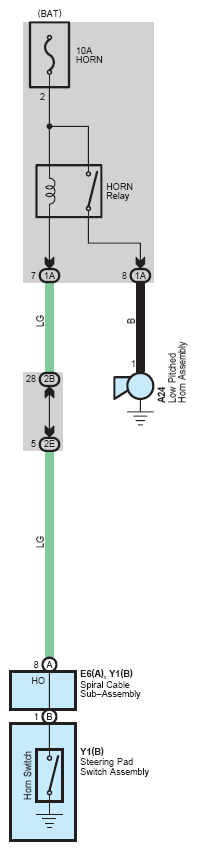

Fig 1: Horn (TMC Made) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
