Clock (TMC Made)
›
Notes
Clock (TMC Made): Notes

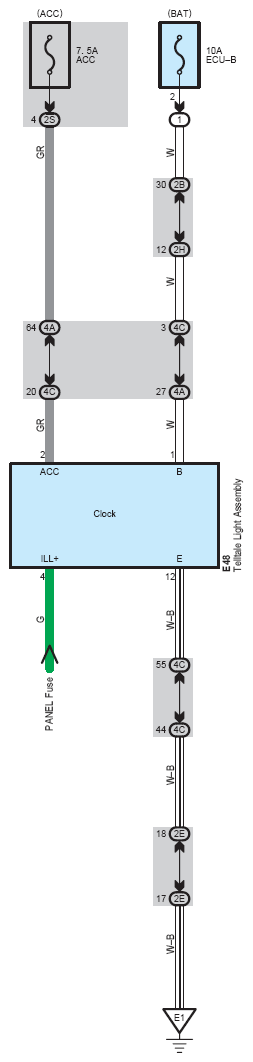

Fig 1: Clock (TMC Made) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
