Corolla S, Standard
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Stop Light (TMC Made)
›
Notes
Stop Light (TMC Made): Notes

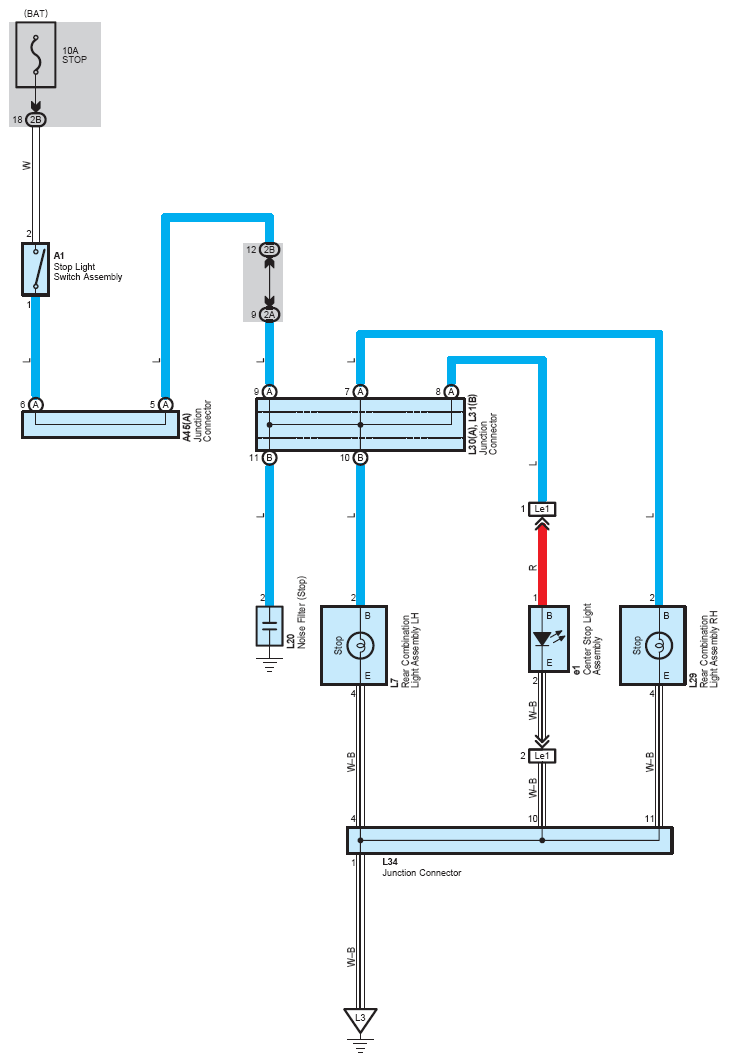

Fig 1: Stop Light (TMC Made) System Wiring Diagram
