Power Window Regulator Motor: Components: Illustration

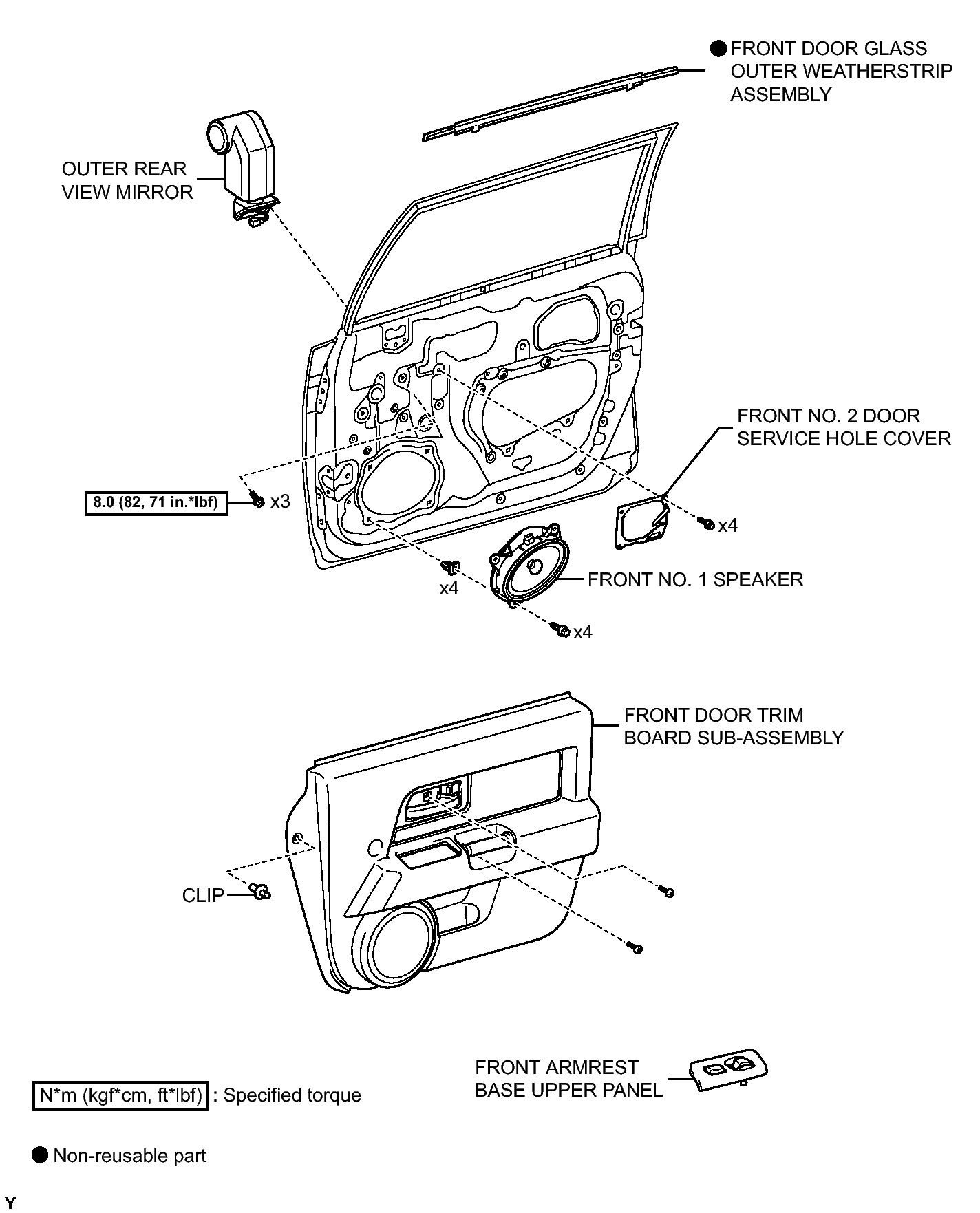

Fig 1: Identifying Power Window Regulator Motor Replacement Components With Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

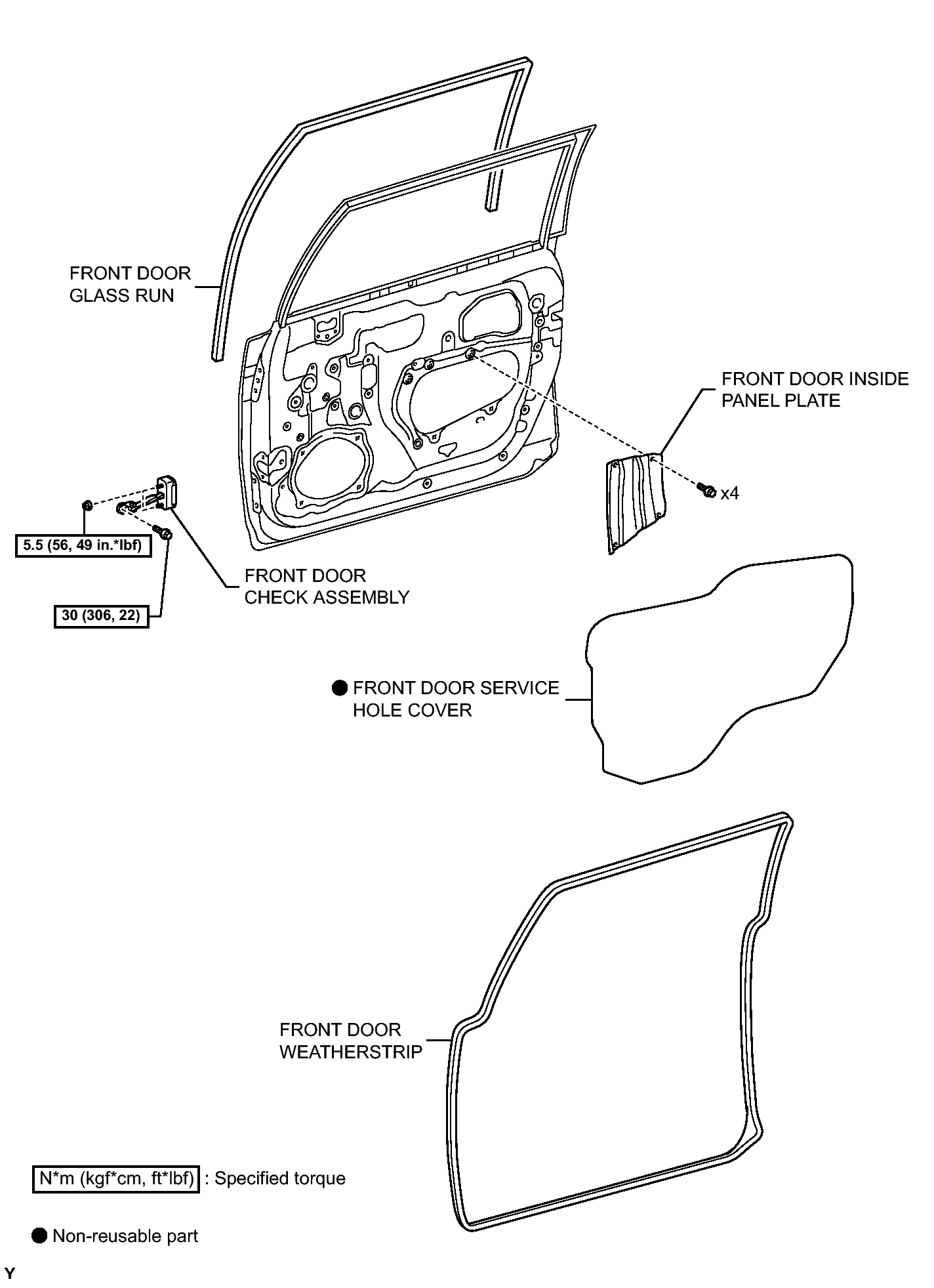

Fig 1: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

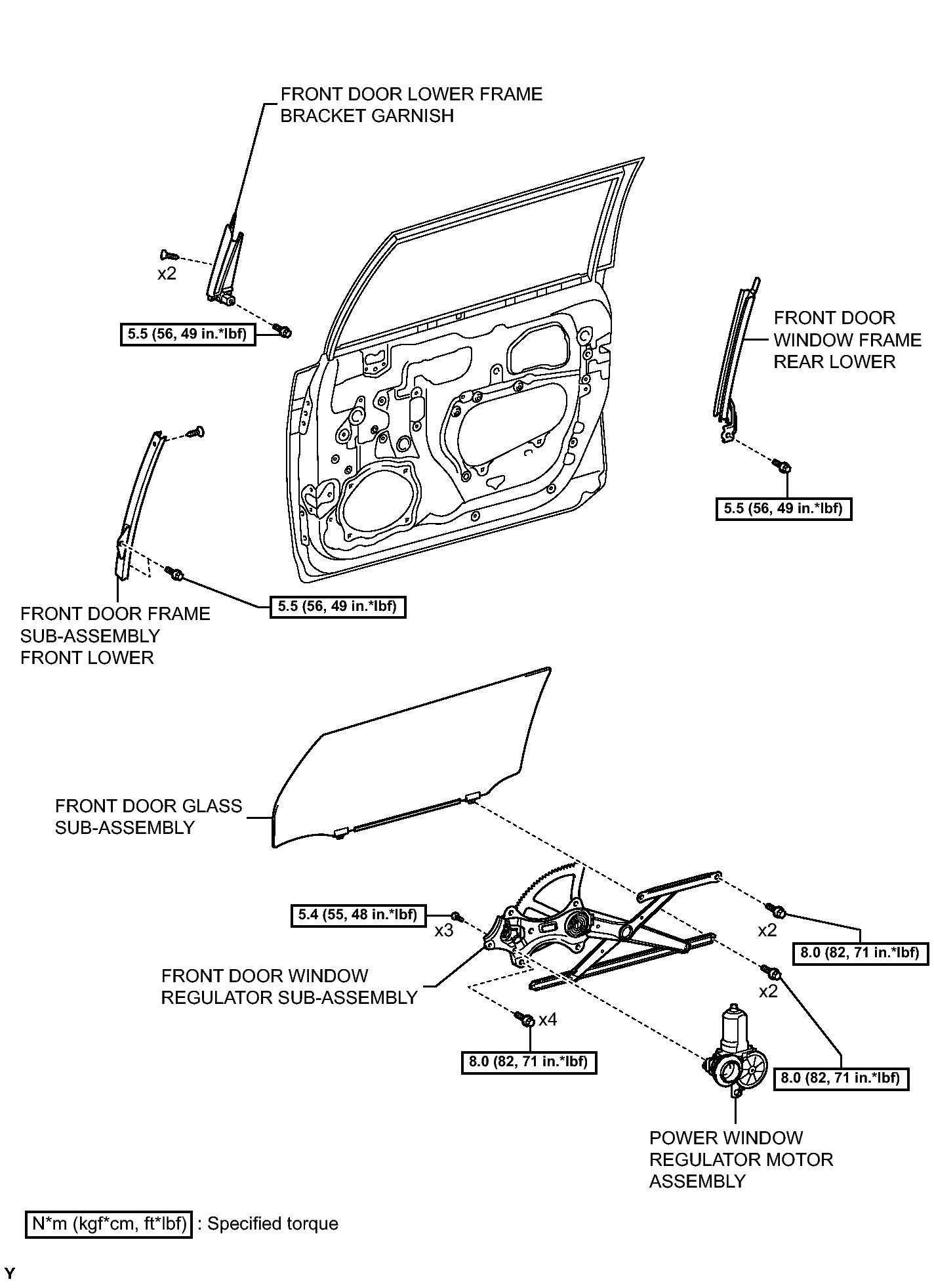

Fig 1: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
