OEM System Circuits: 4WD: Notes

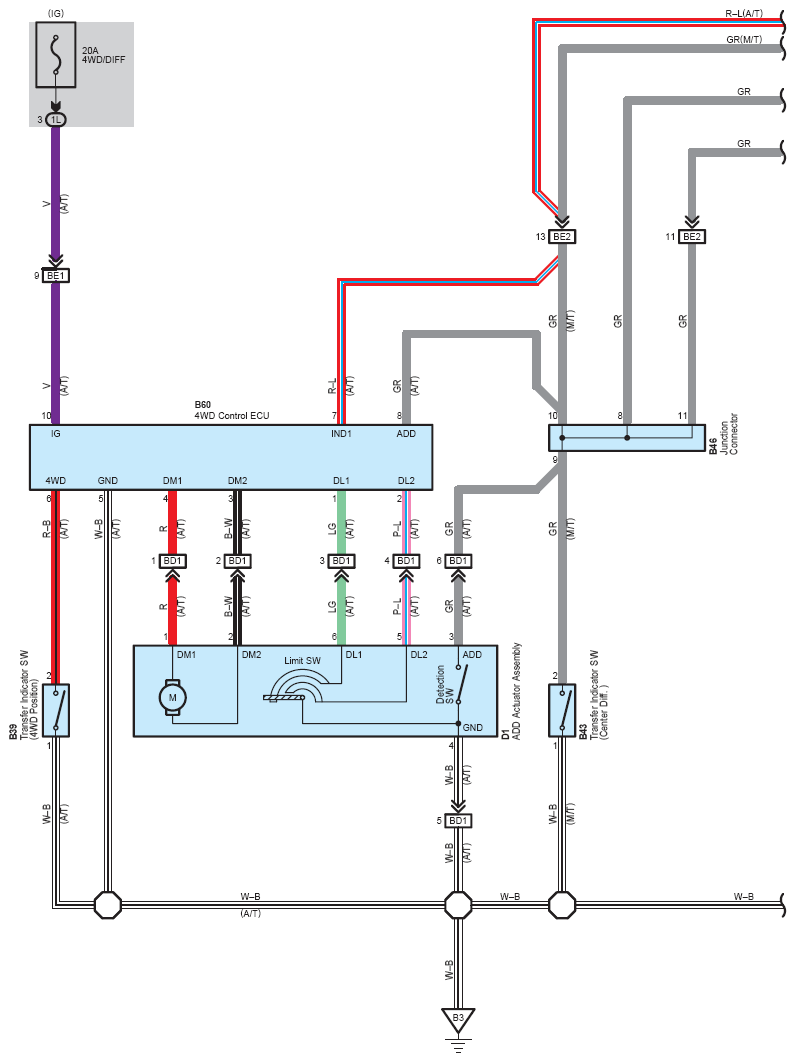

Fig 1: 4WD System Wiring Diagram (1 Of 3)
G07116499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

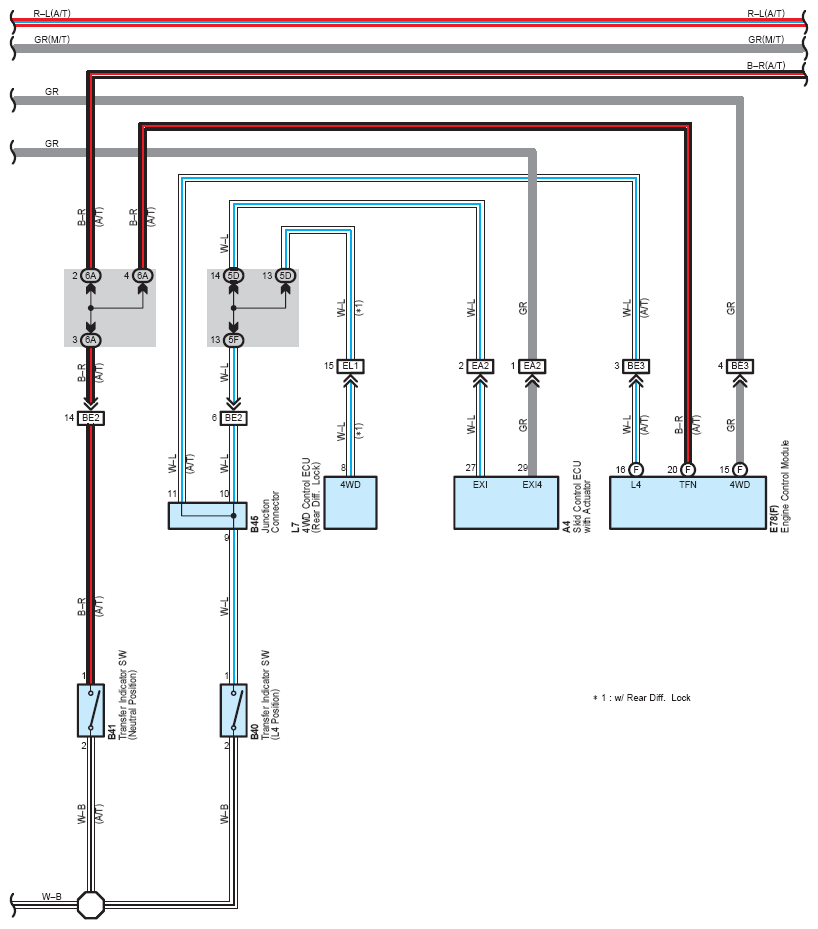

Fig 2: 4WD System Wiring Diagram (2 Of 3)
G07116500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

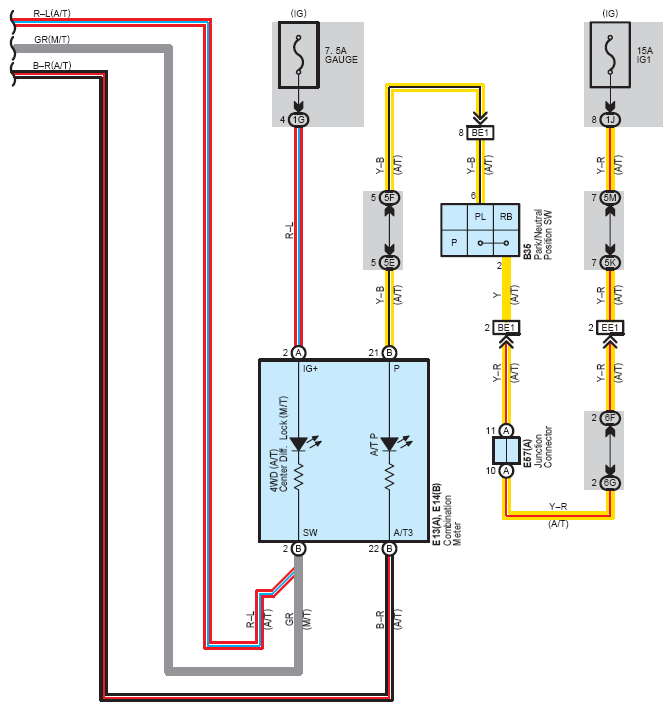

Fig 3: 4WD System Wiring Diagram (3 Of 3)
G07116501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
