Starting System (Inspection)
›
Starting System
›
System Diagram
›
System Diagram
System Diagram

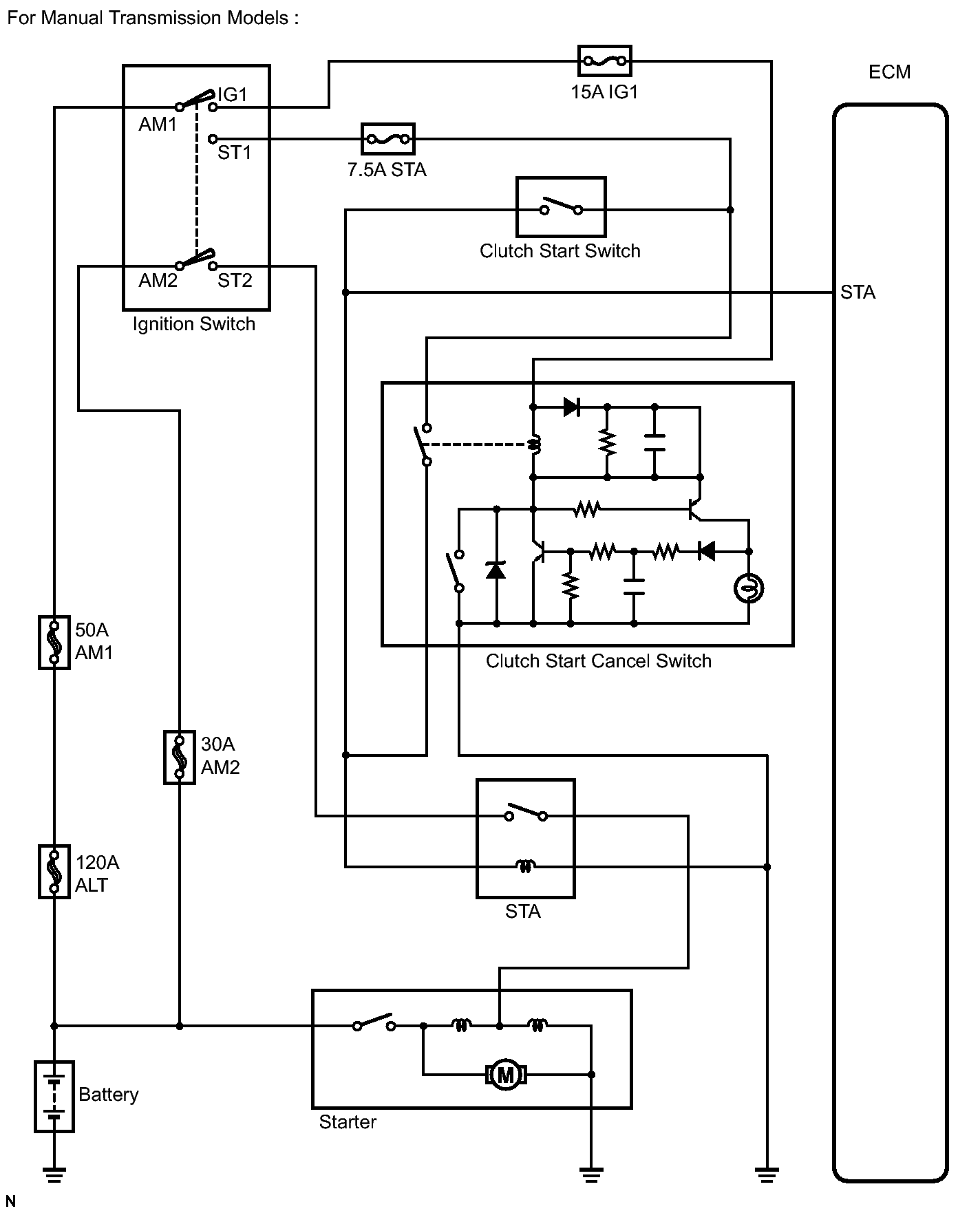

Fig 1: Identifying Starting Circuit Diagram (For Manual Transmission Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

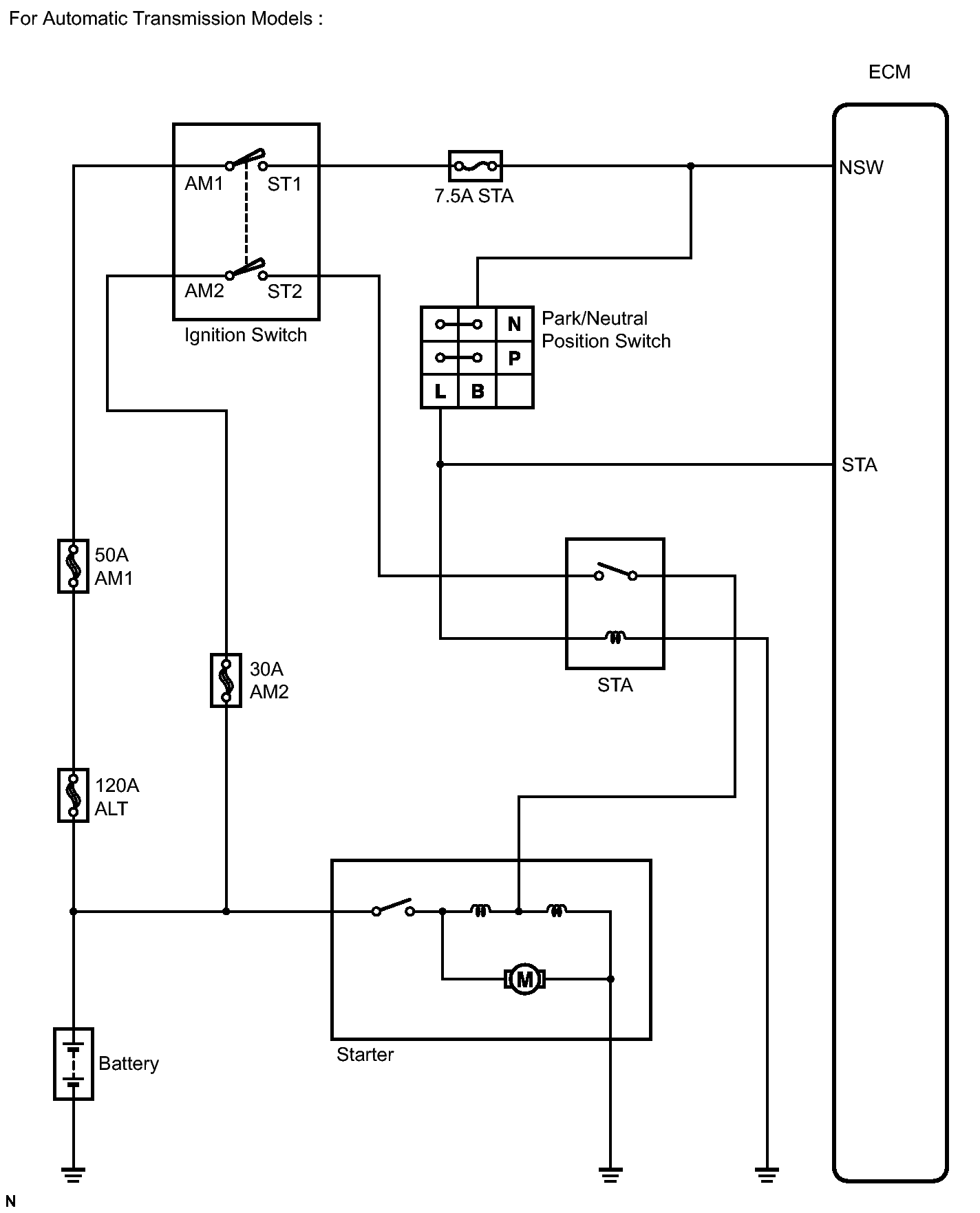

Fig 2: Identifying Starting Circuit Diagram (For Automatic Transmission Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
