System Diagram

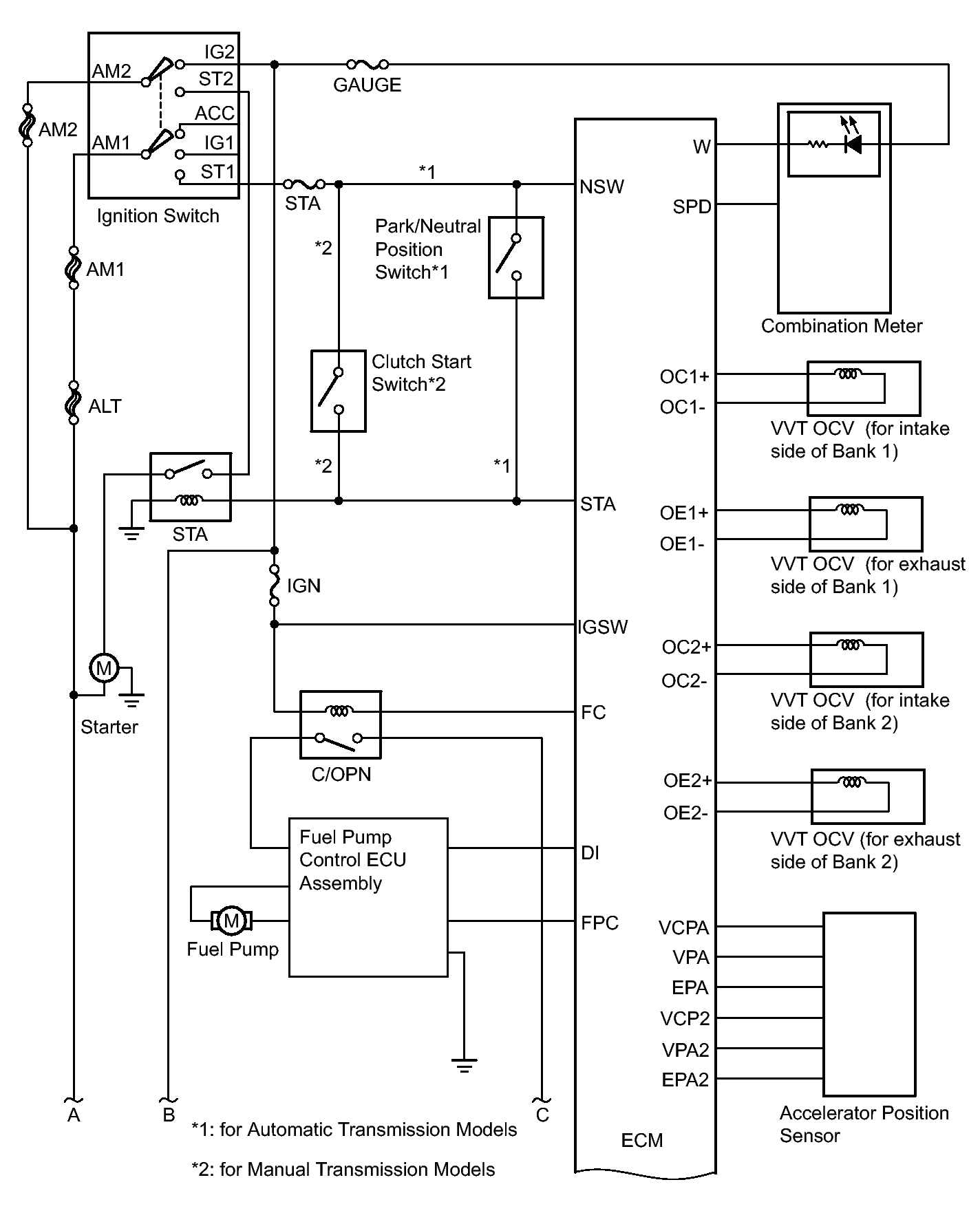

Fig 1: Engine Control System Circuit Diagram (1 Of 5)
GTY308592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

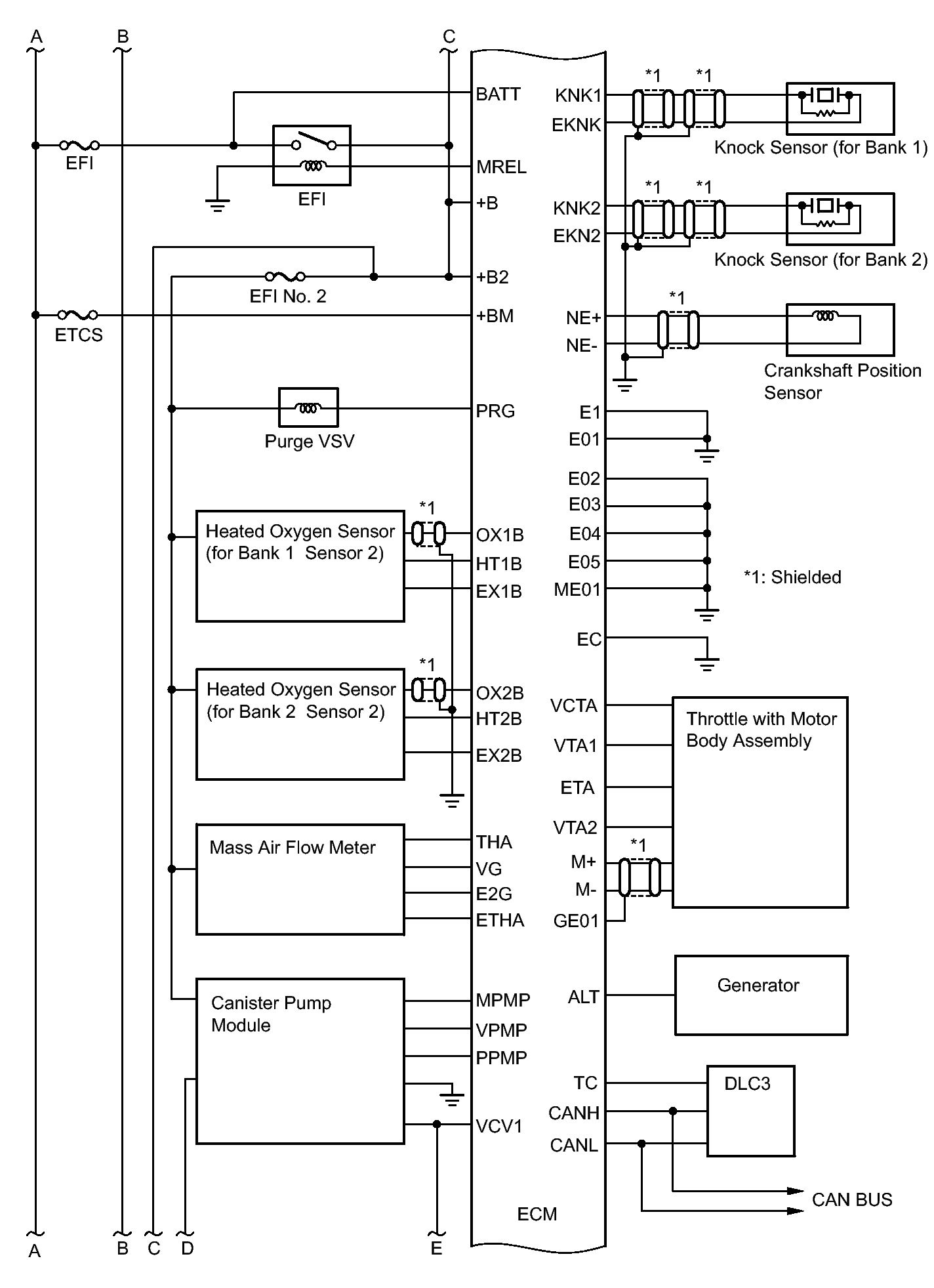

Fig 2: Engine Control System Circuit Diagram (2 Of 5)
GTY309019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

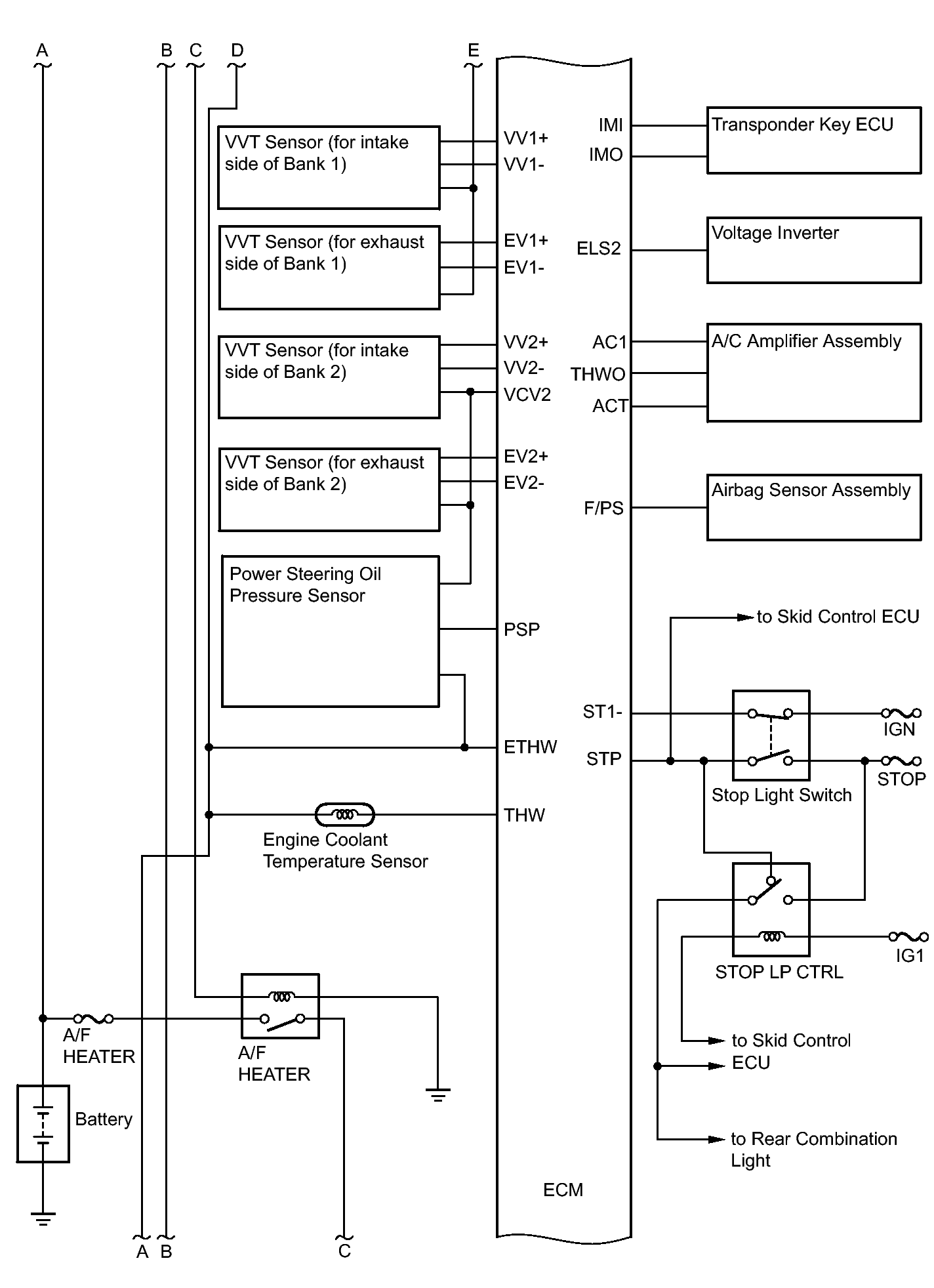

Fig 3: Engine Control System Circuit Diagram (3 Of 5)
GTY309237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

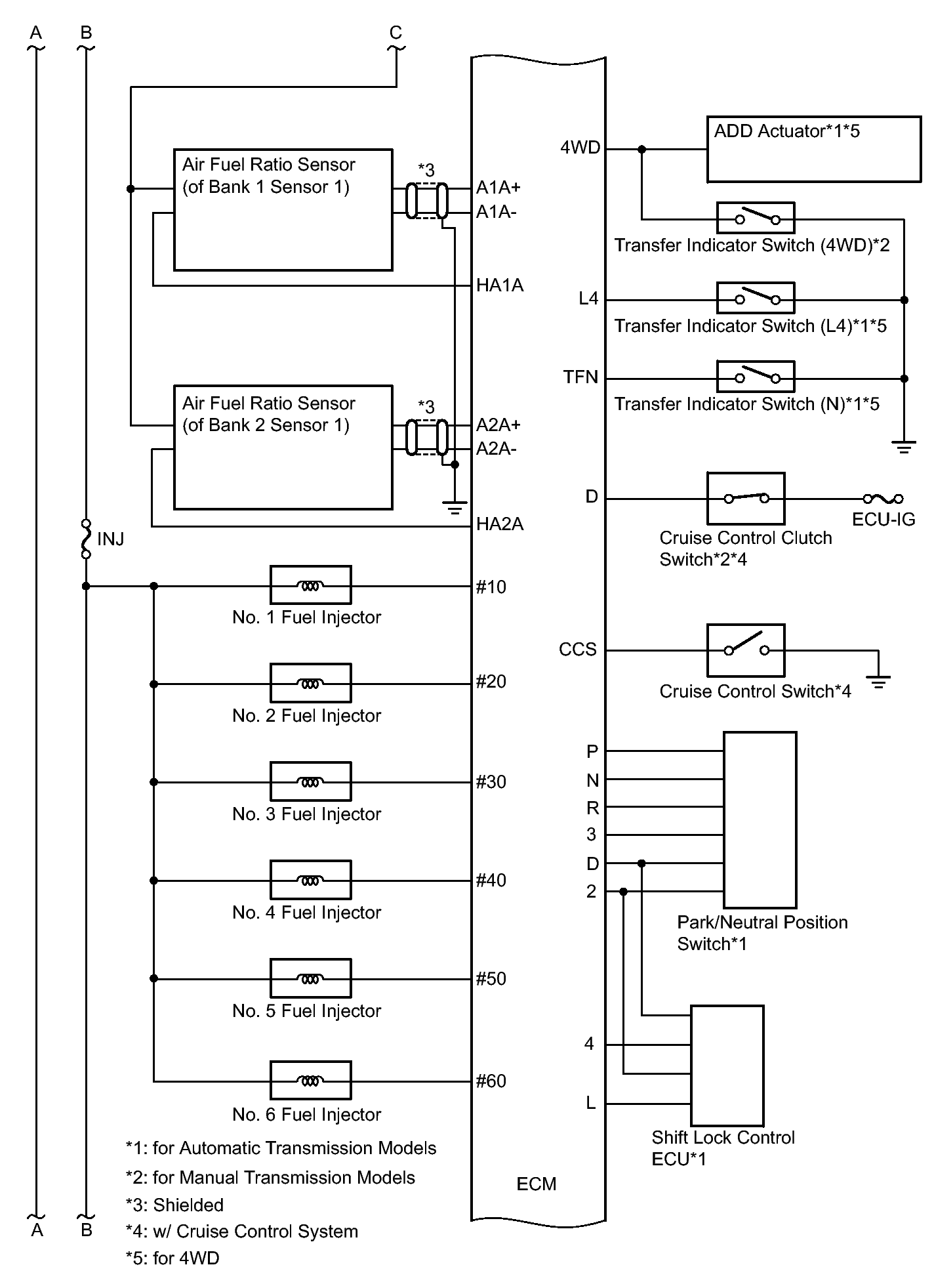

Fig 4: Engine Control System Circuit Diagram (4 Of 5)
GTY309230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

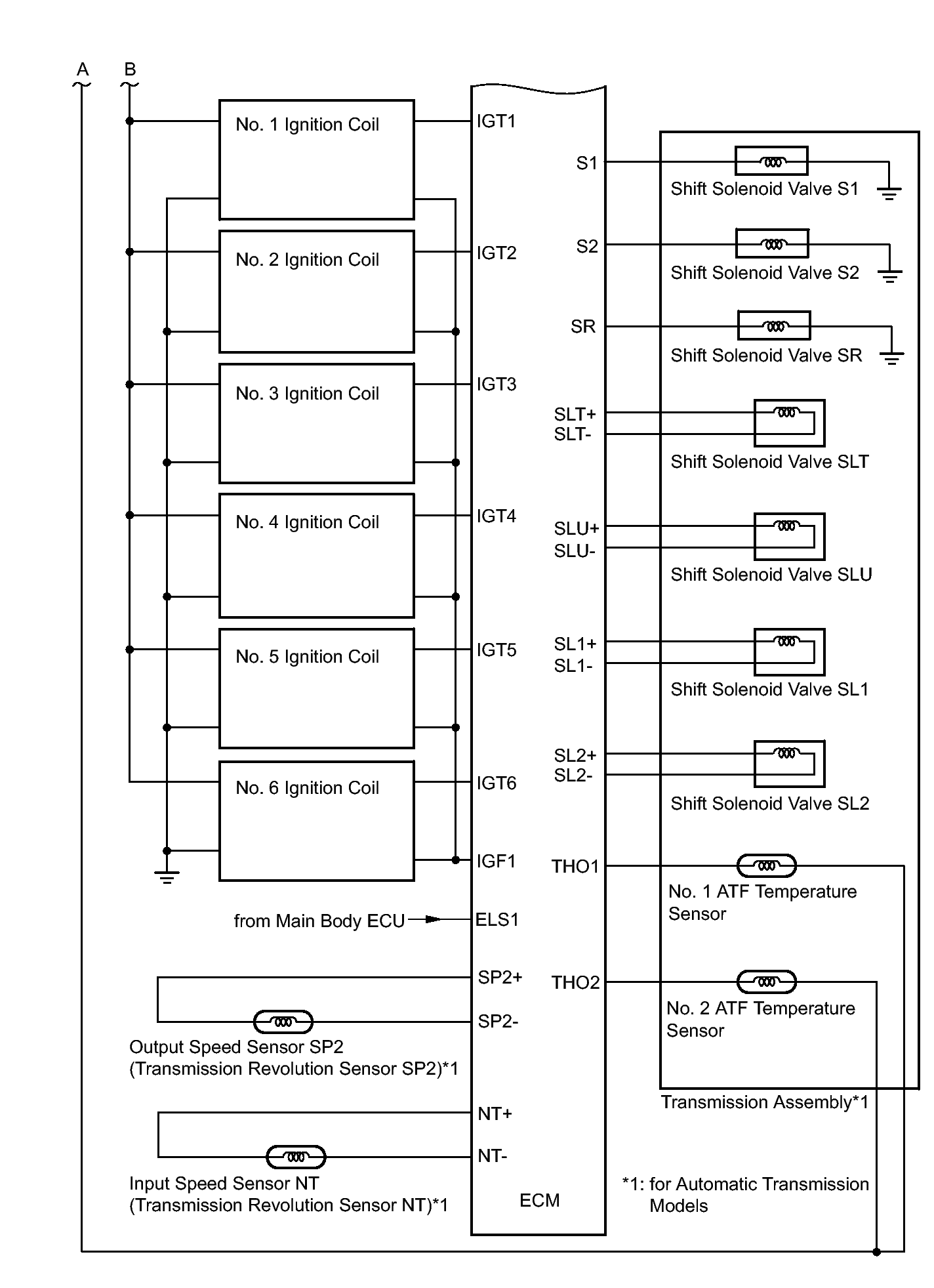

Fig 5: Engine Control System Circuit Diagram (5 Of 5)
GTY308648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
