Highlander Base, 2.7 A
›
Repair and Diagnosis (Single Page)
›
Engine Performance
›
Engine Control Systems
›
Emission Control System (1AR-FE) (Inspection)
›
Emission Control System
›
System Diagram
›
System Diagram
System Diagram

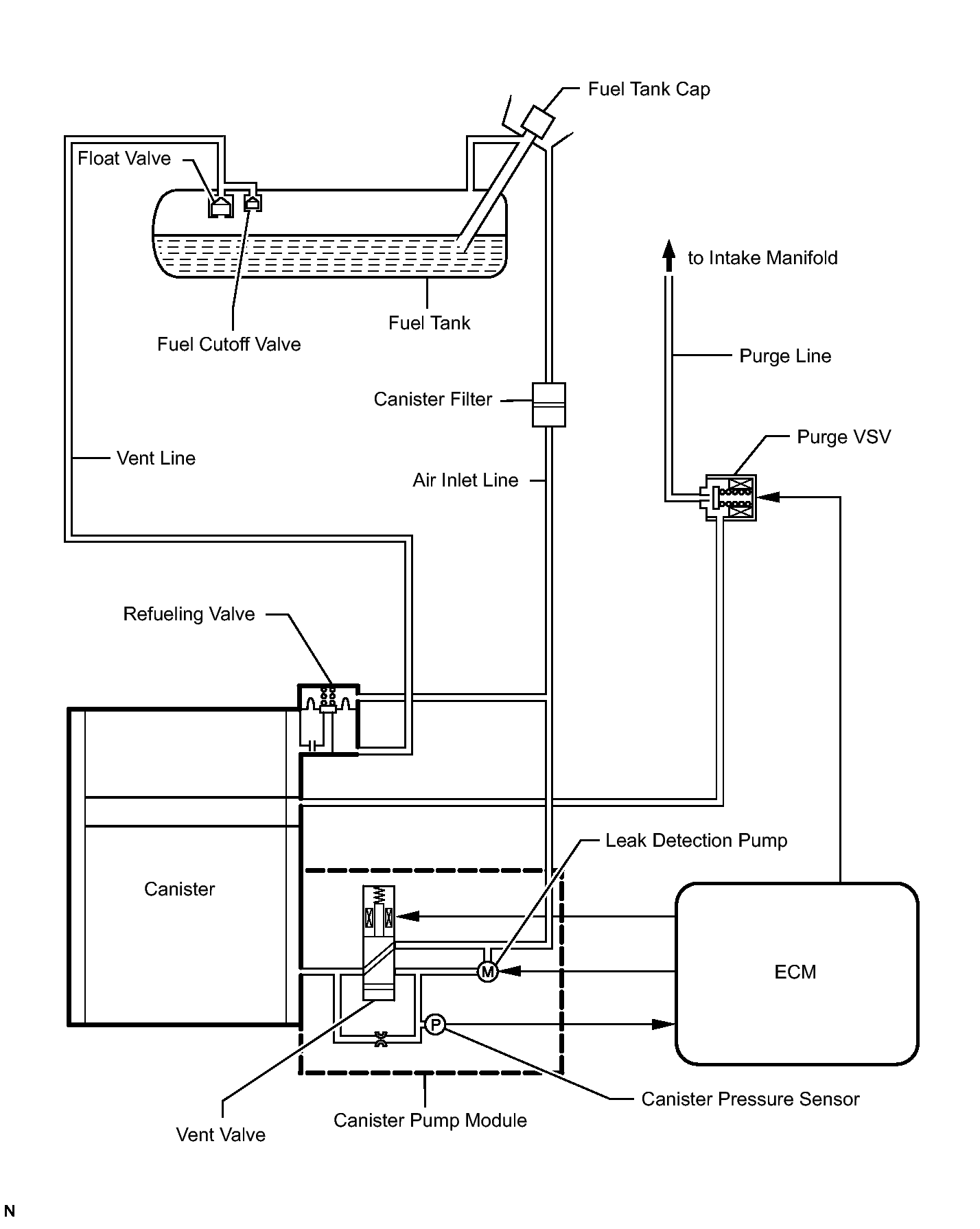

Fig 1: Emission Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

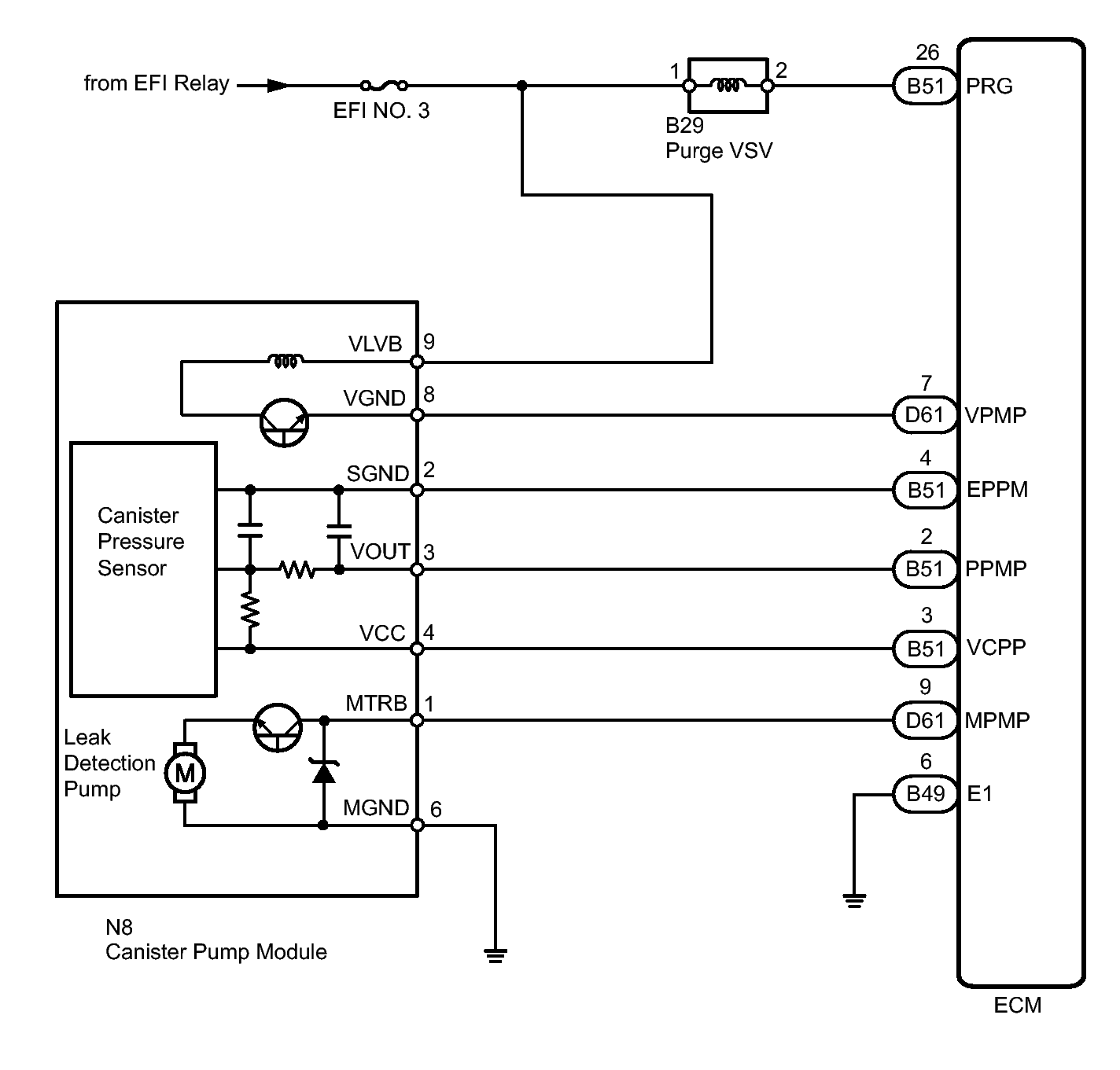

Fig 2: Emission Control System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
