Steering Column Assembly: Disassembly: Disassembly

NOTE:

When using a vise, do not overtighten it.

  1. REMOVE STEERING LOCK ACTUATOR ASSEMBLY (w/ Smart Key System)
    1. Secure the steering column assembly in a vise.
    2. Using a center punch, mark the center of the 2 tapered-head bolts.
    3. Using a 3 to 4 mm (0.12 to 0.16 in.) drill, drill a hole in each tapered-head bolt.
    4. Using a screw extractor, remove the 2 tapered-head bolts, and then remove the steering lock actuator assembly and the steering lock bracket from the steering column assembly.
      Fig 1: Removing Tapered-Head Bolts Using Screw Extractor
      GTY175872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE KEY CYLINDER LIGHT ASSEMBLY (w/o Engine Immobiliser System)
    1. Using a screwdriver, widen the claws hanging onto the upper bracket by approximately 1.0 mm (0.039 in.).
      Fig 2: Identifying Key Cylinder Light Assembly (Without Engine Immobilizer System)
      GTY204699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the key cylinder light assembly with the claw open.
      NOTE:

      Using excessive force may damage the case.

  3. REMOVE TRANSPONDER KEY AMPLIFIER (w/ Engine Immobiliser System)
    1. Using a screwdriver, widen the claws hanging onto the upper bracket by approximately 1.0 mm (0.039 in.).
      Fig 3: Removing Transponder Key Amplifier
      GTY180721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the transponder key amplifier with the claw open.
      NOTE:

      Using excessive force may damage the case.

  4. REMOVE STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY (w/o Smart Key System)
    1. Secure the steering column assembly in a vise.
    2. Using a center punch, mark the center of the 2 tapered-head bolts.
    3. Using a 3 to 4 mm (0.12 to 0.16 in.) diameter drill bit, drill a hole in each tapered-head bolt.
    4. Using a screw extractor, remove the 2 tapered-head bolts, and then remove the steering column upper with switch bracket assembly and the steering lock bracket from the steering column assembly.
      Fig 4: Removing Steering Column Assembly And Tapered-Head Bolts
      GTY204021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE IGNITION SWITCH LOCK CYLINDER ASSEMBLY (w/o Smart Key System)
    1. Turn the ignition switch lock cylinder assembly to the ACC position.
    2. Insert a screwdriver into the hole of the steering column upper with switch bracket assembly as shown in the illustration. Pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column upper with switch bracket assembly.

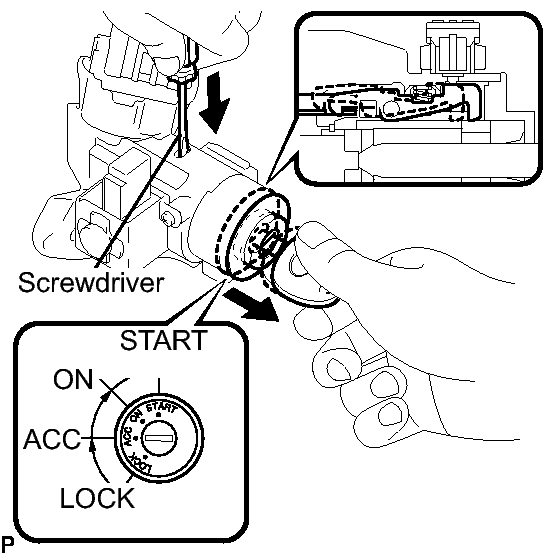

      Fig 5: Pushing Screwdriver Into Hole Of Steering Column Upper With Switch Bracket Assembly
      GTY200843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure to pull the ignition switch lock cylinder assembly until its claw contacts the stopper of the steering column upper with switch bracket assembly. Failure to do so will affect later work operations.

    3. Insert a screwdriver into the hole of the steering column upper with switch bracket assembly. Push the screwdriver downward as shown in the illustration to disengage the claw of the ignition switch lock cylinder assembly, and pull out the ignition switch lock cylinder assembly.

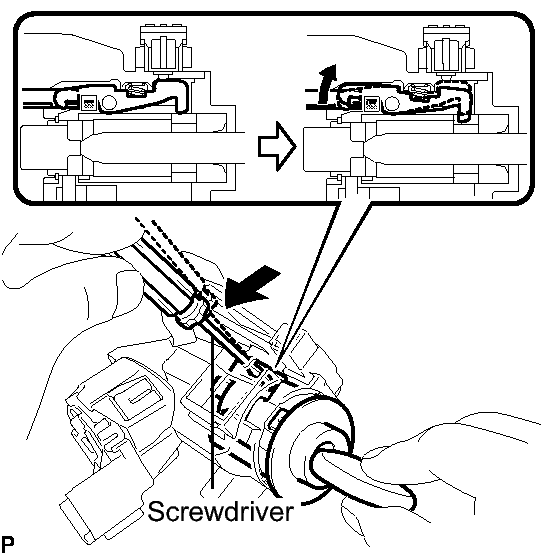

      Fig 6: Inserting Screwdriver Into Hole Of Steering Column Upper With Switch Bracket Assembly
      GTY200844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE UN-LOCK WARNING SWITCH ASSEMBLY (w/o Smart Key System)
    1. Remove the un-lock warning switch assembly by pushing up the center part and releasing the 2 claws.
      Fig 7: Identifying Center Part And Claws
      GTY204019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE KEY INTERLOCK SOLENOID (w/o Smart Key System)
    1. Remove the 2 screws and the key interlock solenoid from the steering lock sub-assembly.
      Fig 8: Identifying Key Interlock Solenoid And Screws
      GTY204020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY (w/o Smart Key System)
    1. Disengage the 2 claws and remove the ignition or starter switch assembly from the steering lock sub-assembly.
      Fig 9: Identifying Ignition Or Starter Switch Assembly Claws
      GTY200835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
