Back Window Lock: Inspection: Inspection

INSPECT BACK WINDOW LOCK ASSEMBLY

Check operation of the back window lock assembly.

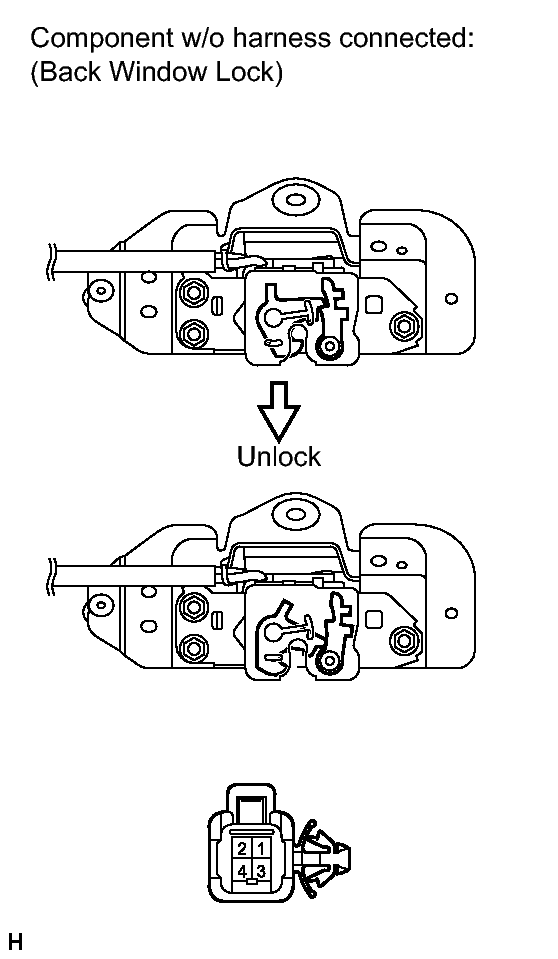

Fig 1: Identifying Back Window Lock Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Apply the battery voltage to the window lock motor and check the operation of the window lock motor.

OK:

Measurement Condition	Specified Condition
Battery positive (+) → 3 Battery negative (-) → 4	Unlock

If the result is not as specified, replace the back window lock assembly.

Check operation of the back window courtesy switch.

Fig 2: Identifying Back Window Lock Connector Terminals

Measure the resistance according to the value(s) in the table below.

Standard resistance

Tester Connection	Condition	Specified Condition
1 - 2	Lock	10 kΩ or higher
1 - 2	Unlock	Below 1 Ω

If the result is not as specified, replace the back window lock assembly.
