Fuel Tank Pressure Sensor: Removal: Removal

Refer to REMOVAL

1. Disconnect the connector.

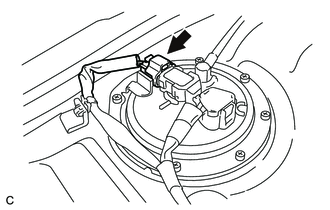

   Fig 1: Locating Fuel Tank Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the cover.

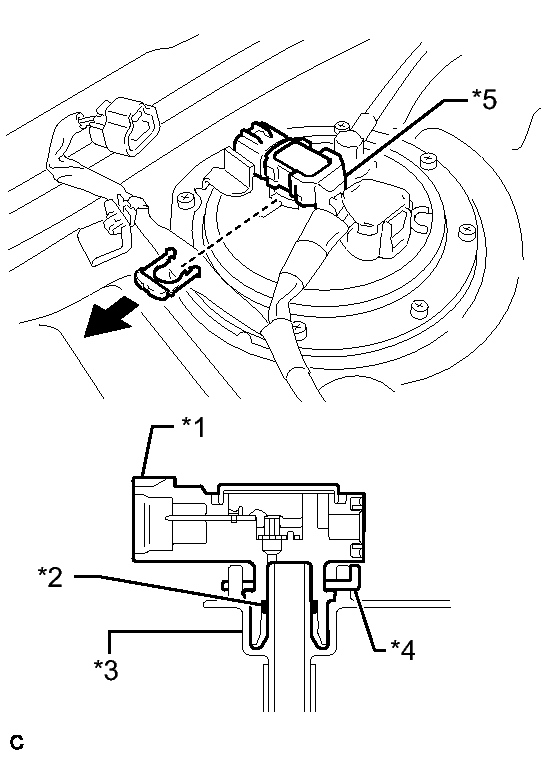

   Fig 2: Identifying Fuel Tank Pressure Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Fuel Tank Pressure Sensor
   *2	O-Ring
   *3	Fuel Suction Plate
   *4	Tube Joint Clip
   *5	Cover

3. Remove the tube joint clip and pull out the vapor pressure sensor assembly.
   NOTE:

   • Before this operation, check that there is no dirt or other foreign objects around the connector. Clean the connector if necessary.
   • It is necessary to prevent mud or dirt from entering the connector. If mud or dirt gets in the connector, the O-ring may not seal properly.
   • Do not use any tools for this operation.
   • If the fuel suction plate and vapor pressure sensor are stuck, carefully try wiggling or pushing and pulling on the vapor pressure sensor to release it. Pull the sensor off the suction plate carefully.
