Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.

  Fig 1: Identifying Vehicle Identification Number And Certification Label Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  Vehicle Identification Number

  B

  Certification Label
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

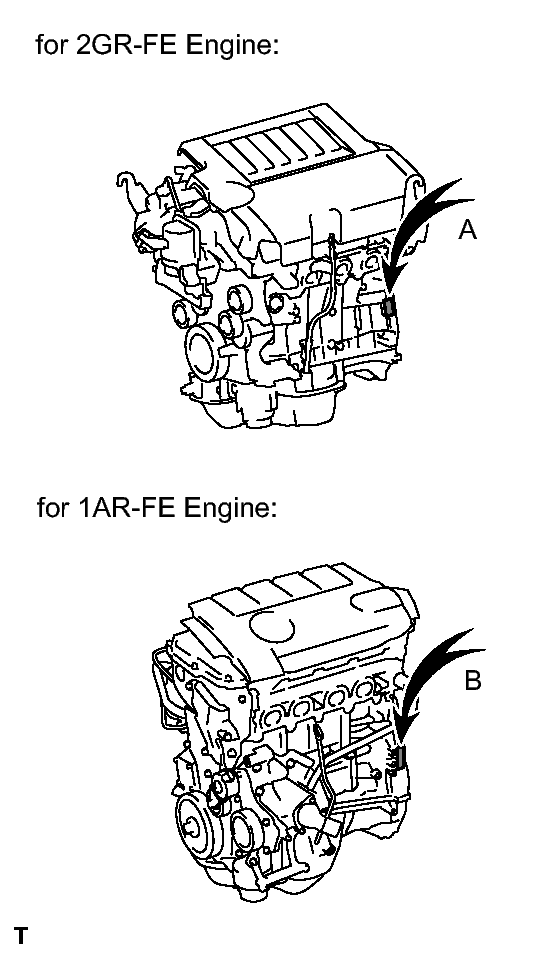

  Fig 2: Identifying 2GR-FE Engine Serial Number And 1AR-FE Engine Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  2GR-FE Engine Serial Number

  B

  1AR-FE Engine Serial Number
2. The transaxle serial number is stamped on the case as shown in the illustration.

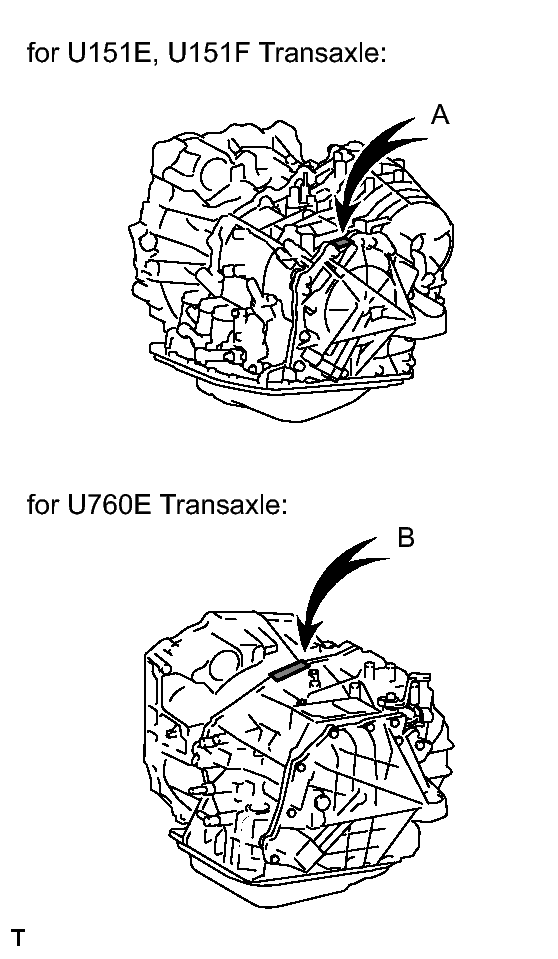

  Fig 3: Identifying U151E, E151F Transaxle Serial Number And U760E Transaxle Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  U151E, U151F Transaxle Serial Number

  B

  U760E Transaxle Serial Number
