System Diagram

  1. MOST Communication Line

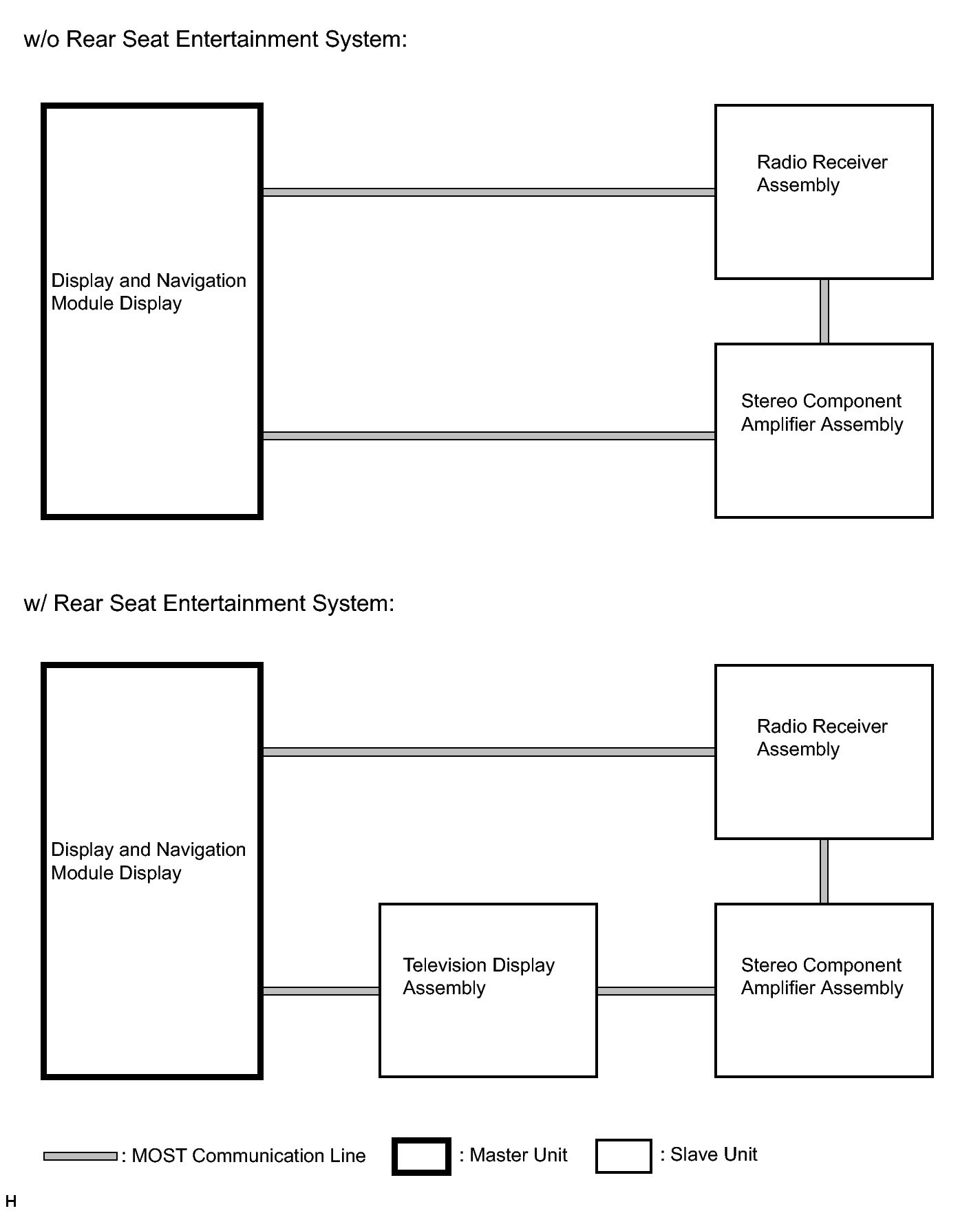

    Fig 1: Identifying Navigation System Diagram (1 Of 3)
    GTY214459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. AVC-LAN Communication Line
    Fig 2: Identifying Navigation System Diagram (2 Of 3)
    GTY216434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Others

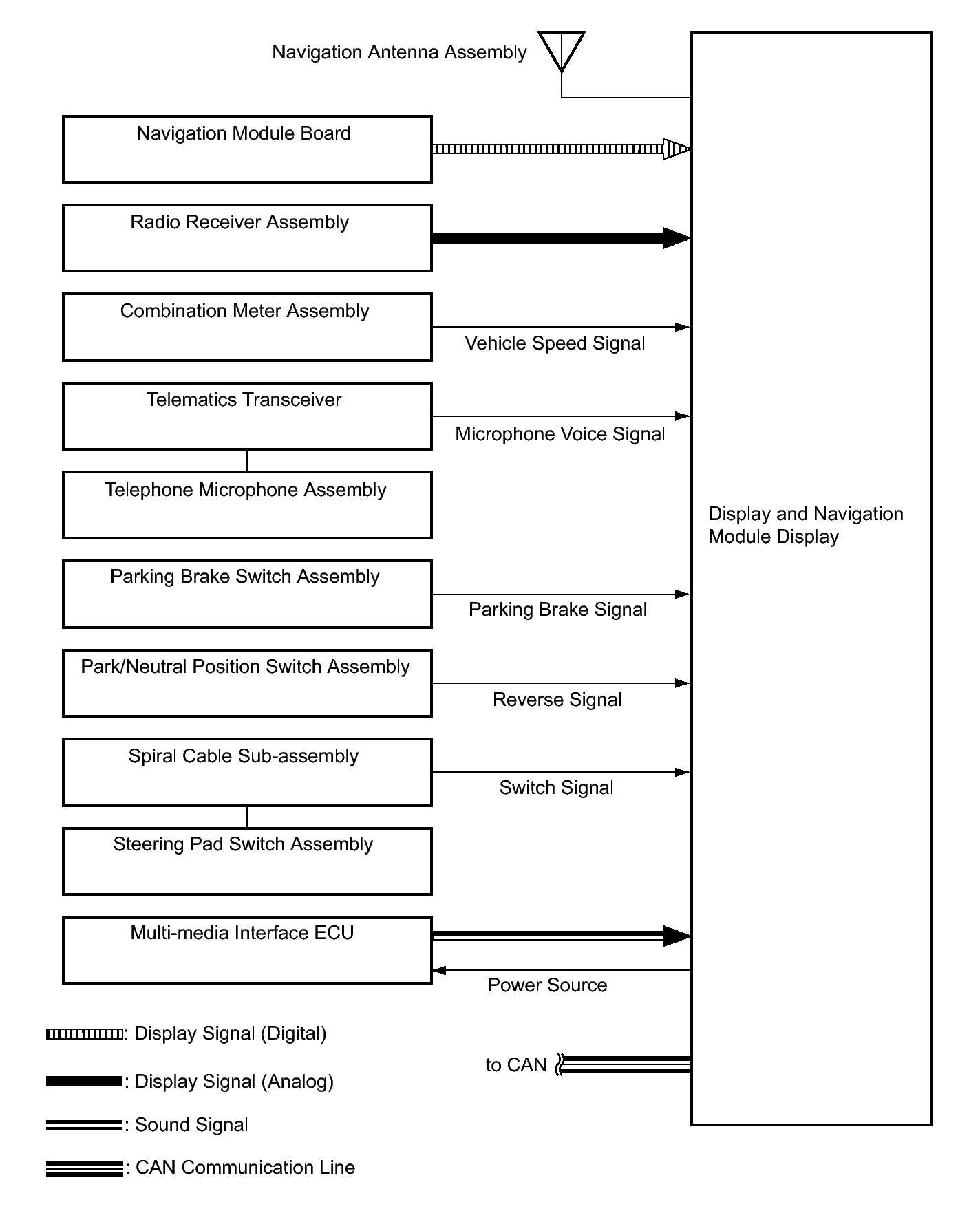

    Fig 3: Identifying Navigation System Diagram (3 Of 3)
    GTY215106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
