Id Code Box: Removal: Removal

REMOVE AIR CONDITIONING UNIT
1. Remove the air conditioning unit, refer to REMOVAL .
REMOVE ID CODE BOX (IMMOBILISER CODE ECU)
1. Disconnect the connector and detach the clamp.
2. Remove the screw and ID code box (immobiliser code ECU).

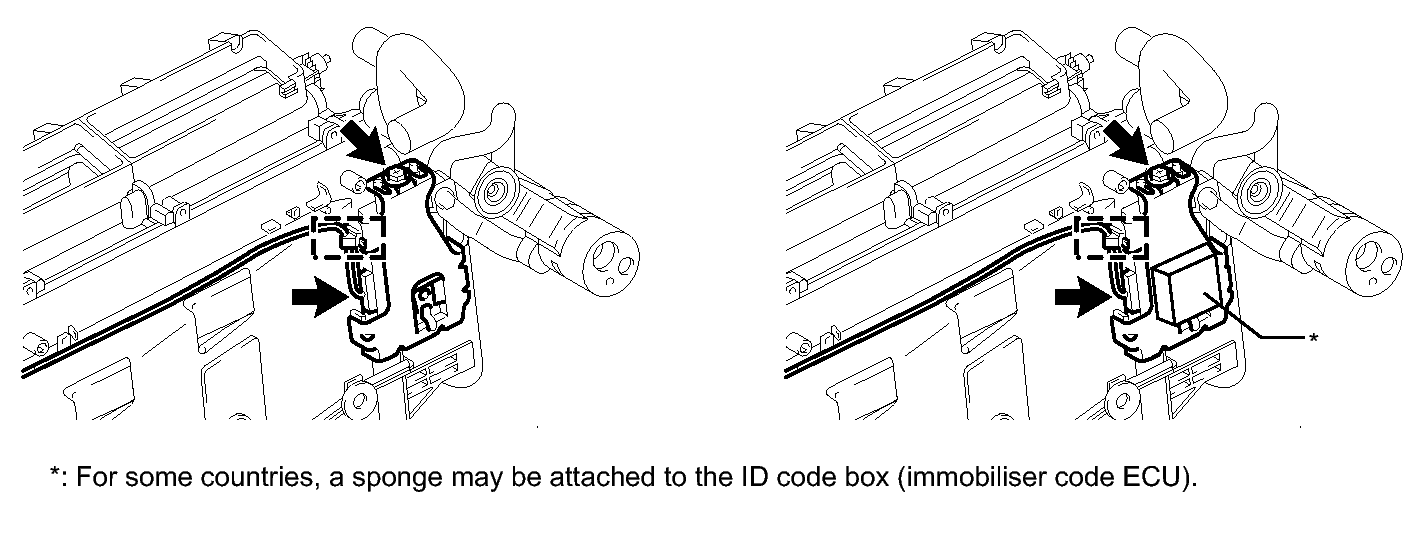

  Fig 1: Identifying ID Code Box Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
