Condenser Fan: Notes

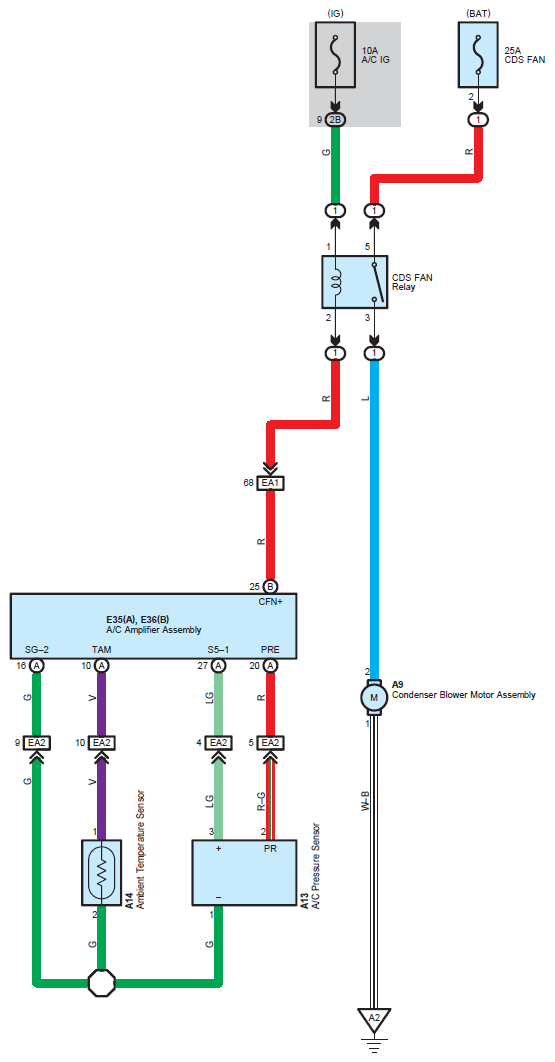

Fig 1: Condenser Fan System Wiring Diagram

G07116179

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
