Cool Box: Notes

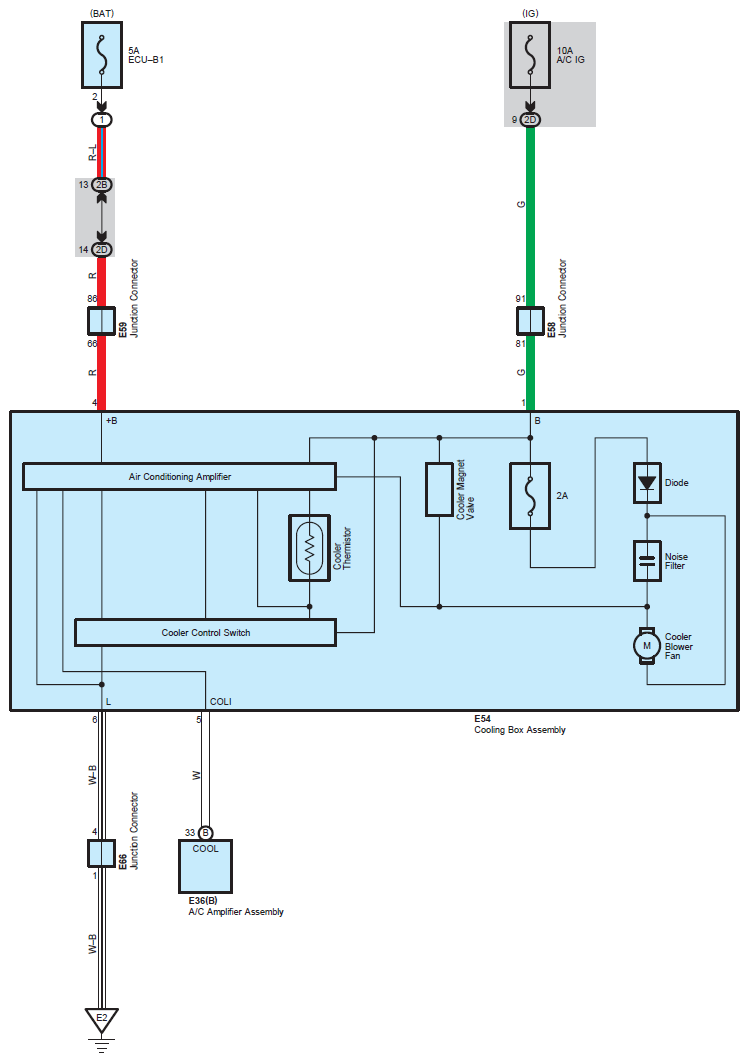

Fig 1: Cool Box System Wiring Diagram
G07116194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
