Power Source: Notes — 2011 Toyota Land Cruiser Service Manual ~ FixVault

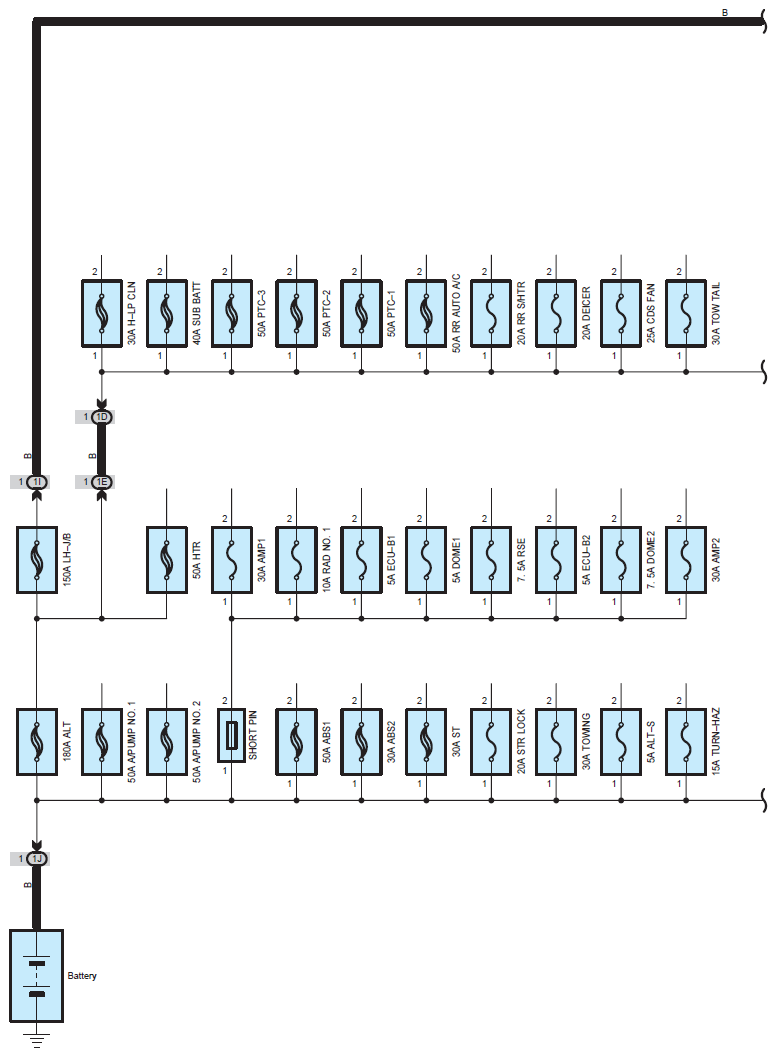

Fig 1: Power Source System Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

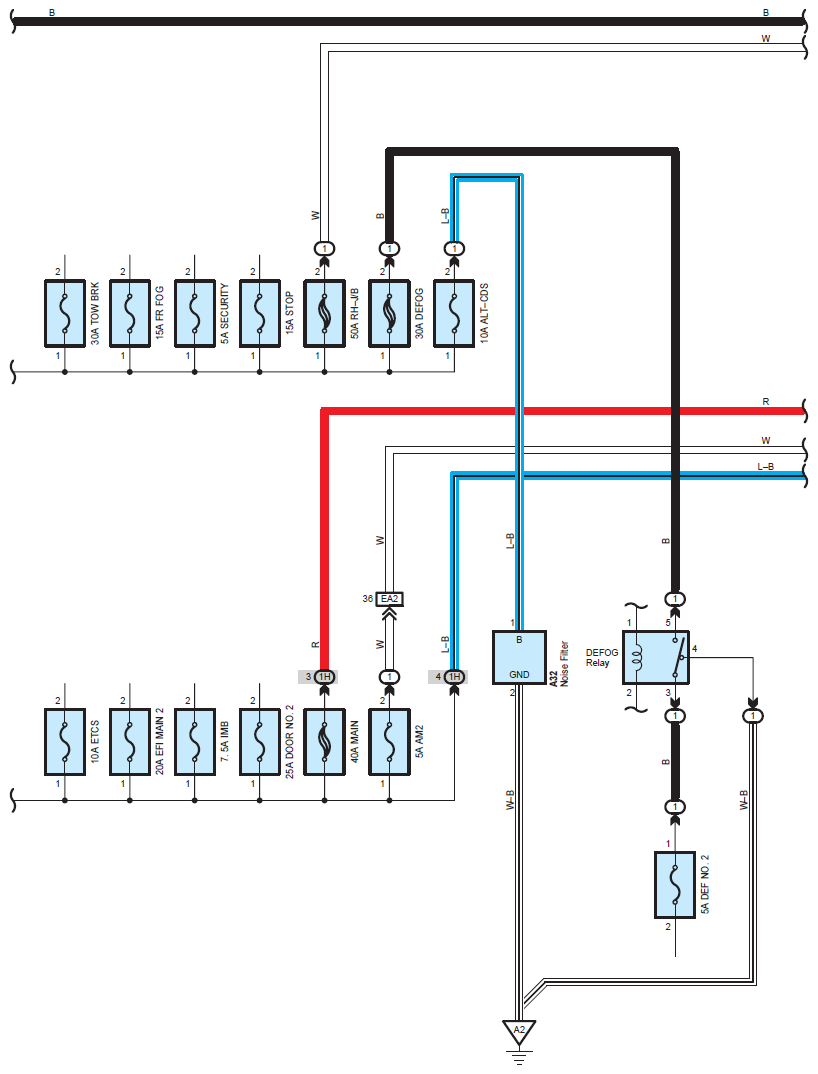

Fig 2: Power Source System Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

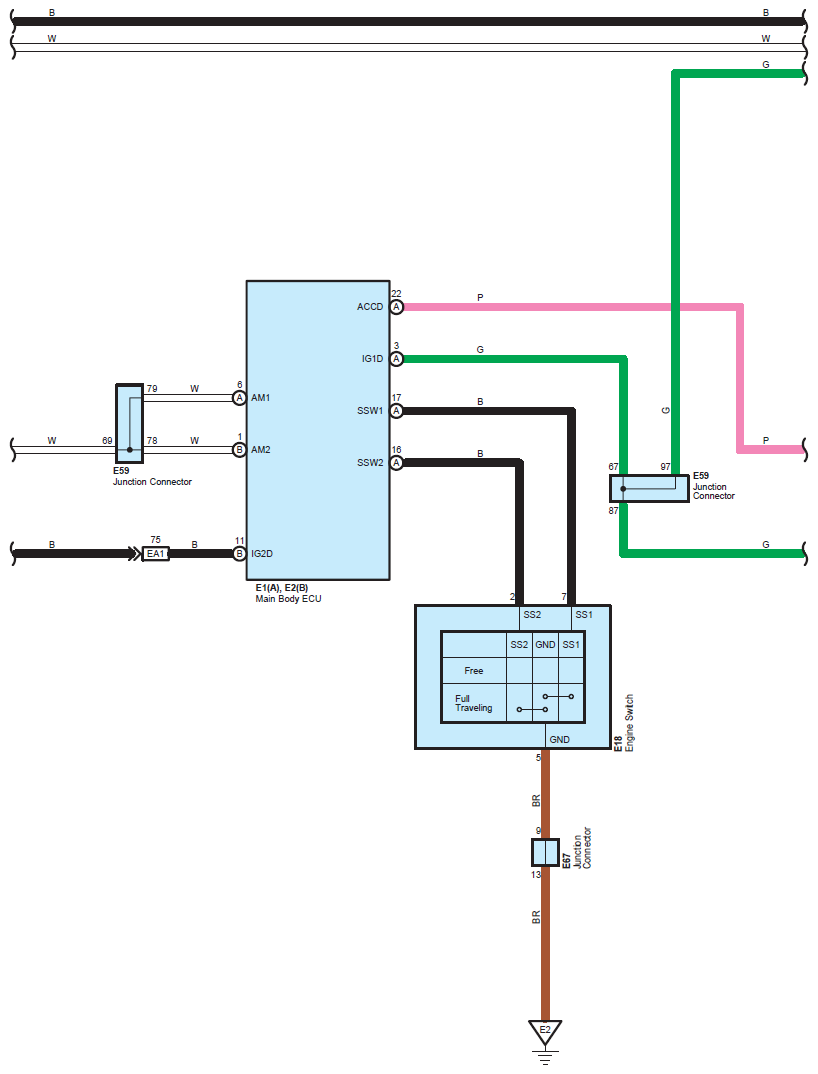

Fig 3: Power Source System Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

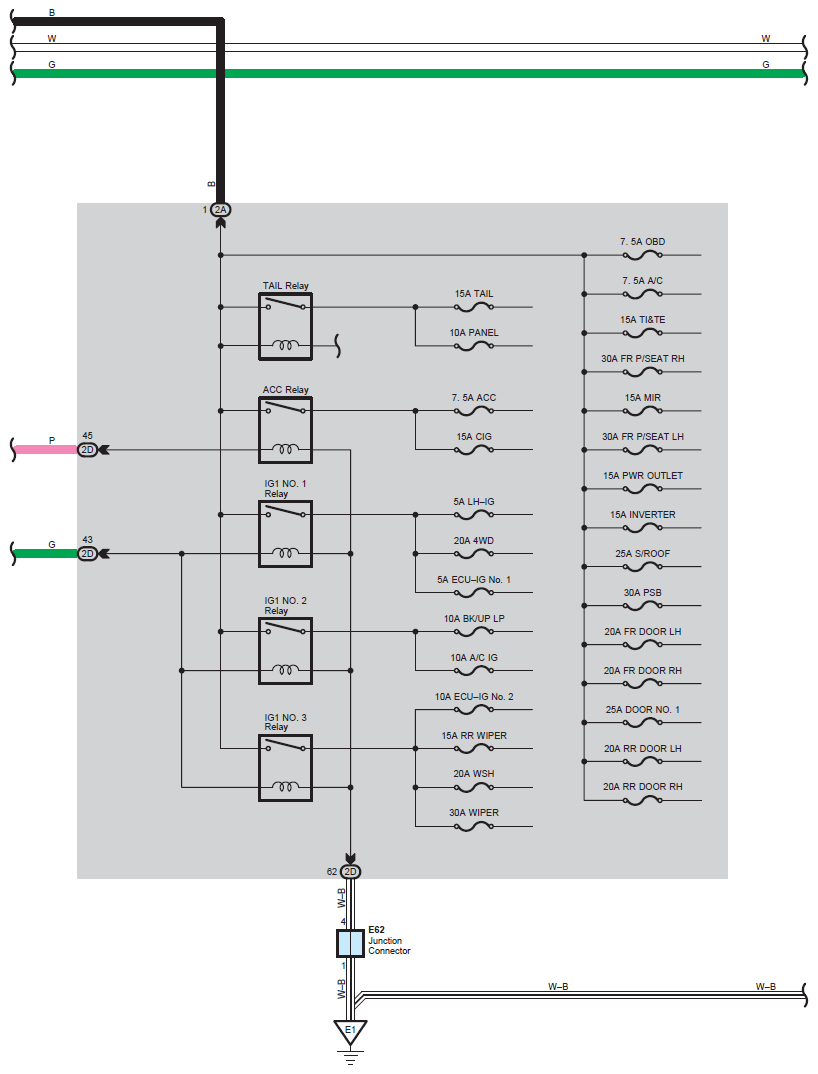

Fig 4: Power Source System Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

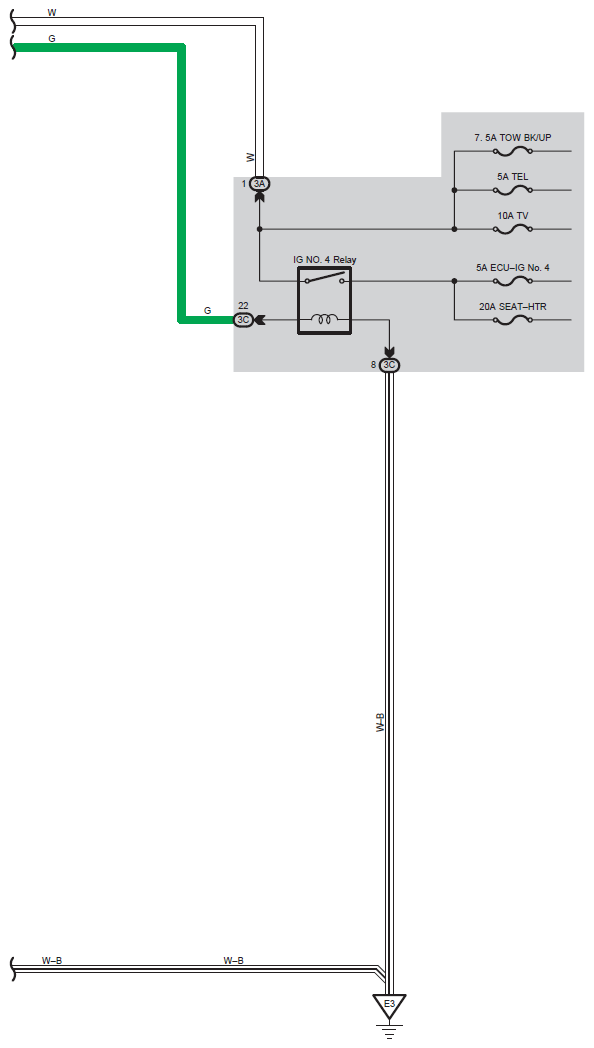

Fig 5: Power Source System Wiring Diagram (5 Of 6)

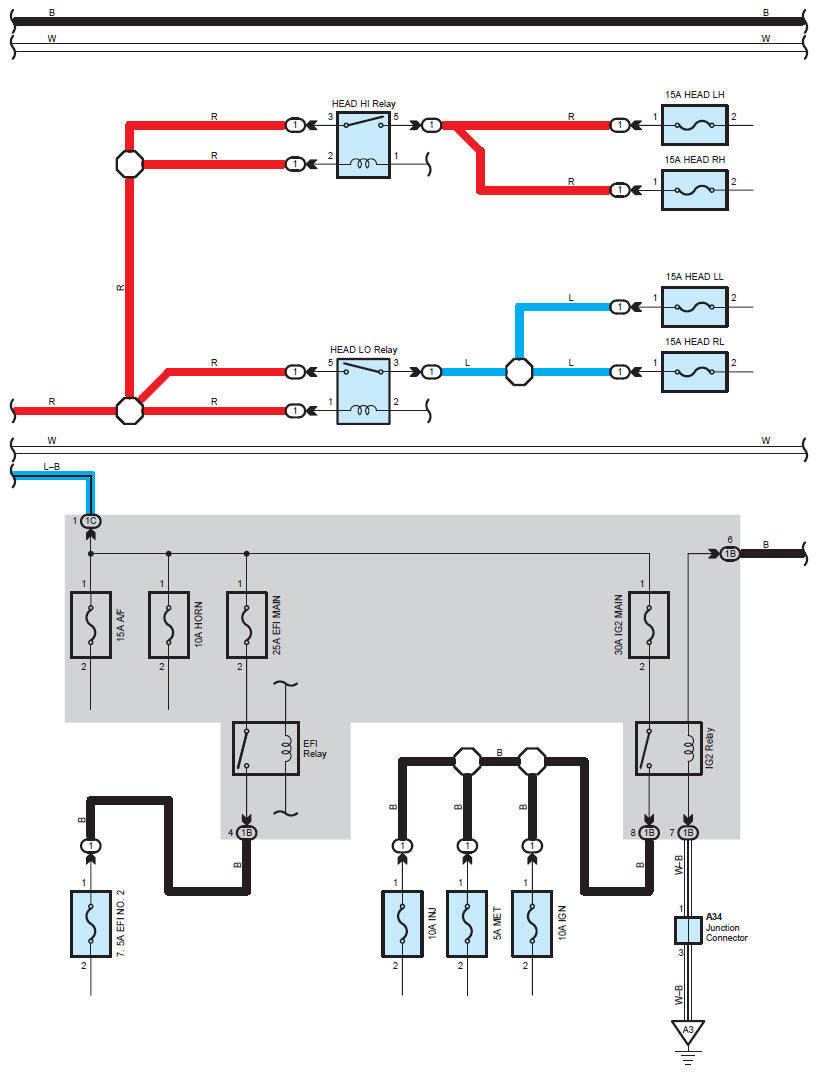

Fig 6: Power Source System Wiring Diagram (6 Of 6)
