Rear Window Defogger and Mirror Heater: Notes

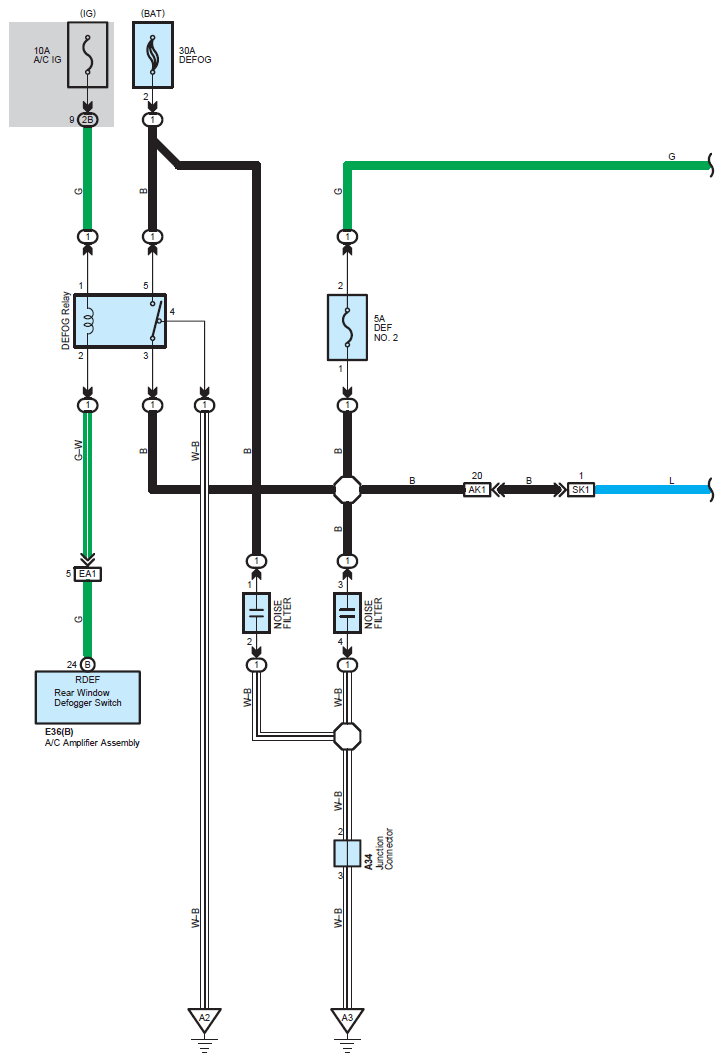

Fig 1: Rear Window Defogger And Mirror Heater System Wiring Diagram (1 Of 2)
G07116122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

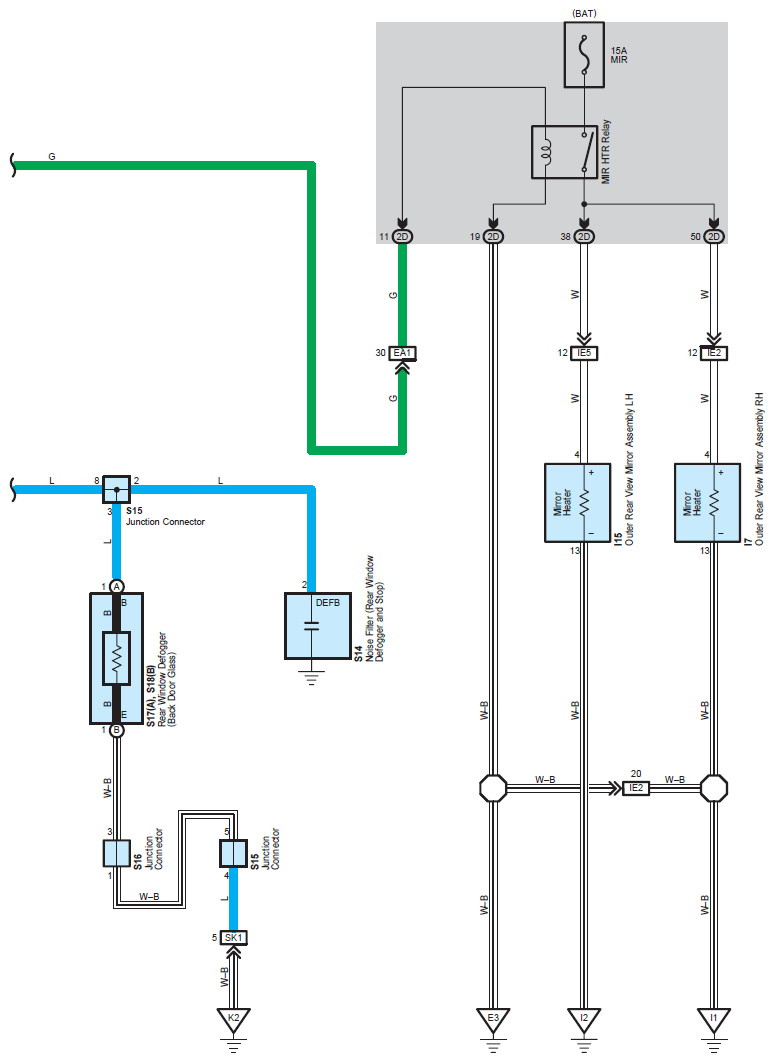

Fig 2: Rear Window Defogger And Mirror Heater System Wiring Diagram (2 Of 2)
G07116123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
