OEM System Circuits
›
Seat Heater (Rear)
›
Notes
Seat Heater (Rear): Notes

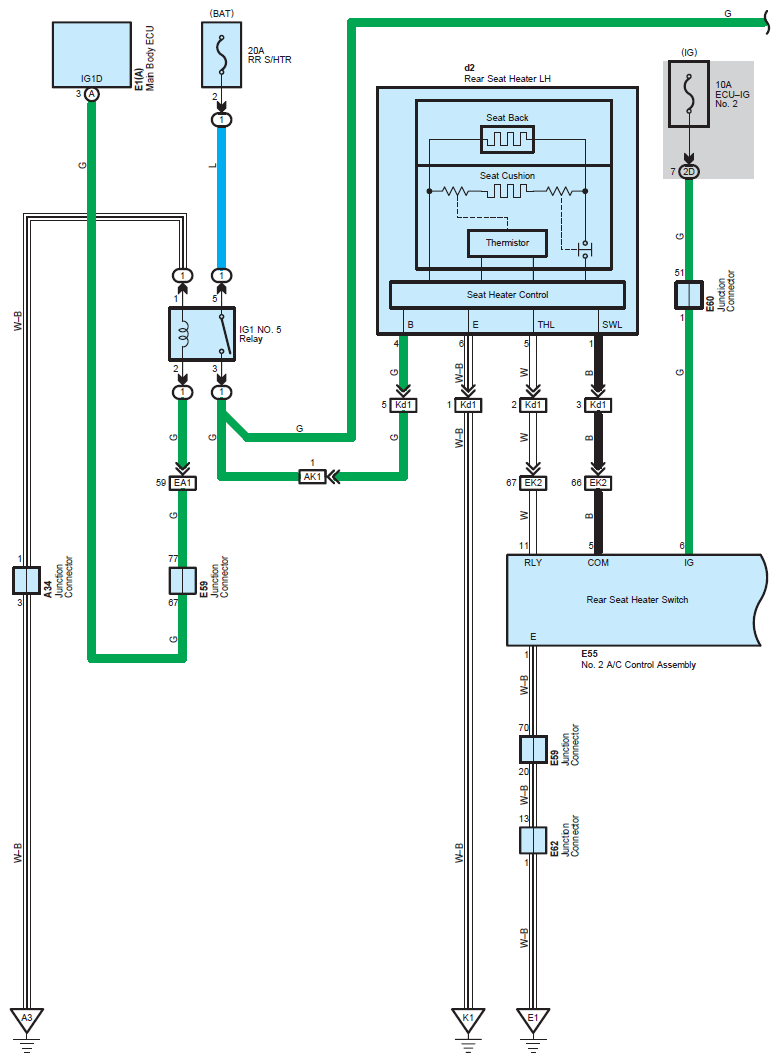

Fig 1: Seat Heater (Rear) Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

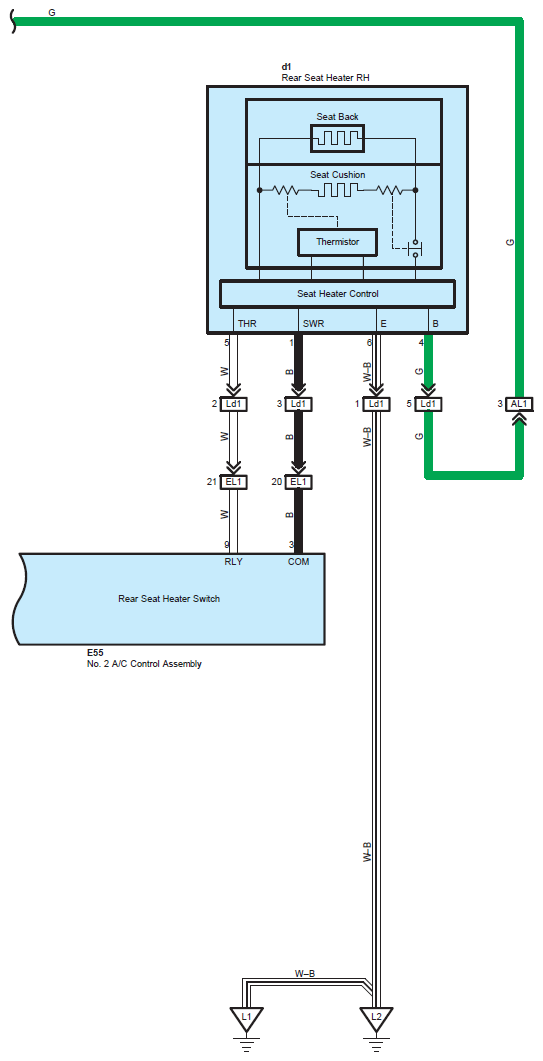

Fig 2: Seat Heater (Rear) Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
