Shift Lock: Notes

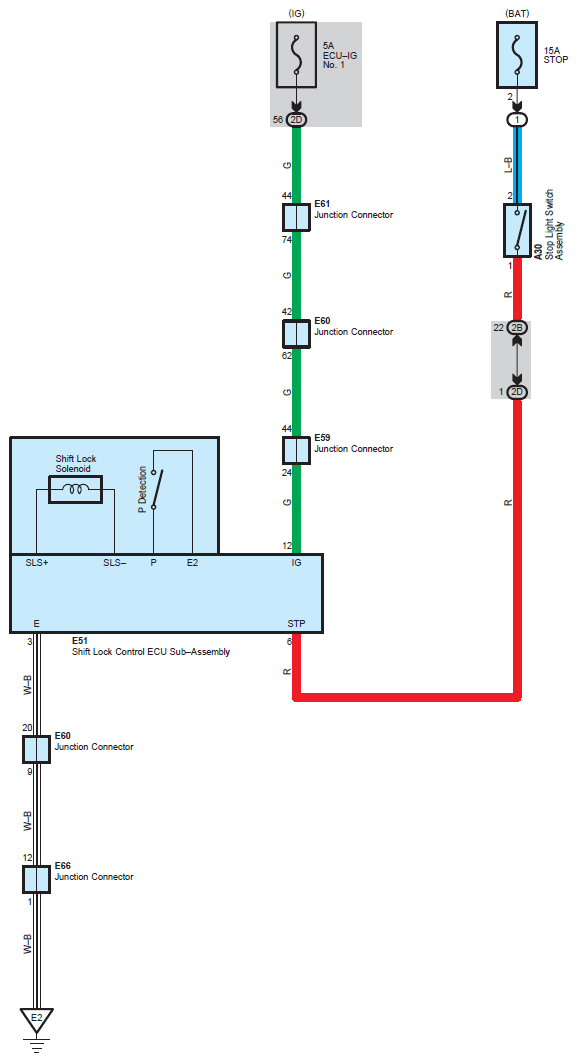

Fig 1: Shift Lock System Wiring Diagram

G07116079

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
