Tire Pressure Warning System: Notes

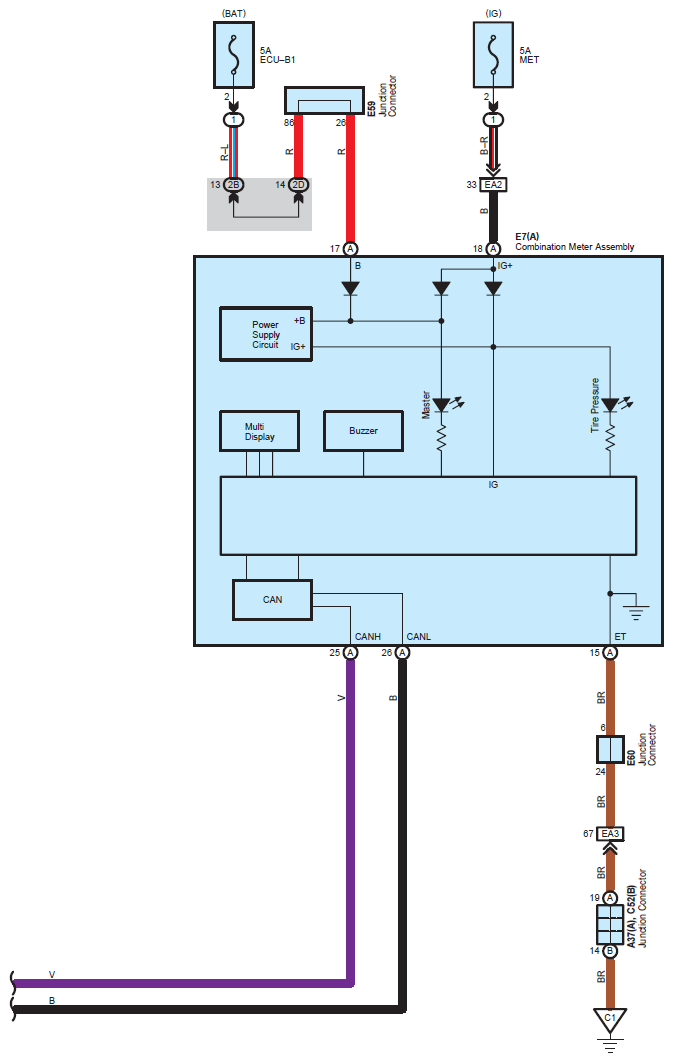

Fig 1: Tire Pressure Warning System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

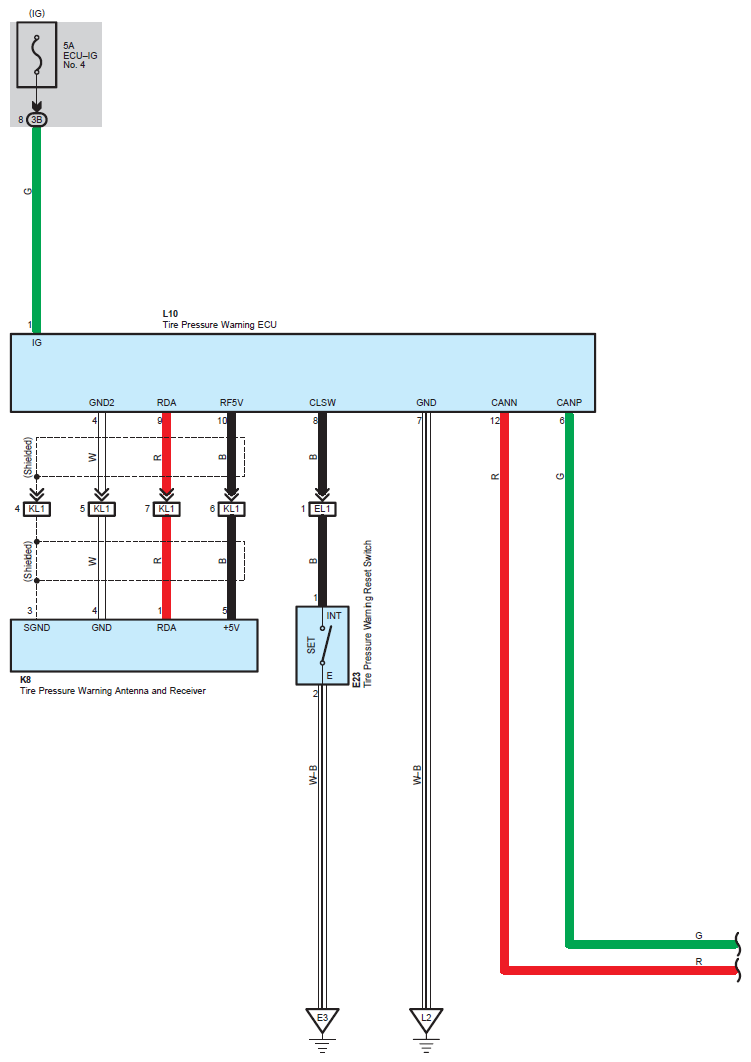

Fig 2: Tire Pressure Warning System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

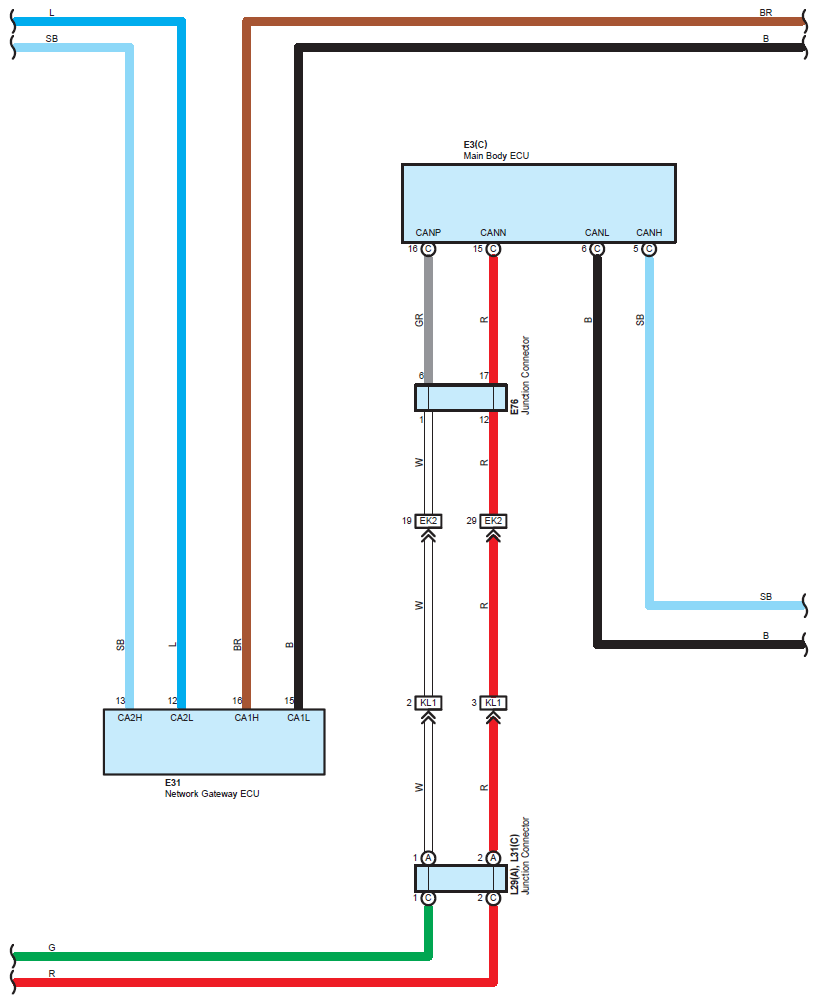

Fig 3: Tire Pressure Warning System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

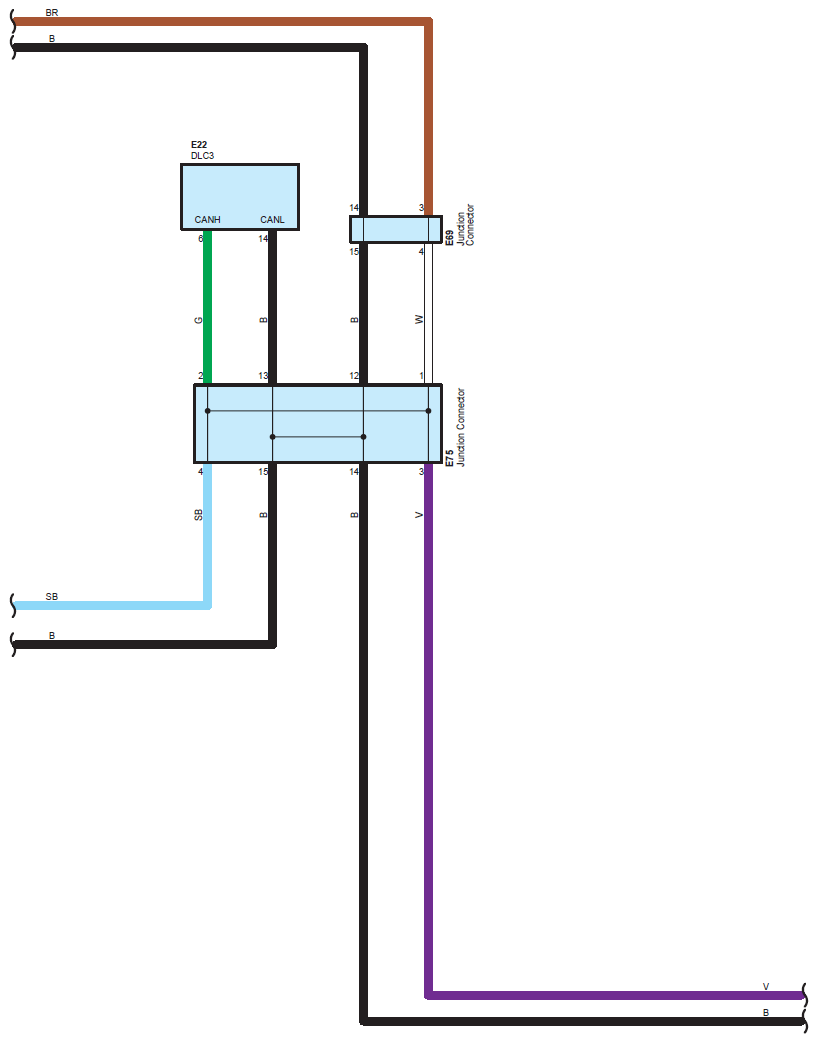

Fig 4: Tire Pressure Warning System Wiring Diagram (4 Of 5)

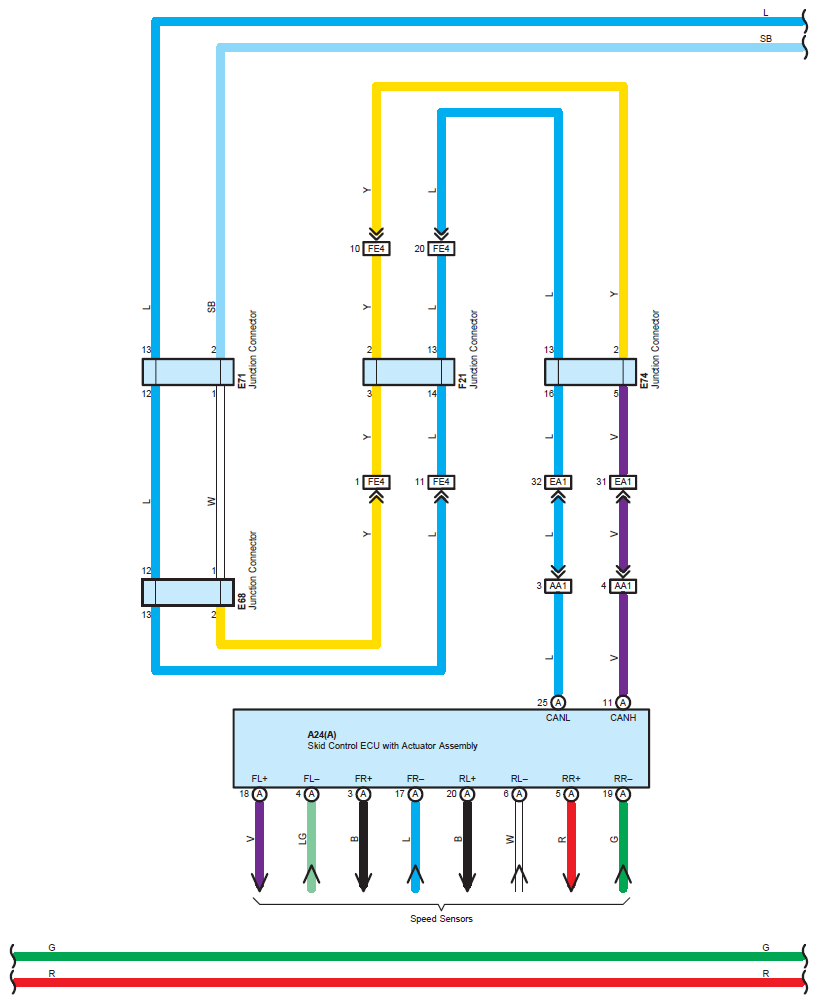

Fig 5: Tire Pressure Warning System Wiring Diagram (5 Of 5)
