Fuel Pressure Regulator: Components: Illustration

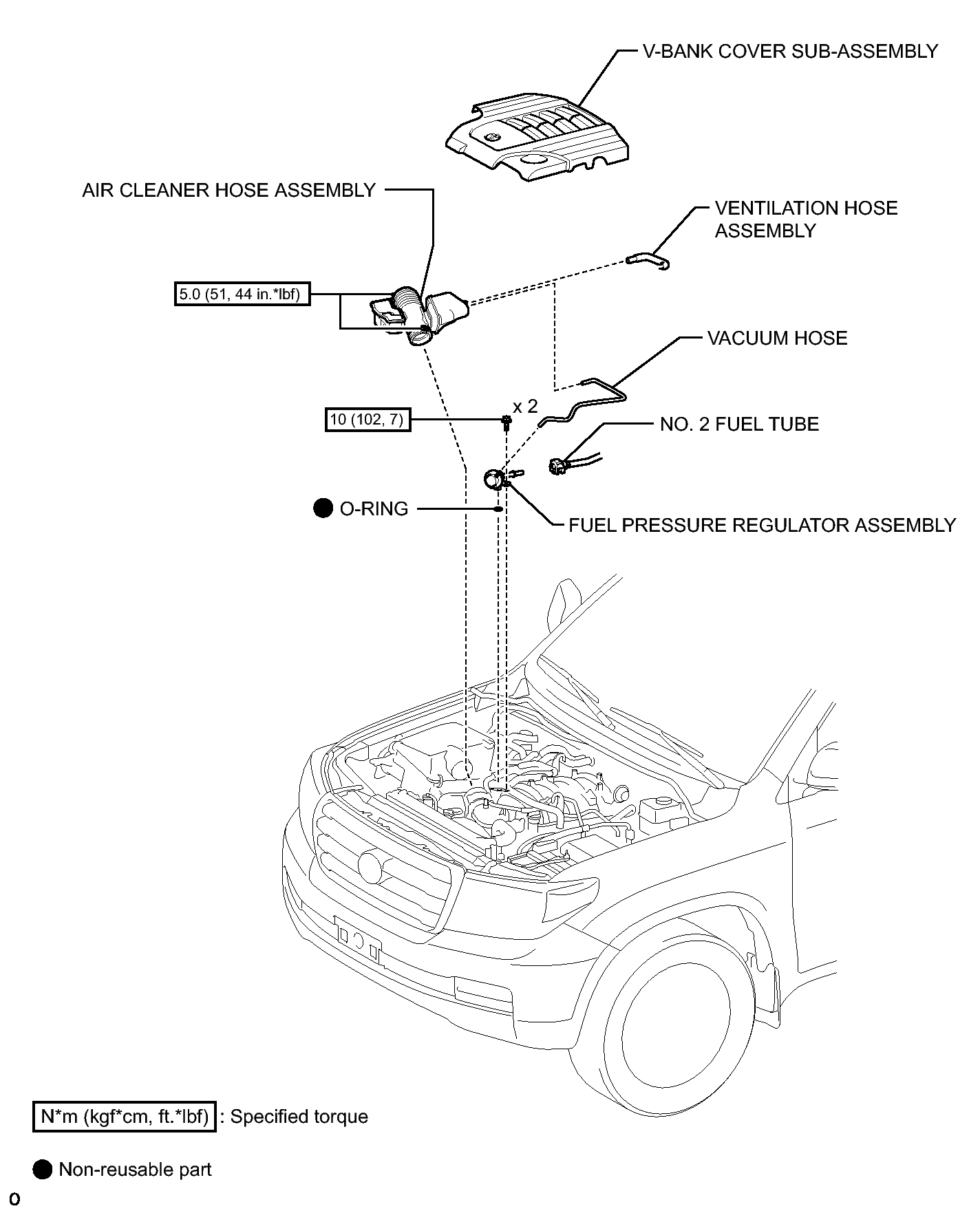

Fig 1: Identifying Fuel Pressure Regulator Components With Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
