Steering Column Assembly: Reassembly: Reassembly

INSTALL MULTIPLEX TILT AND TELESCOPIC ECU

Fig 1: Locating Multiplex Tilt And Telescopic ECU Connectors And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the ECU with the 2 screws.
  Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)
2. Connect the 2 connectors.
  NOTE:
  The connectors on both ends of the wire harness between the telescopic motor and ECU are the same shape. When connecting them, connect the connectors of the same color.
INSTALL STEERING LOCK ACTUATOR ASSEMBLY

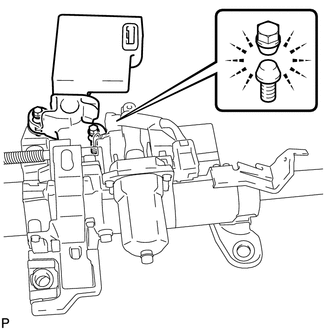

Fig 2: Tightening Tapered-Head Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.
2. Tighten the 2 tapered-head bolts until the bolt heads break off.
