Cigarette Lighter or Power Outlet (12V)
›
Notes
Cigarette Lighter or Power Outlet (12V): Notes

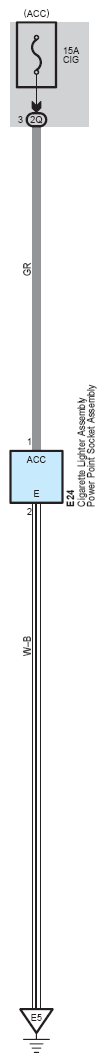

Fig 1: Cigarette Lighter Or Power Outlet (12V) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
