Cooling Fan (2AZ-FE): Notes

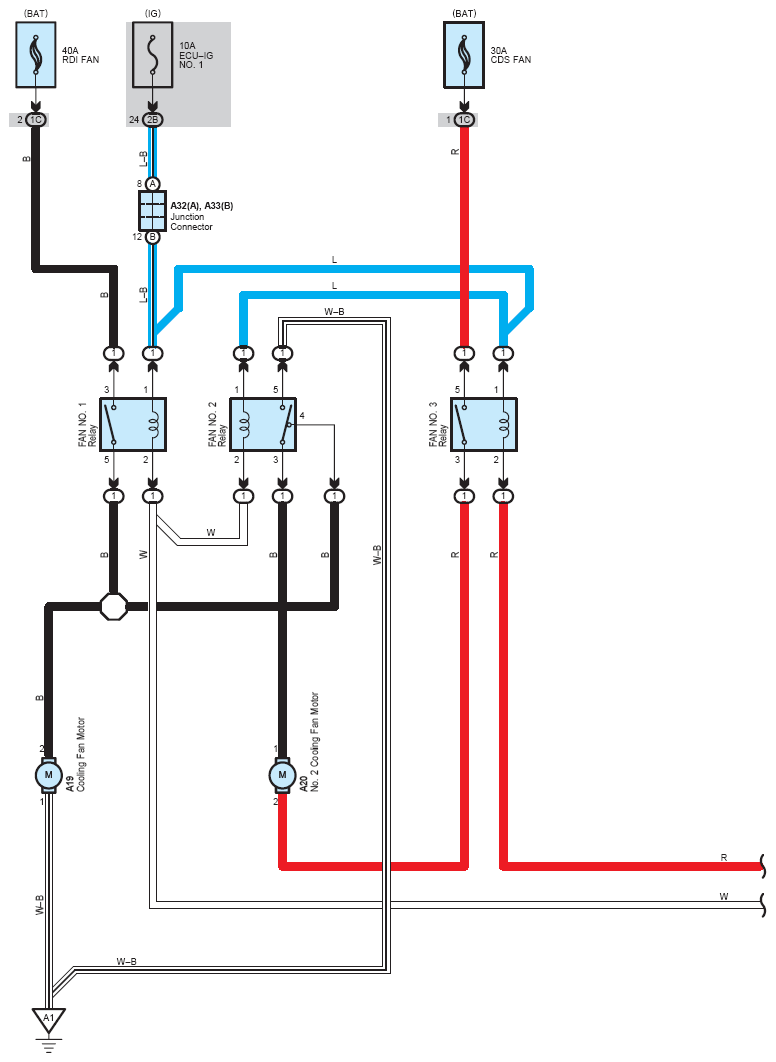

Fig 1: Cooling Fan (2AZ-FE) System Wiring Diagram (1 Of 5)
G07114343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

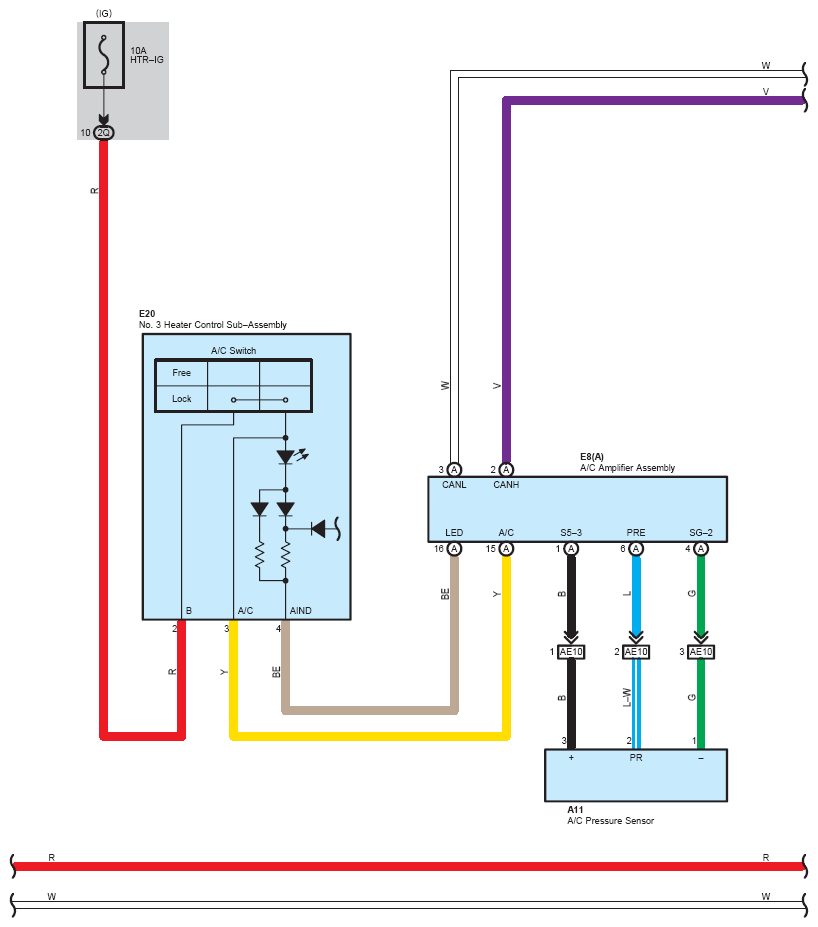

Fig 2: Cooling Fan (2AZ-FE) System Wiring Diagram (2 Of 5)
G07114344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

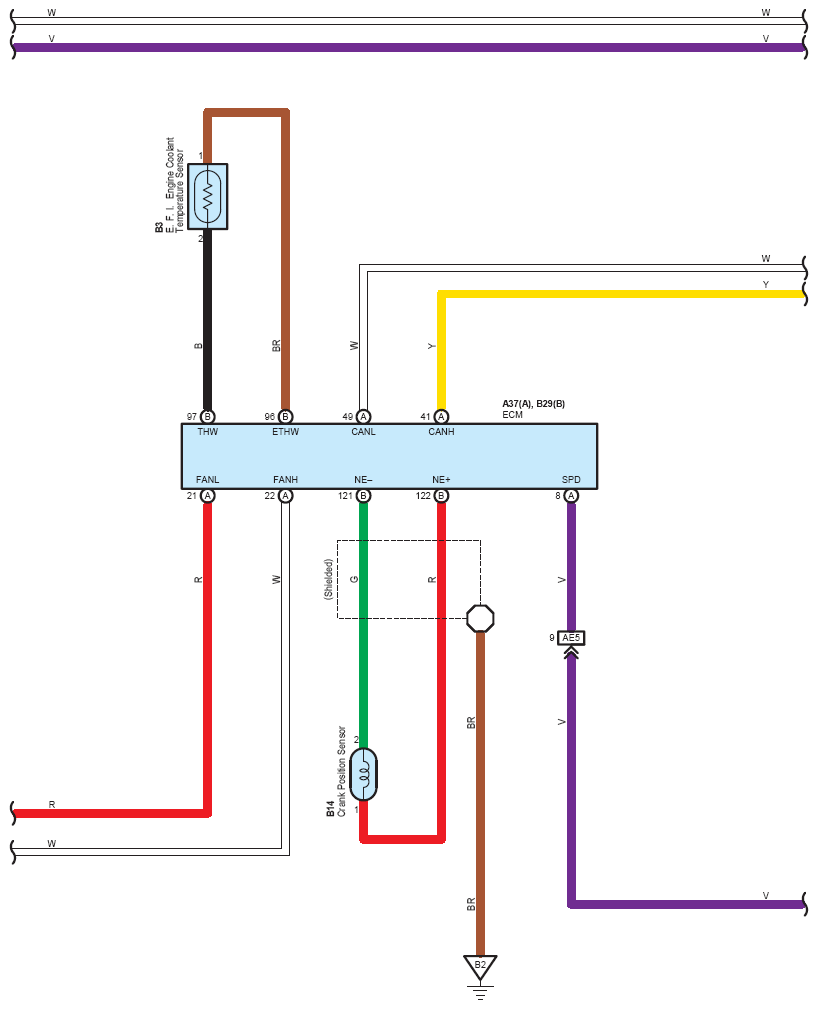

Fig 3: Cooling Fan (2AZ-FE) System Wiring Diagram (3 Of 5)
G07114345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

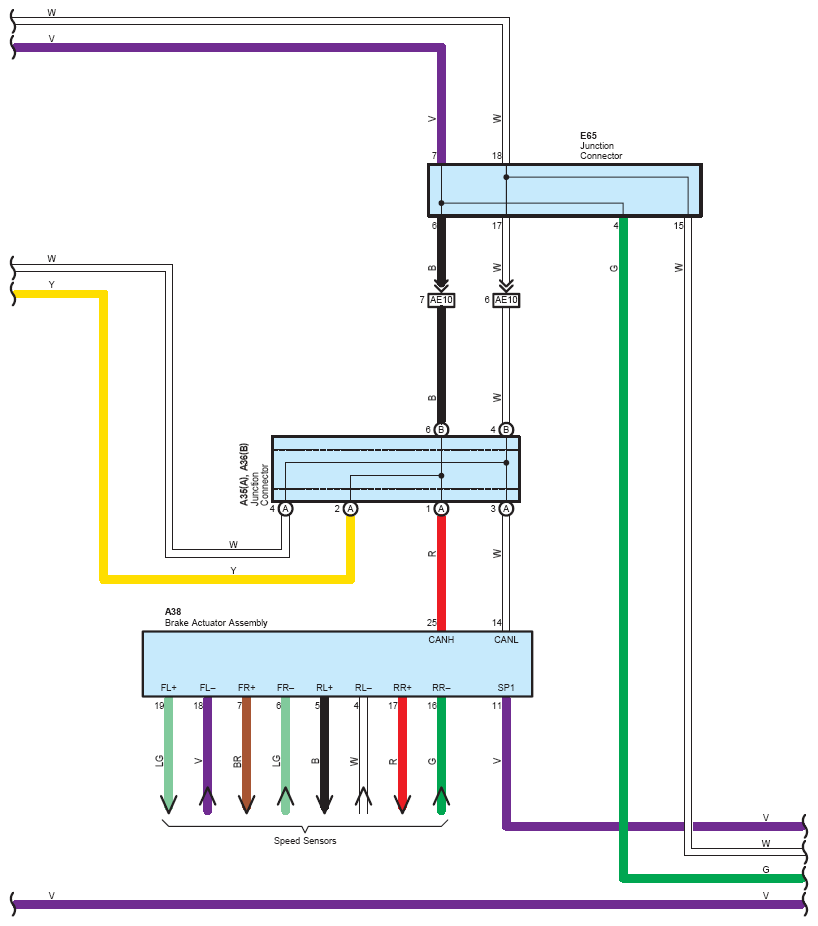

Fig 4: Cooling Fan (2AZ-FE) System Wiring Diagram (4 Of 5)
G07114346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

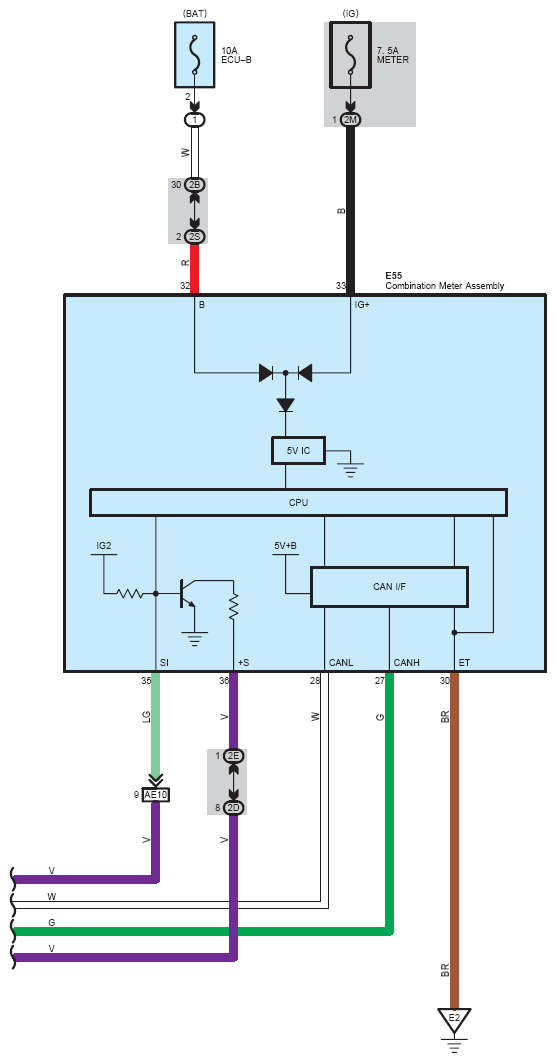

Fig 5: Cooling Fan (2AZ-FE) System Wiring Diagram (5 Of 5)
G07114347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
