Front Fog Light: Notes

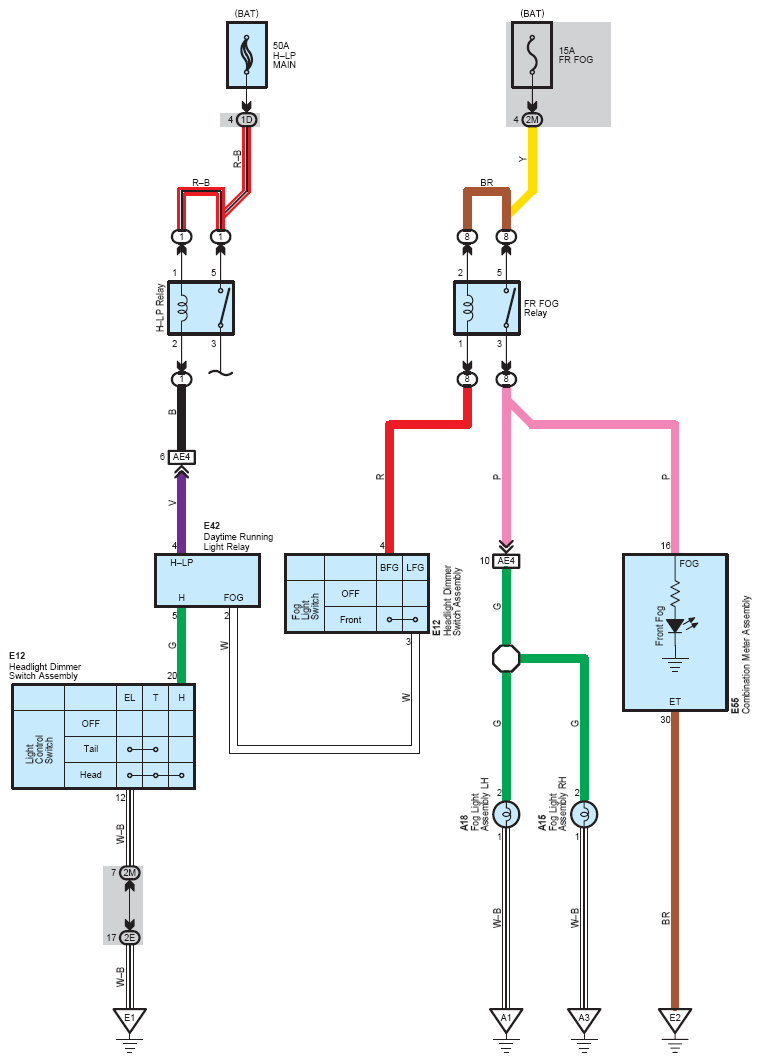

Fig 1: Front Fog Light System Wiring Diagram
G07114254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
