Mode 6 - TOYOTA
›
Sienna
›
1AR-FE 2.7L
1AR-FE 2.7L

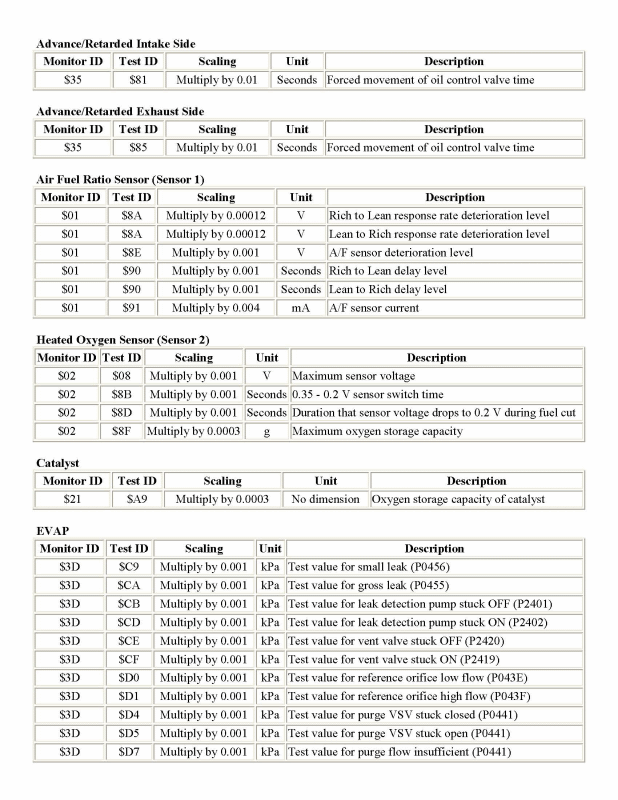

Fig 1: Mode 6 Data For Sienna 4 Cyl. (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

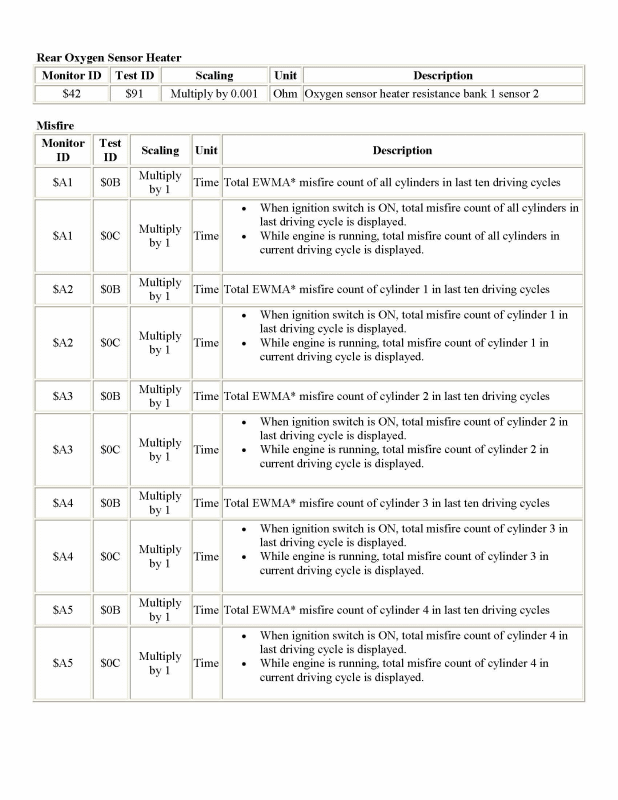

Fig 2: Mode 6 Data For Sienna 4 Cyl. (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
