Windshield Glass: Installation: Installation

  1. INSTALL NO. 2 WINDSHIELD GLASS STOPPER
    1. Using a brush or a sponge, coat the application area of the No. 2 windshield glass stoppers with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install 2 new No. 2 windshield glass stoppers onto the windshield glass, as shown in the illustration.
      Fig 1: Identifying Application Area Of No. 2 Windshield Glass Stoppers With Primer G
      GTY241232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Dimension

      Area Dimension
      a 15.0 mm (0.591 in.)
      b 40.0 mm (1.575 in.)
      NOTE:

      Only the 2-piece type No. 1 windshield glass stoppers are supplied. Use the 2-piece type stoppers even if the 1-piece type stoppers were used.

  2. INSTALL NO. 1 WINDSHIELD GLASS STOPPER
    1. Install 2 new No. 1 windshield glass stoppers to the vehicle body, as shown in the illustration.
      Fig 2: View Of No. 1 Windshield Glass Stoppers To Vehicle Body
      GTY242129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Only the 2-piece type No. 1 windshield glass stoppers are supplied. Use the 2-piece type stoppers even if the 1-piece type stoppers were used.

  3. INSTALL WINDOW GLASS ADHESIVE DAM
    1. Using a brush or a sponge, coat the application area of windshield glass adhesive dam with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install a new adhesive dam onto the windshield glass, as shown in the illustration.
      Fig 3: View Of Application Area Of Windshield Glass Adhesive Dam With Primer G
      GTY241233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Install the new adhesive dam along the dam reference line.

  4. INSTALL WINDSHIELD GLASS
    1. Position the windshield glass.
      Fig 4: Placing Matchmarks On Windshield Glass And Vehicle Body
      GTY241994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using suction cups, place the windshield glass in the correct position.
      2. Check that the whole contact surface of the windshield glass rim is perfectly even.
      3. Align the matchmarks on the windshield glass and vehicle body.
        NOTE:

        Check that the windshield glass stoppers are attached to the vehicle body correctly.

      4. Remove the windshield glass.
    2. Using a brush, coat the installation surface on the vehicle body with Primer M.

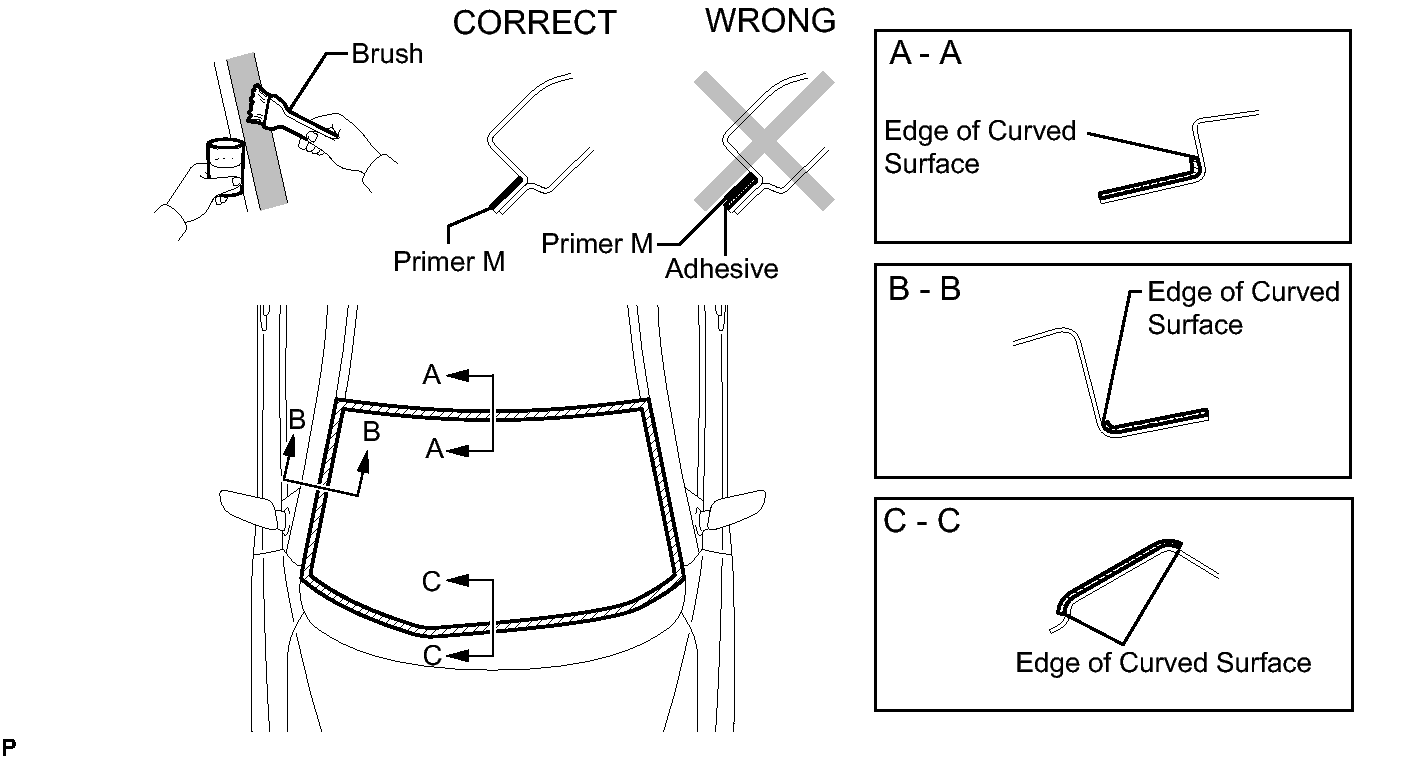

      Fig 5: View Of Adhesive Correct And Incorrect Position
      GTY231222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not coat the adhesive with Primer M.
      • Do not apply too much primer.
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    3. Using a brush or a sponge, coat the application area of adhesive with Primer G.

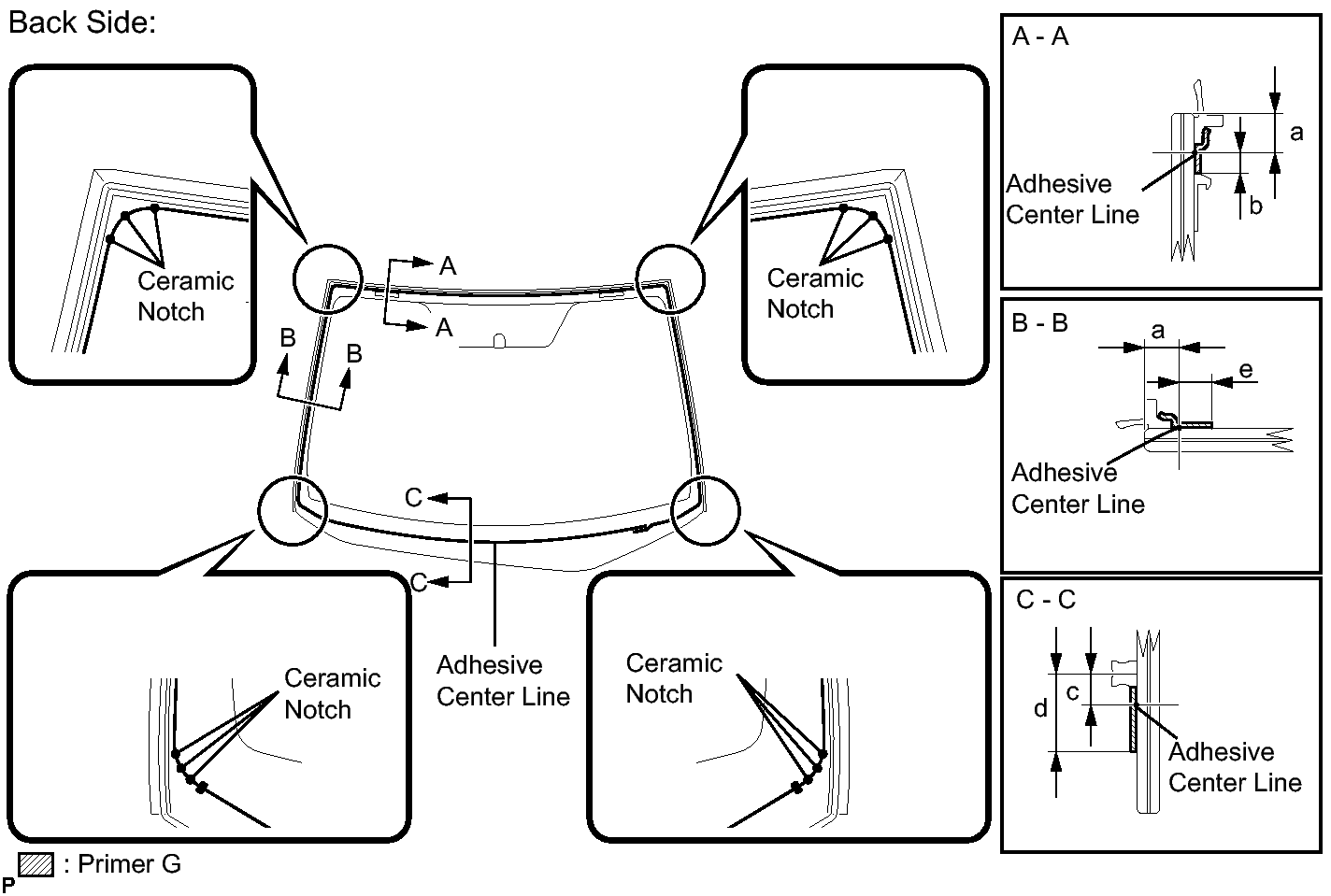

      Fig 6: View Of Primer G Application Areas
      GTY235502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Dimension

      Area Dimension
      a 9.0 mm (0.354 in.)
      b 4.0 mm (0.157 in.)
      c 6.6 mm (0.260 in.)
      d 13.6 mm (0.535 in.)
      e 7.0 mm (0.276 in.)
      NOTE:
      • Do not apply too much primer.
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.

      HINT:

      • Apply Primer G onto the ceramic notches.
      • If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.
    4. Apply adhesive to the glass.

      Adhesive

      Toyota Genuine Windshield Glass Adhesive or equivalent

      1. Cut off the tip of the cartridge nozzle as shown in the illustration.

        HINT:

        After cutting off the tip, use all adhesive within the time described in the table below.

        Usage Time Frame

        Temperature Usage Time Frame
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour and 40 minutes
        5°C (41°F) 8 hours
      2. Load the sealer gun with cartridge.
      3. Apply adhesive to the windshield glass, as shown in the illustration.

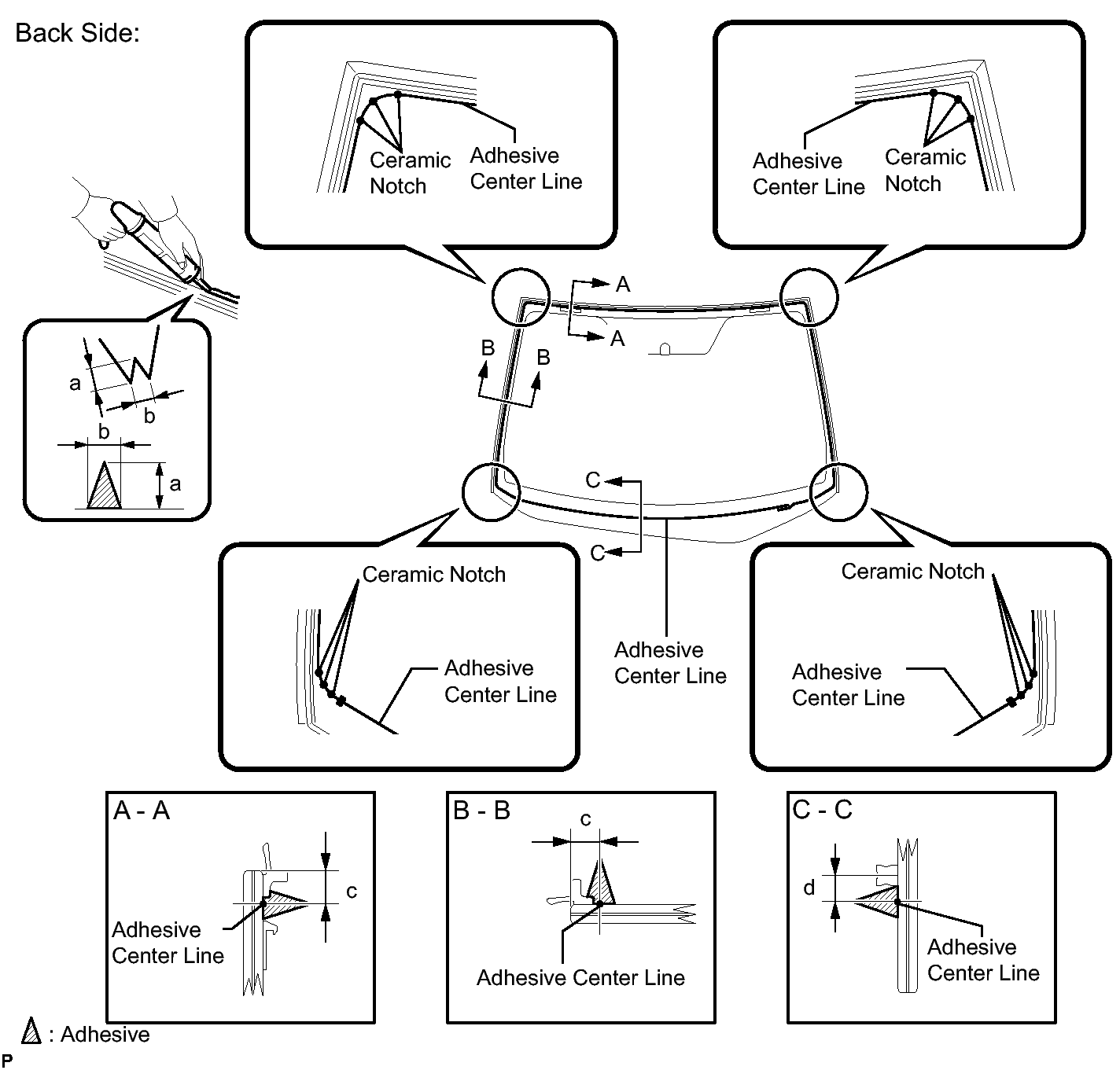

        Fig 7: Applying Adhesive To Glass Notches Area
        GTY214948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard Dimension

        Area Dimension
        a 12.0 mm (0.472 in.)
        b 8.0 mm (0.315 in.)
        c 9.0 mm (0.354 in.)
        d 6.6 mm (0.260 in.)

        HINT:

        Apply adhesive onto the ceramic notches.

    5. Install the windshield glass assembly.
      Fig 8: Identifying Windshield Glass Installation Position
      GTY215749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using suction cups, position the windshield glass so that the matchmarks are aligned, and press it in gently along the rim.
        NOTE:
        • Check that the windshield glass stoppers are attached to the vehicle body correctly.
        • Check the clearance between the vehicle body and windshield glass.
      2. Lightly press the front surface of the windshield glass to ensure that the windshield glass is securely fit to the vehicle body.

        HINT:

        Press the glass with force of 98 N (10 kgf, 22 lbf) or more.

      3. Using a scraper, remove any excess or protruding adhesive.
        Fig 9: Applying Adhesive Onto Windshield Glass Rim
        GTY117605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Apply adhesive onto the windshield glass rim.

      4. Hold the windshield glass using protective tape until applied adhesive becomes hard.
        NOTE:

        Do not drive the vehicle for the time described in the table below.

        Minimum Time

        Temperature Minimum Time prior to Driving Vehicle
        35°C (95°F) 1 hour and 30 minutes
        20°C (68°F) 5 hours
        5°C (41°F) 24 hours
  5. INSPECT FOR LEAK AND REPAIR
    1. After the adhesive has hardened, apply water from the outside of the vehicle. Check that no water leaks into the cabin.
    2. If water leaks into the cabin, allow the water to dry and add adhesive.
    3. Remove the protective tape.
  6. INSTALL ROOF HEADLINING ASSEMBLY

    Return the front section of the roof headlining assembly to the original position.

  7. INSTALL VISOR HOLDER  . Refer to INSTALLATION - Step 10
  8. INSTALL ASSIST GRIP SUB-ASSEMBLY  . Refer to INSTALLATION - Step 11
  9. INSTALL VISOR ASSEMBLY LH  . Refer to INSTALLATION - Step 12
  10. INSTALL VISOR ASSEMBLY RH  . Refer to INSTALLATION - Step 13
  11. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)  . Refer to INSTALLATION - Step 3
  12. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)  . Refer to INSTALLATION - Step 4
  13. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 79
  14. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH  . Refer to INSTALLATION - Step 80
  15. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION - Step 83
  16. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH  . Refer to INSTALLATION - Step 80
  17. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)  . Refer to INSTALLATION - Step 1
  18. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)  . Refer to INSTALLATION - Step 2
  19. INSTALL INNER REAR VIEW MIRROR COVER (w/ EC Mirror)  . Refer to INSTALLATION - Step 3
  20. INSTALL COWL TOP VENTILATOR LOUVER LH  . Refer to INSTALLATION - Step 4
  21. INSTALL COWL TOP VENTILATOR LOUVER RH  . Refer to INSTALLATION - Step 5
  22. INSTALL HOOD TO COWL TOP SEAL  . Refer to INSTALLATION - Step 6
  23. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to INSTALLATION - Step 7
  24. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to INSTALLATION - Step 8
  25. INSTALL FRONT WIPER ARM HEAD CAP  . Refer to INSTALLATION - Step 9
