Purge Valve: Components: Illustration

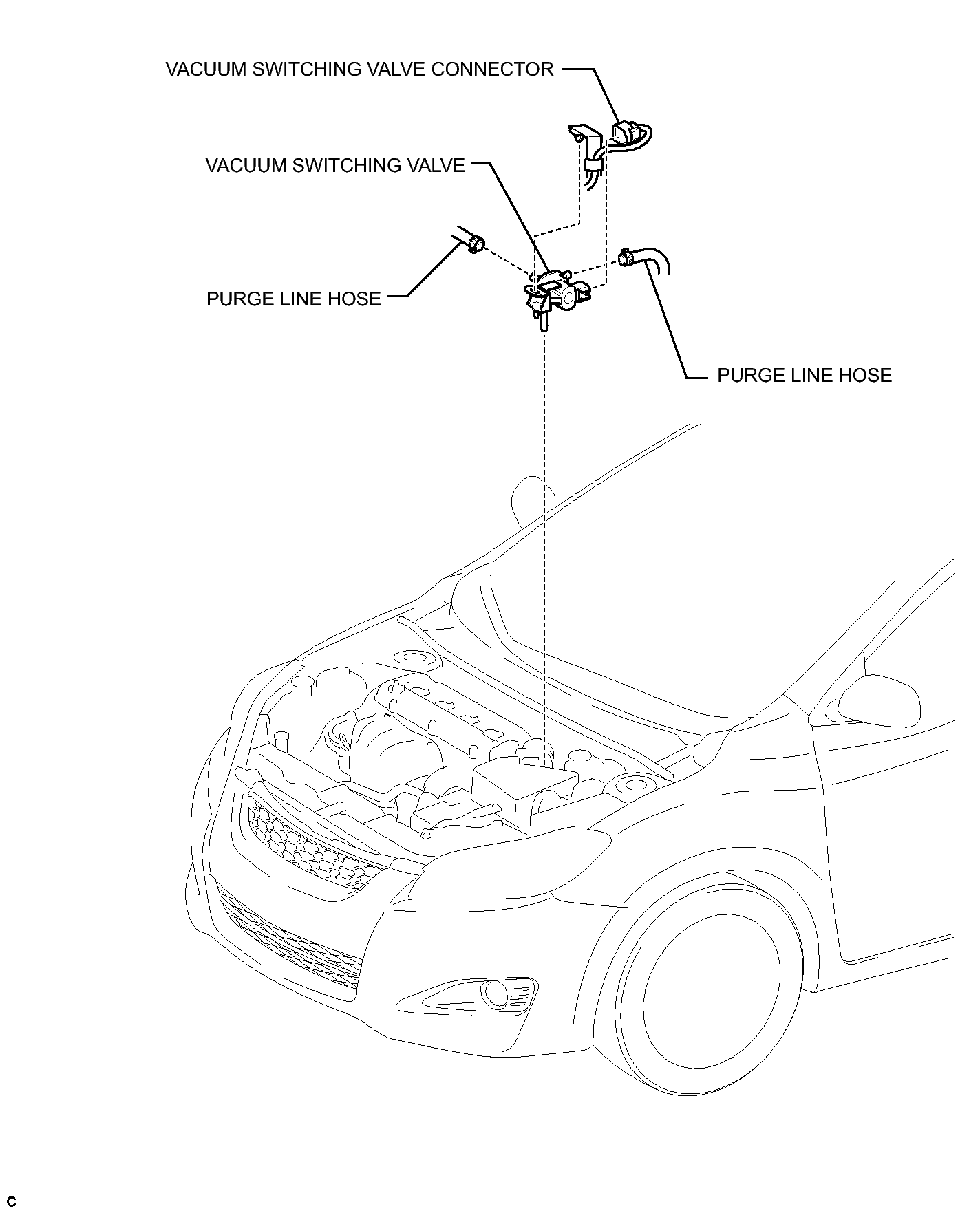

Fig 1: Identifying Purge Valve Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
