Back-Up Light: Notes

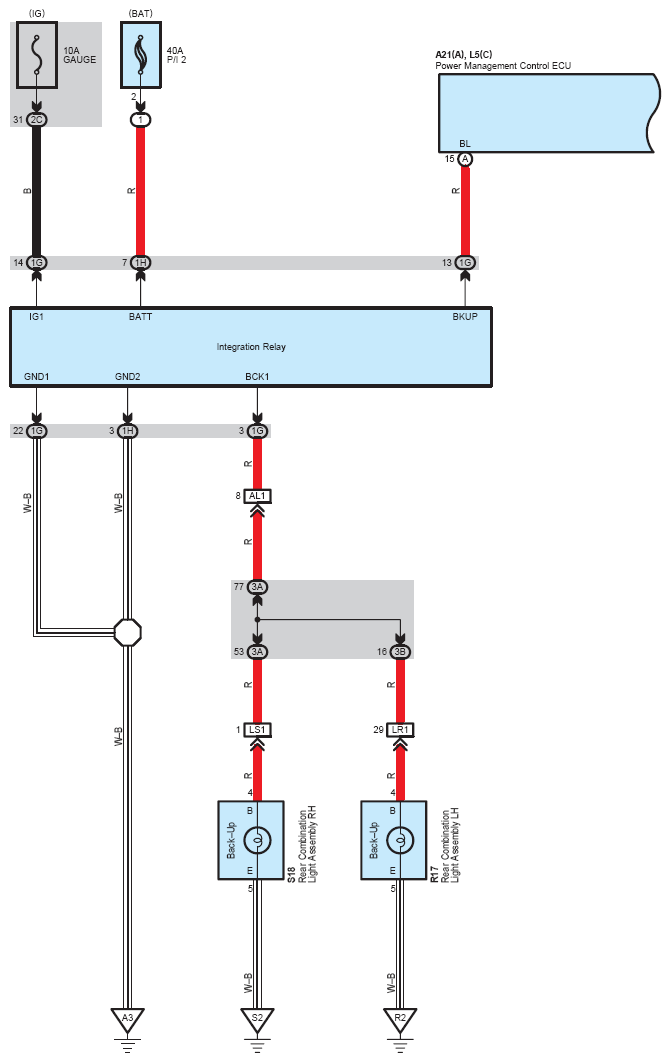

Fig 1: Back-Up Light System Wiring Diagram (1 Of 2)
G07116822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Back-Up Light System Wiring Diagram (2 Of 2)
G07116823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
