Power Seat: Notes

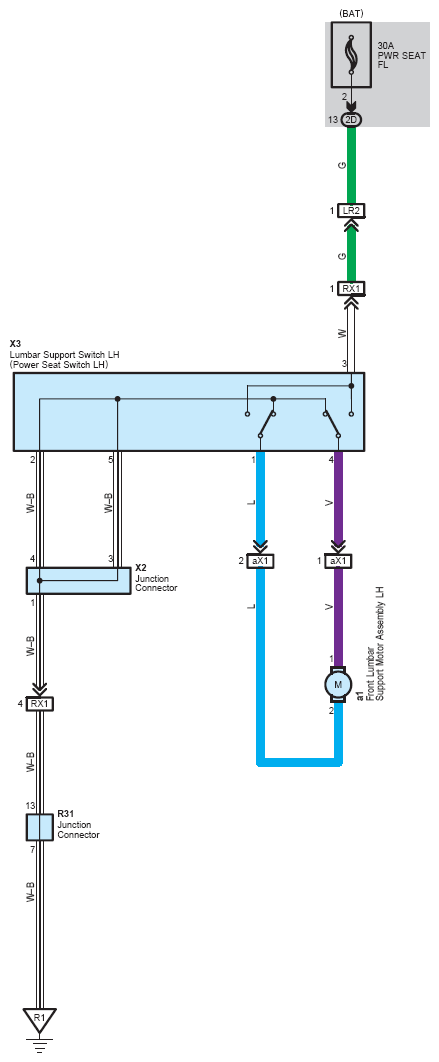

Fig 1: Power Seat System Wiring Diagram
G07116911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
