Solar Ventilation System
›
Notes
Solar Ventilation System: Notes

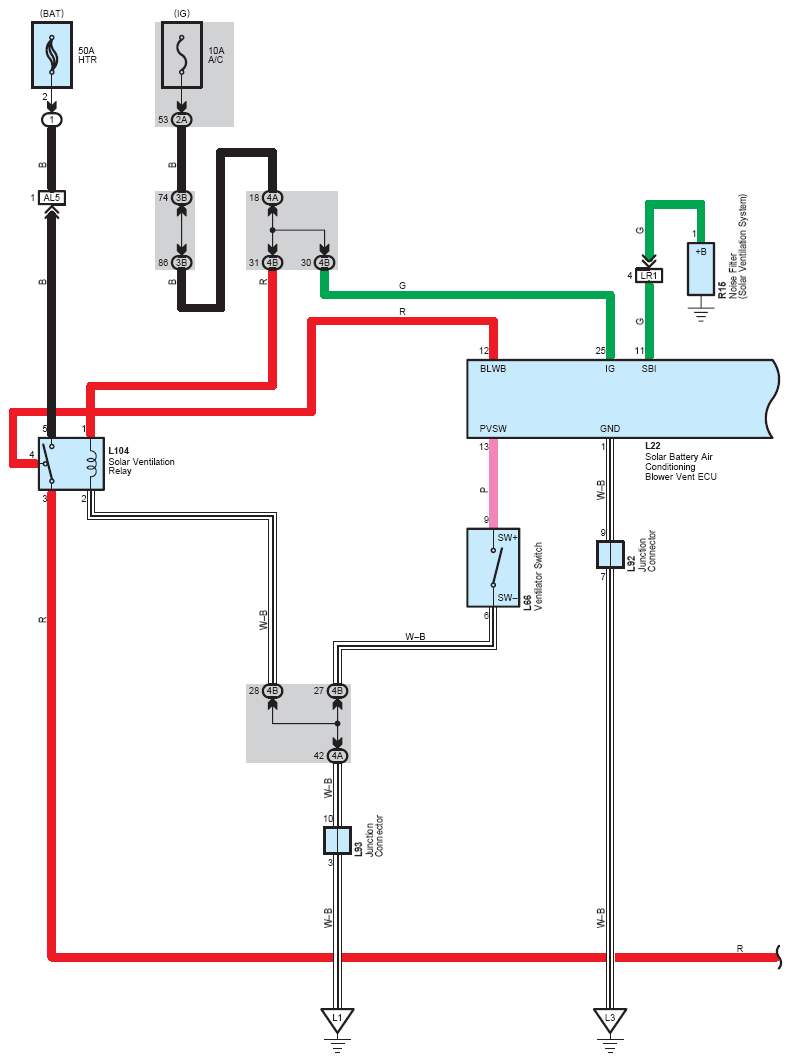

Fig 1: Solar Ventilation System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

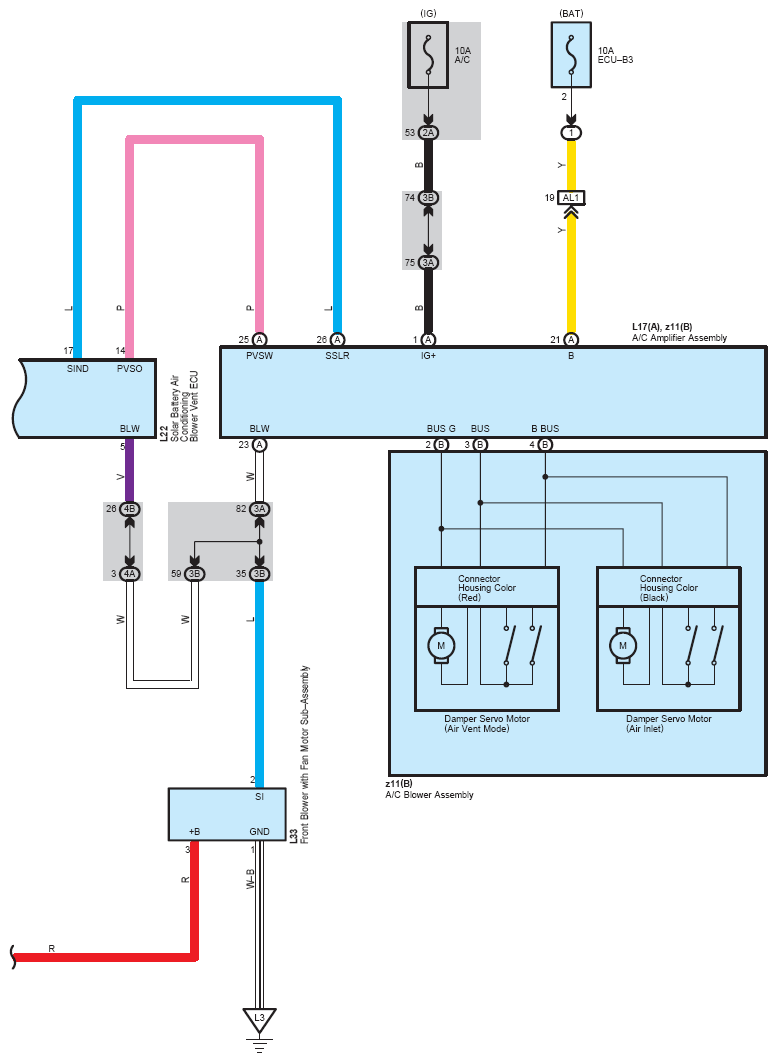

Fig 2: Solar Ventilation System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
