Audio System (JBL): Notes

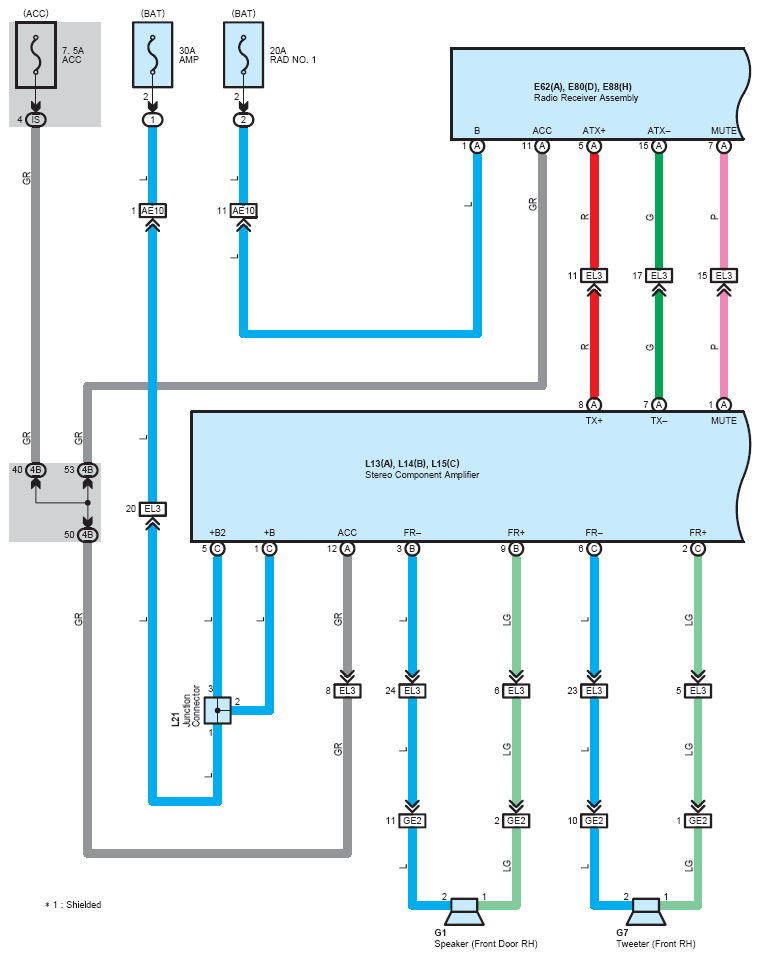

Fig 1: Audio System (JBL) Wiring Diagram (1 Of 5)
G07130636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

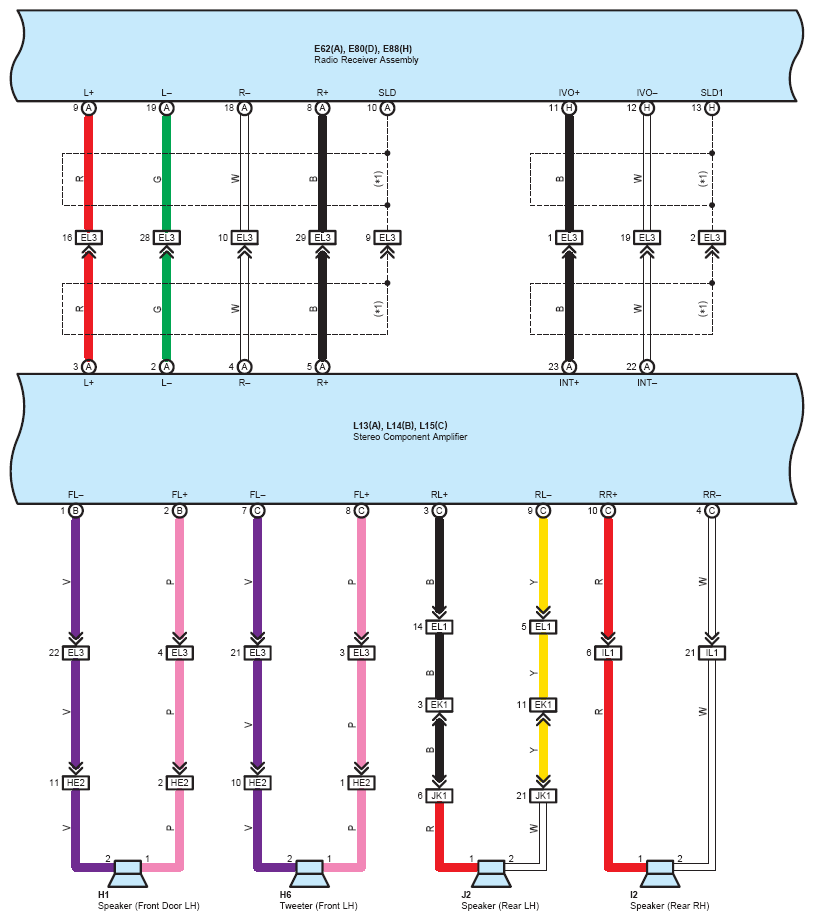

Fig 2: Audio System (JBL) Wiring Diagram (2 Of 5)
G07130637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

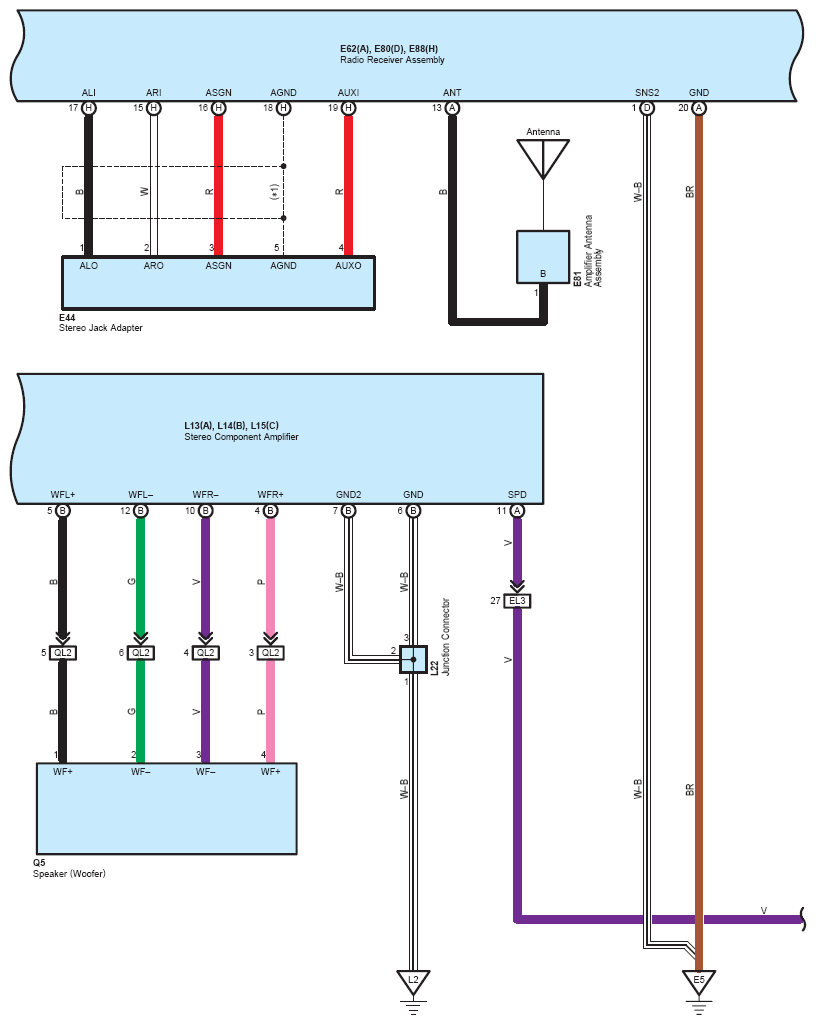

Fig 3: Audio System (JBL) Wiring Diagram (3 Of 5)
G07130638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

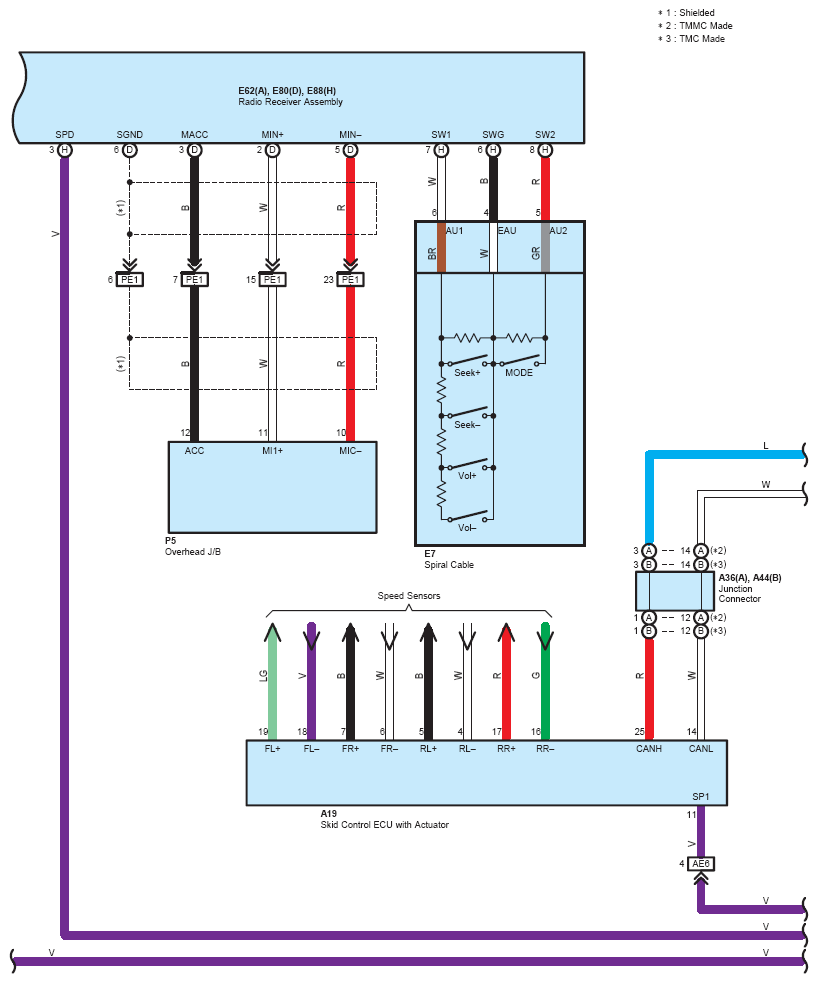

Fig 4: Audio System (JBL) Wiring Diagram (4 Of 5)
G07130639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

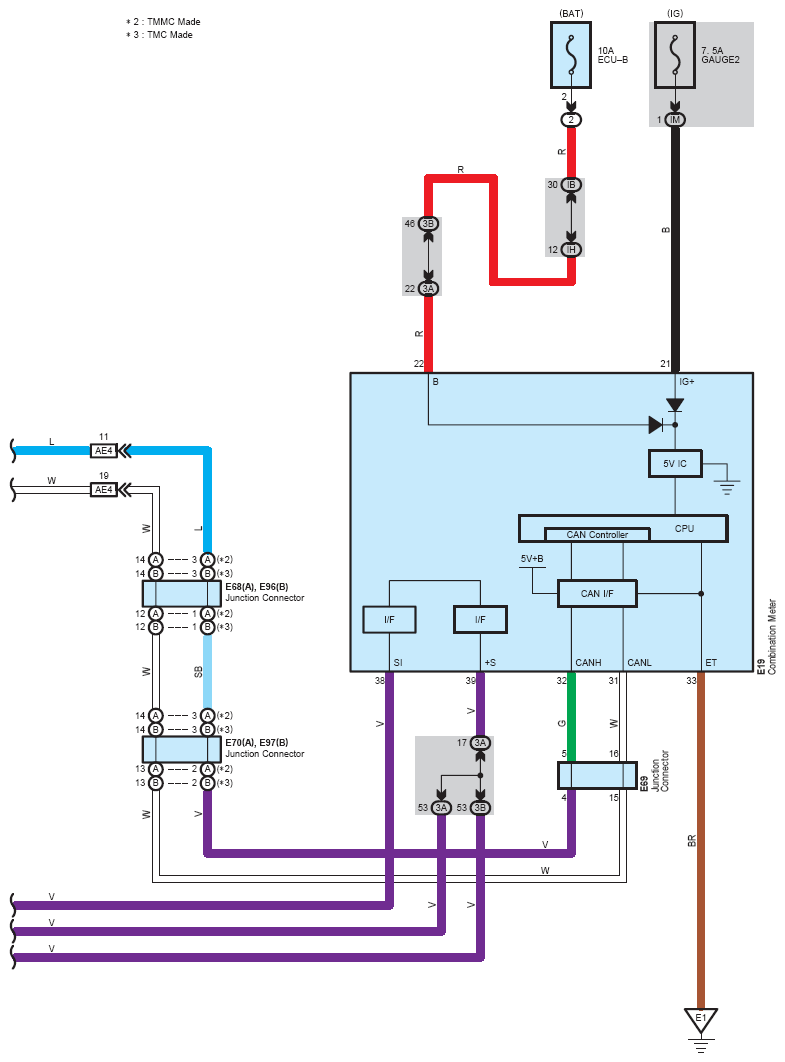

Fig 5: Audio System (JBL) Wiring Diagram (5 Of 5)
G07130640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
