Cruise Control (2AR-FE): Notes

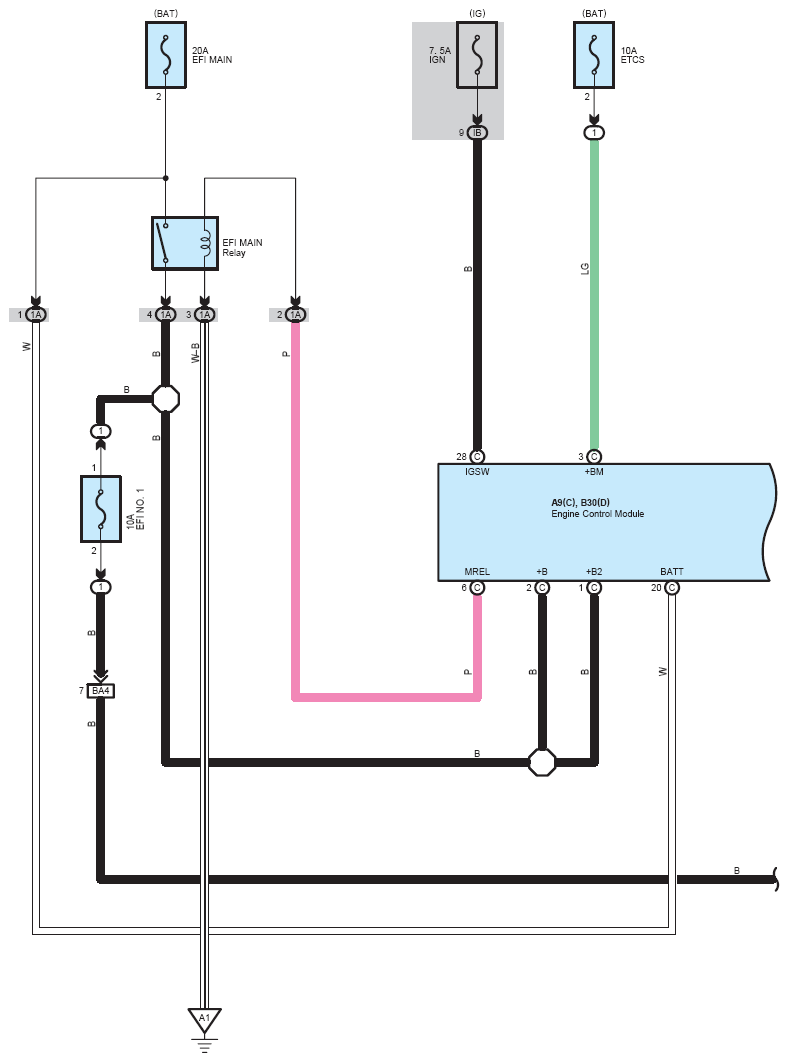

Fig 1: Cruise Control (2AR-FE) System Wiring Diagram (1 Of 6)
G07130602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

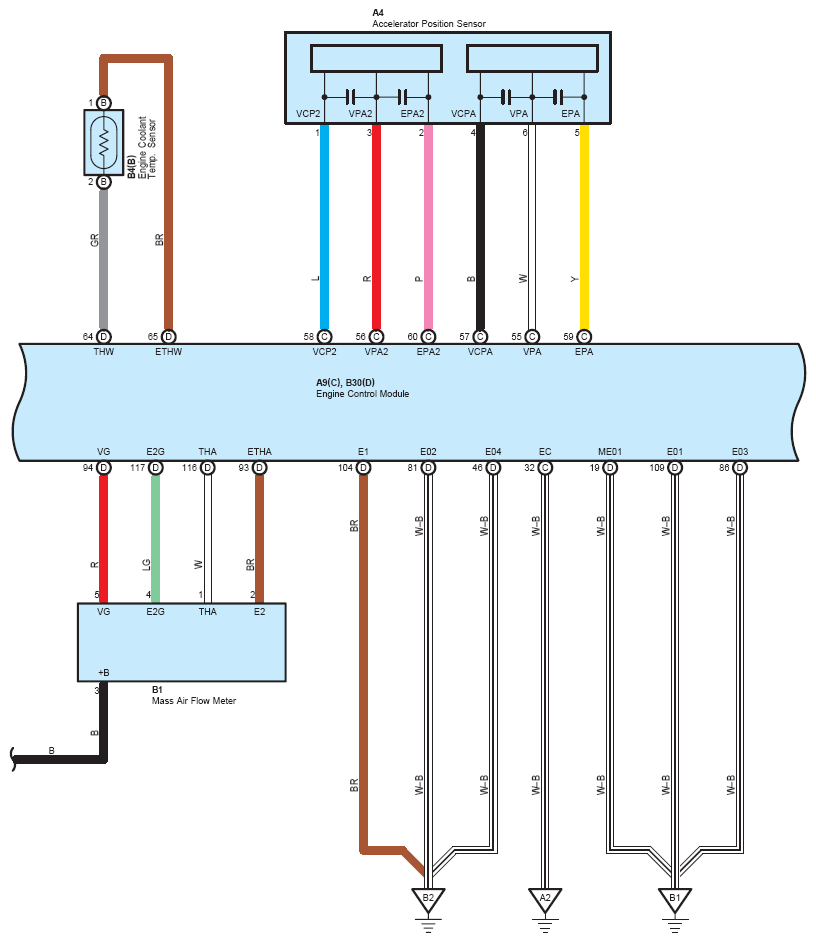

Fig 2: Cruise Control (2AR-FE) System Wiring Diagram (2 Of 6)
G07130603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

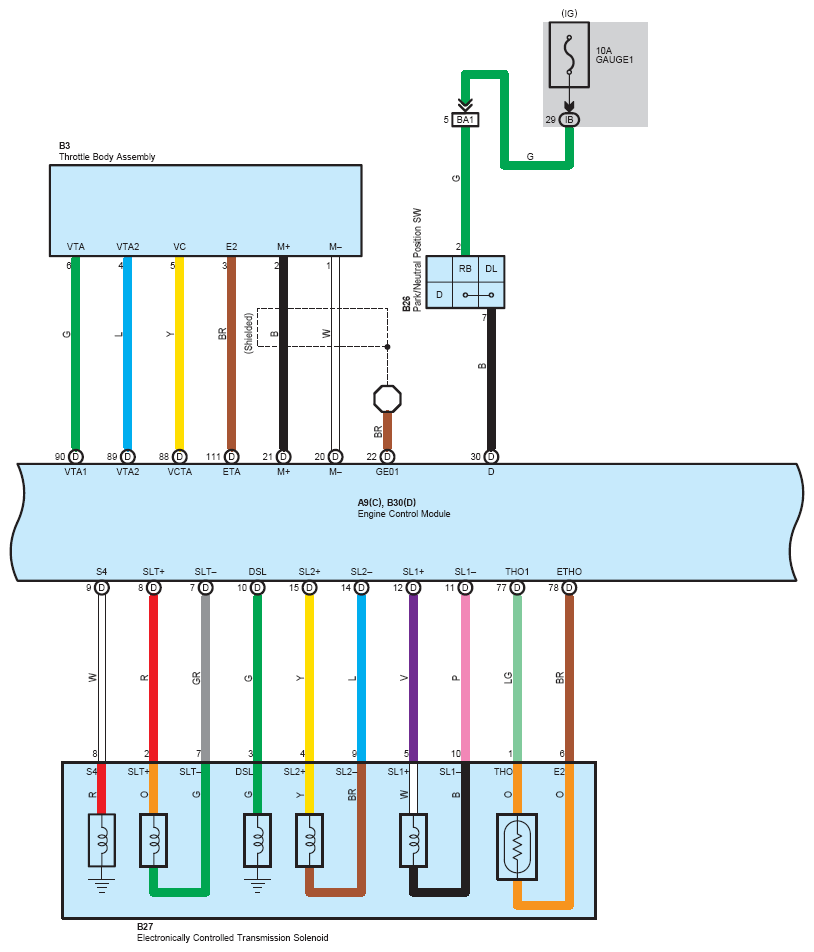

Fig 3: Cruise Control (2AR-FE) System Wiring Diagram (3 Of 6)
G07130604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

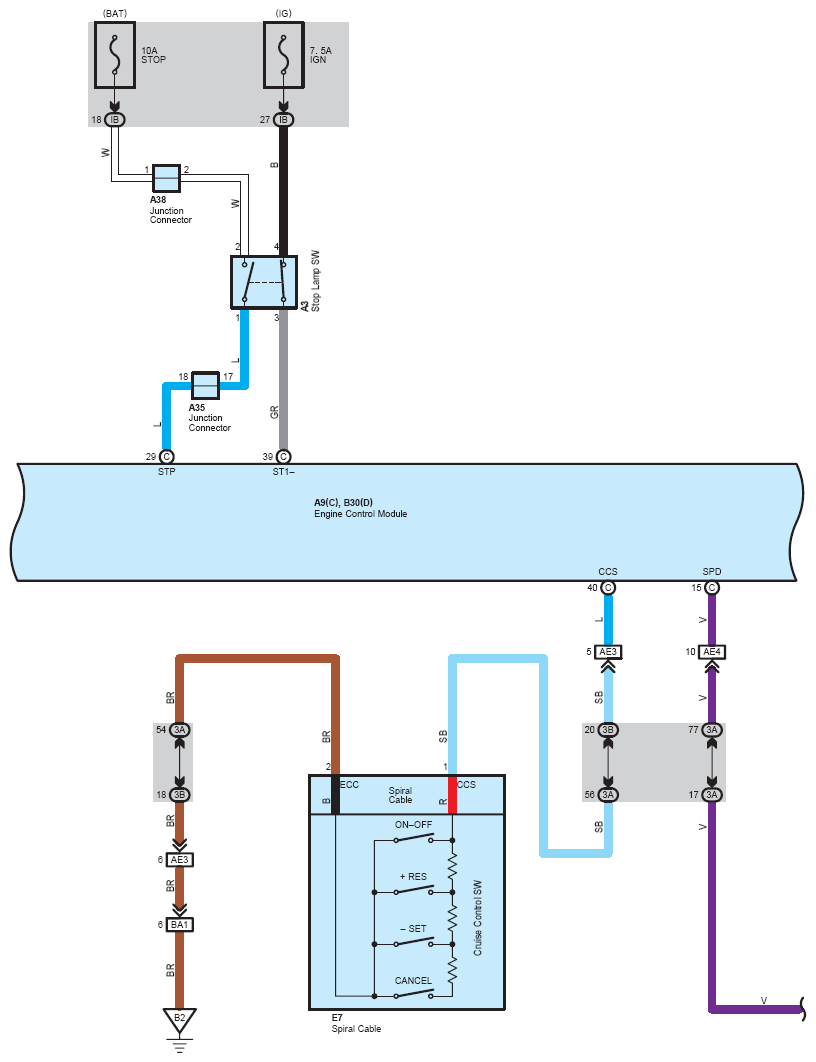

Fig 4: Cruise Control (2AR-FE) System Wiring Diagram (4 Of 6)
G07130605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

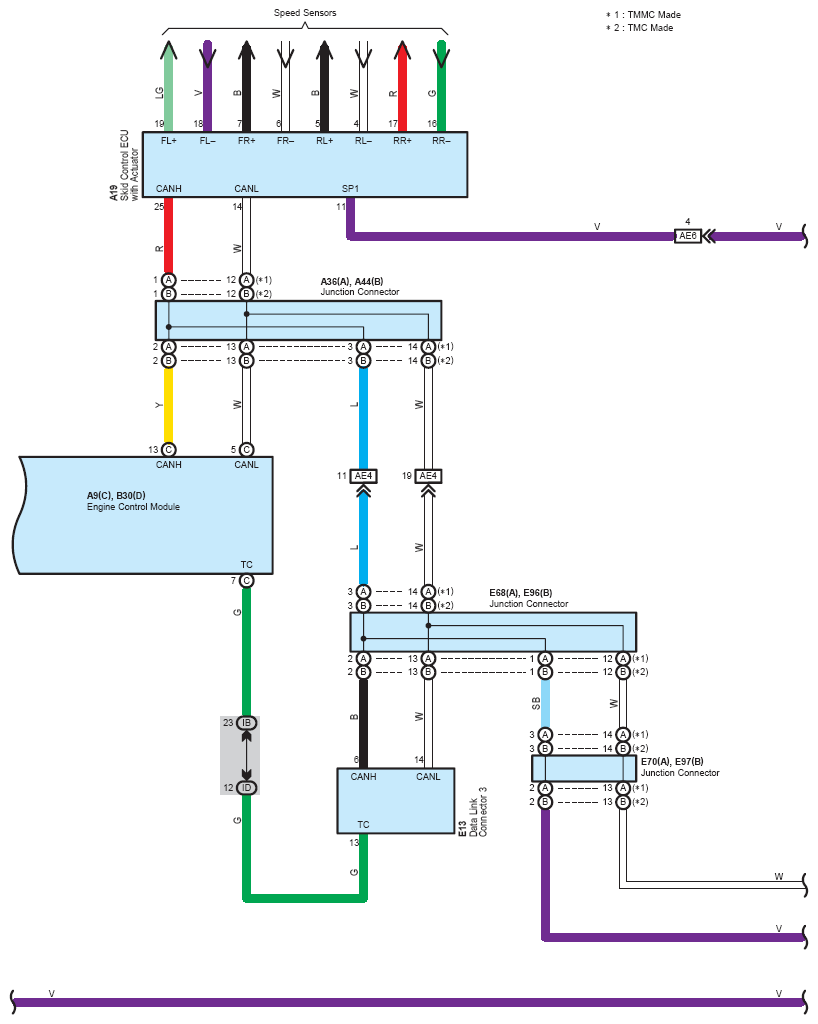

Fig 5: Cruise Control (2AR-FE) System Wiring Diagram (5 Of 6)
G07130606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

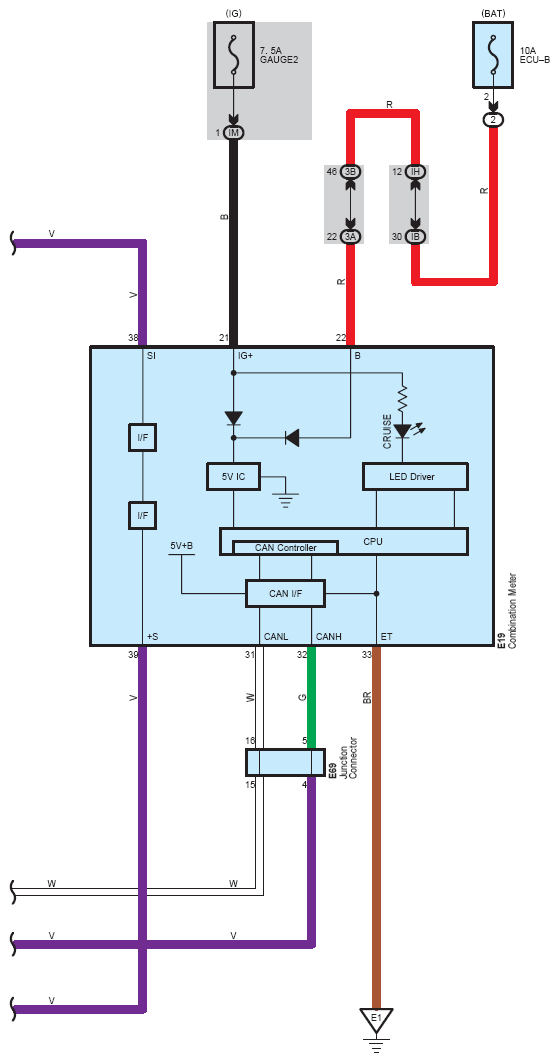

Fig 6: Cruise Control (2AR-FE) System Wiring Diagram (6 Of 6)
G07130607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
