RAV4 Base, 3.5 K, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Key Reminder (w/o Smart Key System)
›
Notes
Key Reminder (w/o Smart Key System): Notes

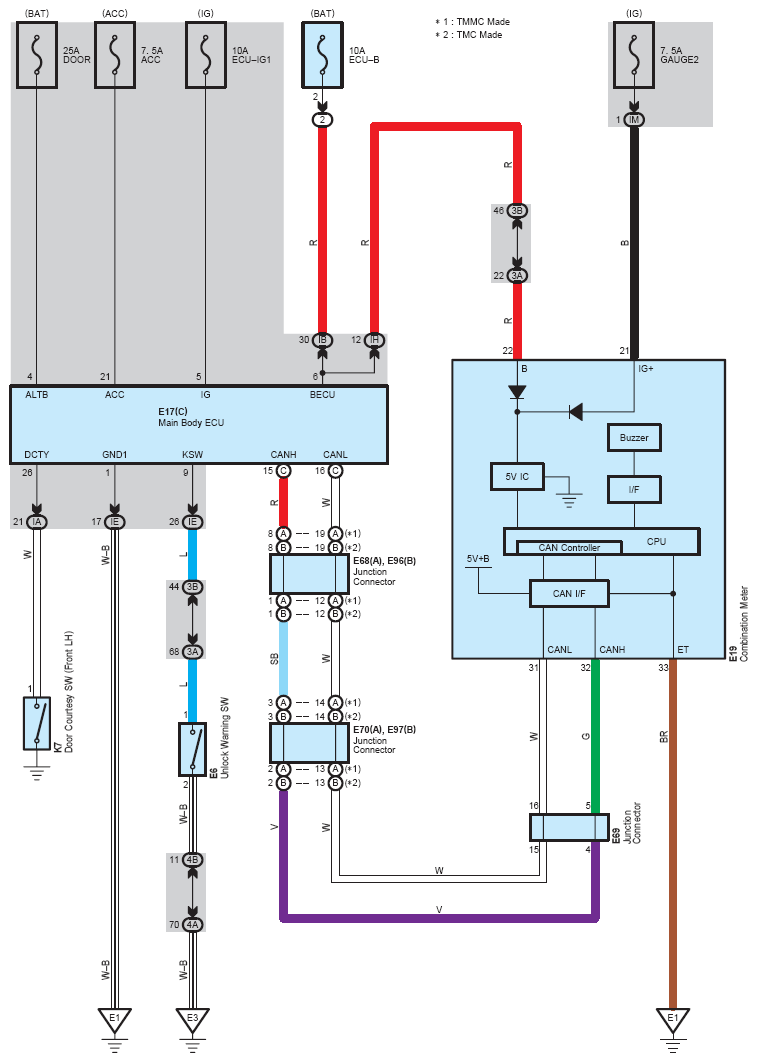

Fig 1: Key Reminder (w/o Smart Key System) Wiring Diagram
