Sliding Roof: Notes

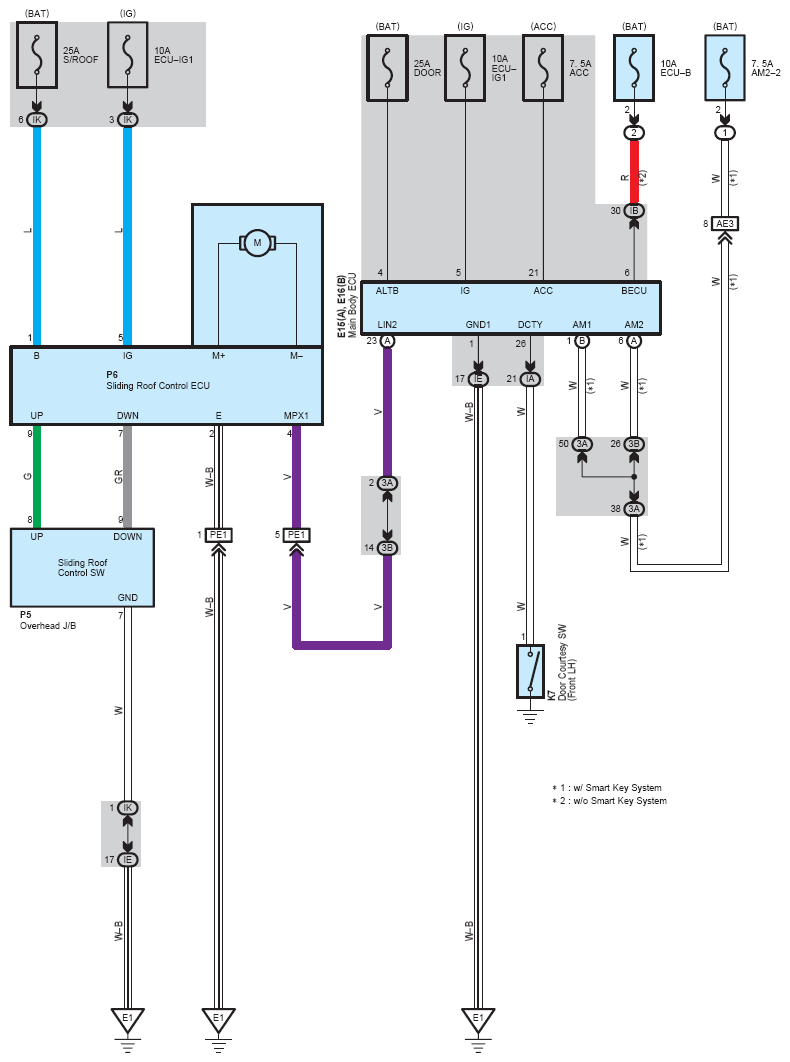

Fig 1: Sliding Roof System Wiring Diagram

G07130630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
