Power Outlet (120V): Notes

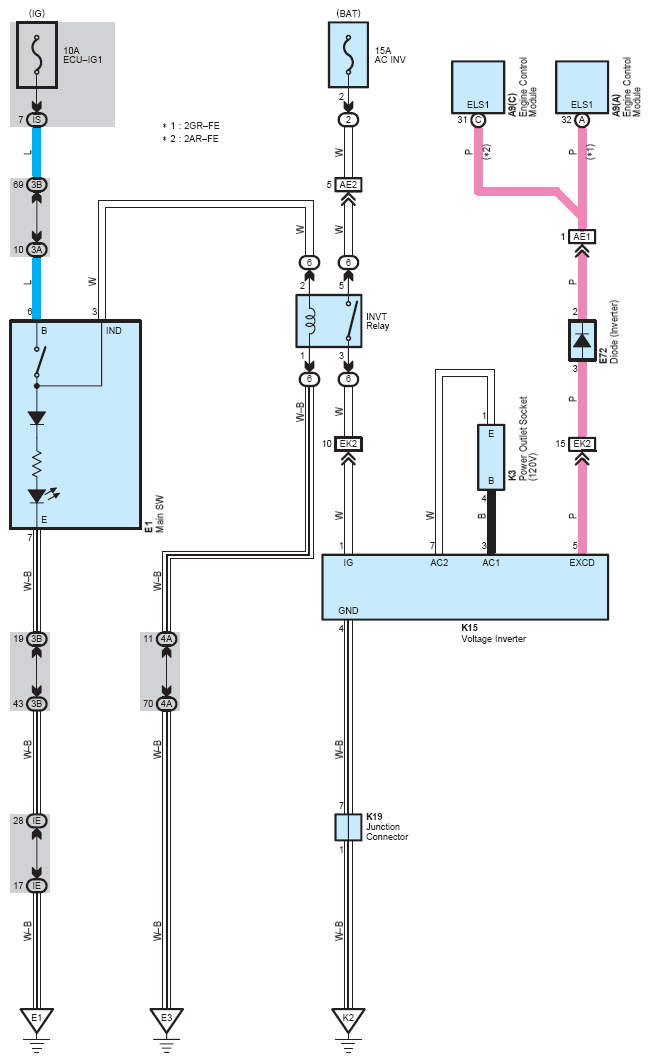

Fig 1: Power Outlet (120V) System Wiring Diagram

G07130565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
