System Diagram

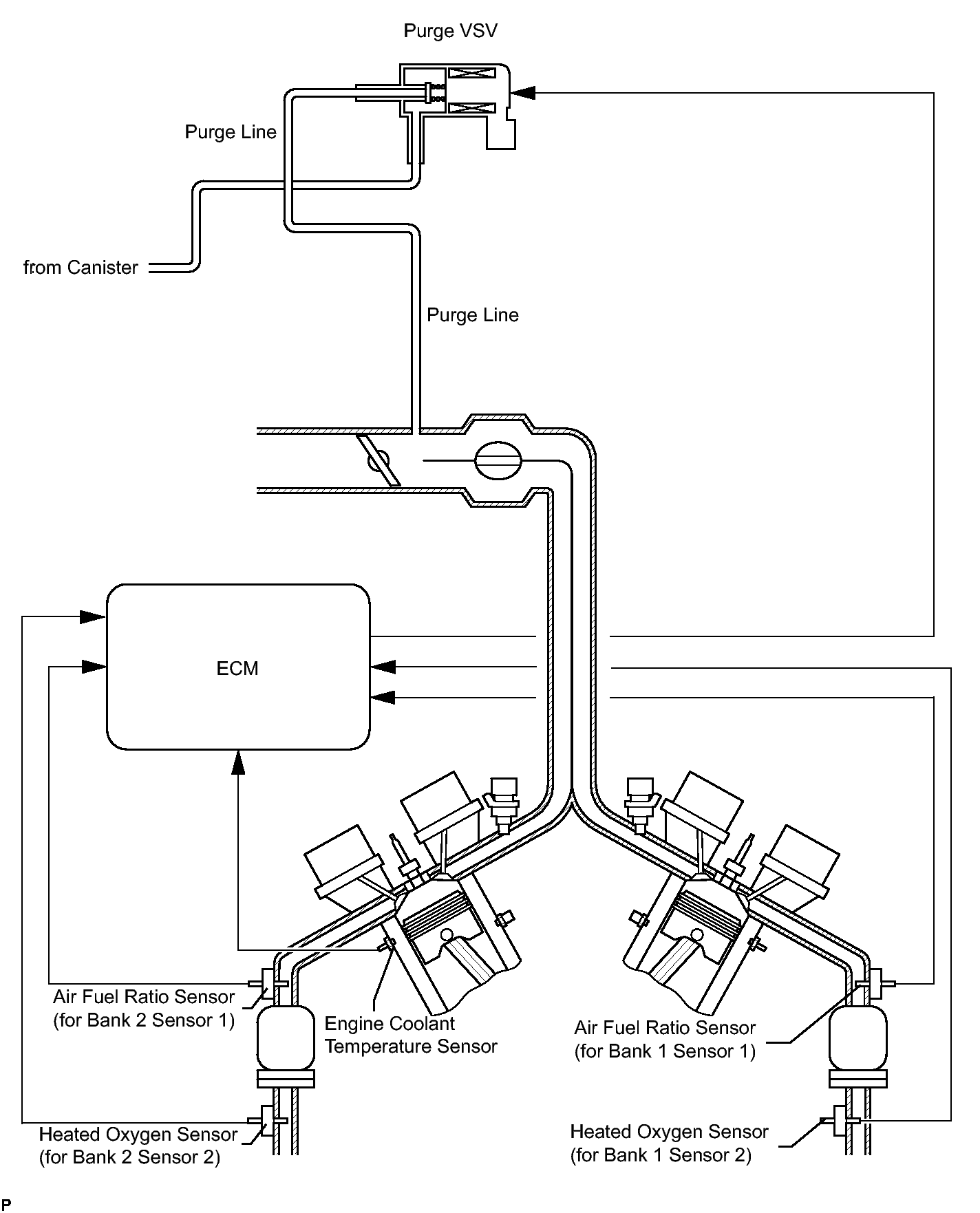

Fig 1: Emission Control System Diagram (1 Of 5)
GTY214317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

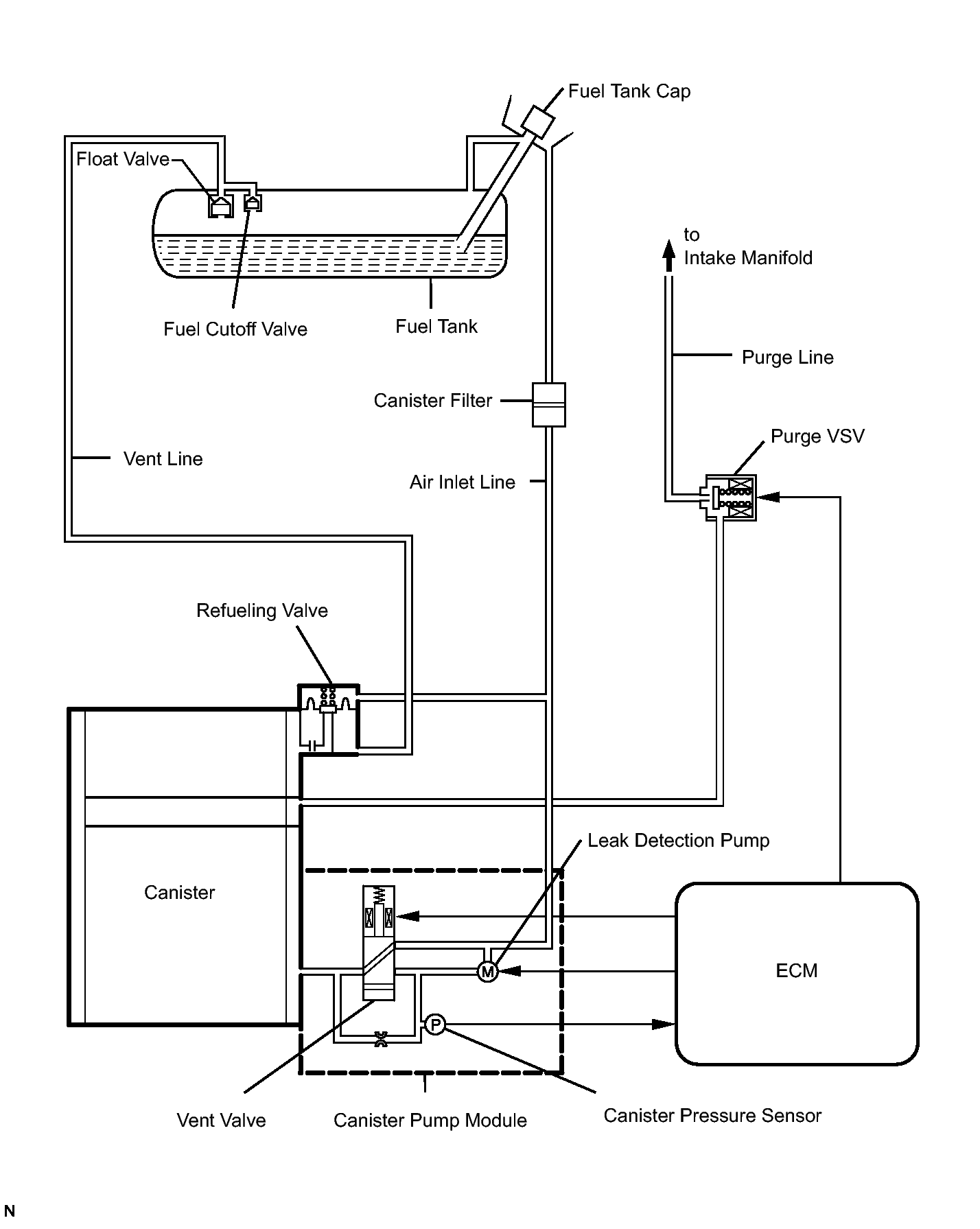

Fig 2: Emission Control System Diagram (2 Of 5)
GTY237364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

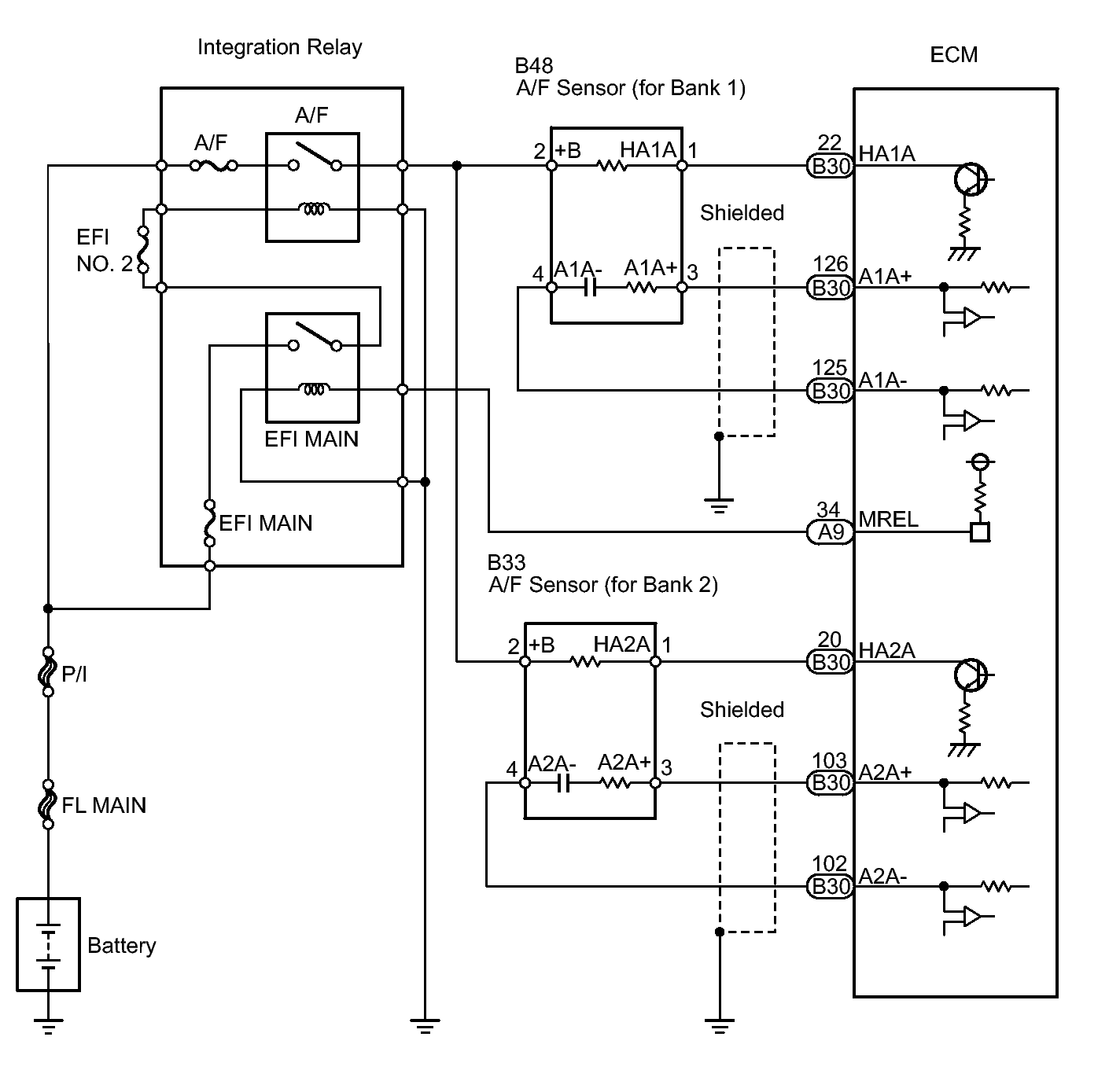

Fig 3: Emission Control System Circuit Diagram (3 Of 5)
GTY227712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

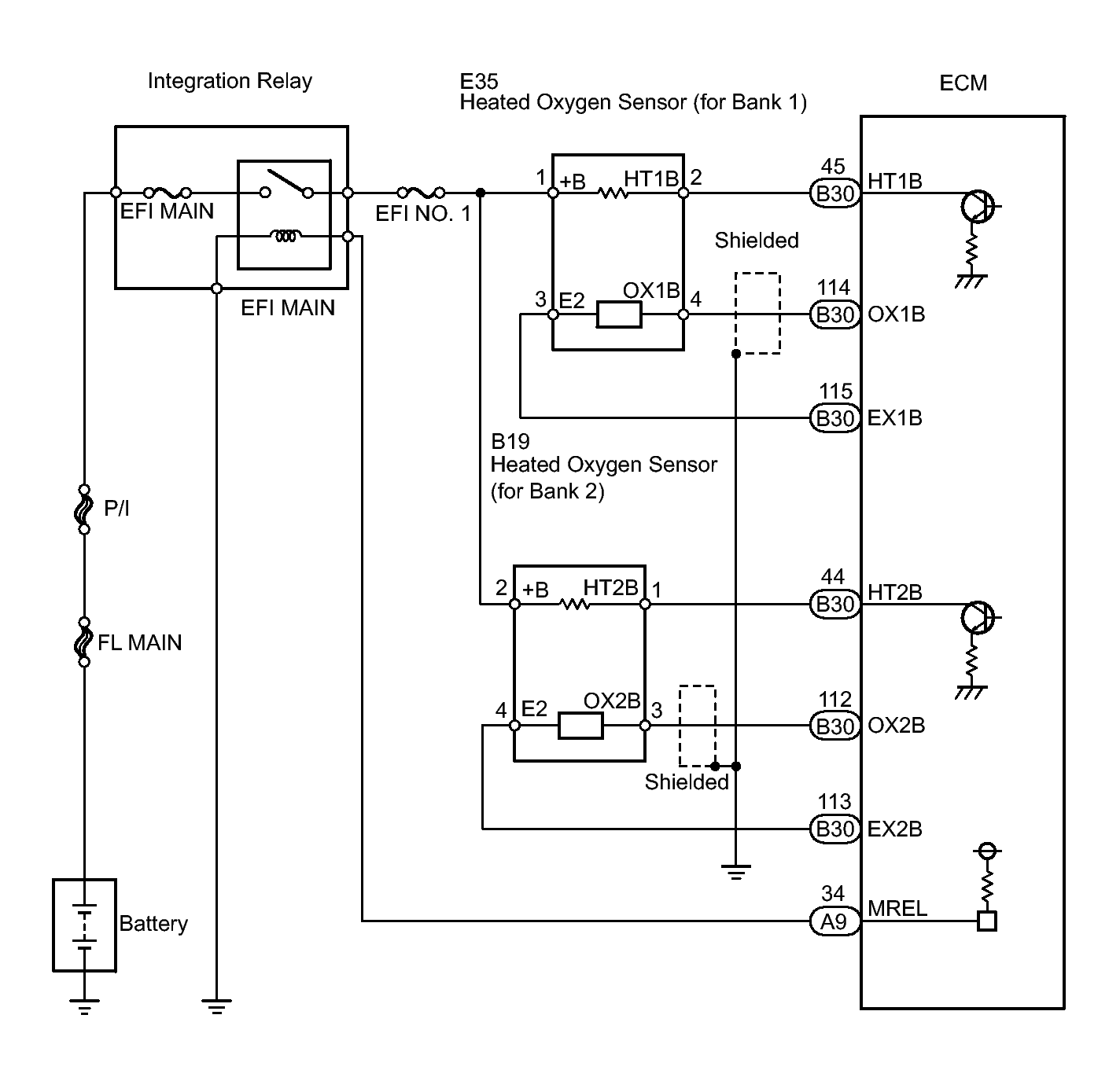

Fig 4: Emission Control System Circuit Diagram (4 Of 5)
GTY237606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

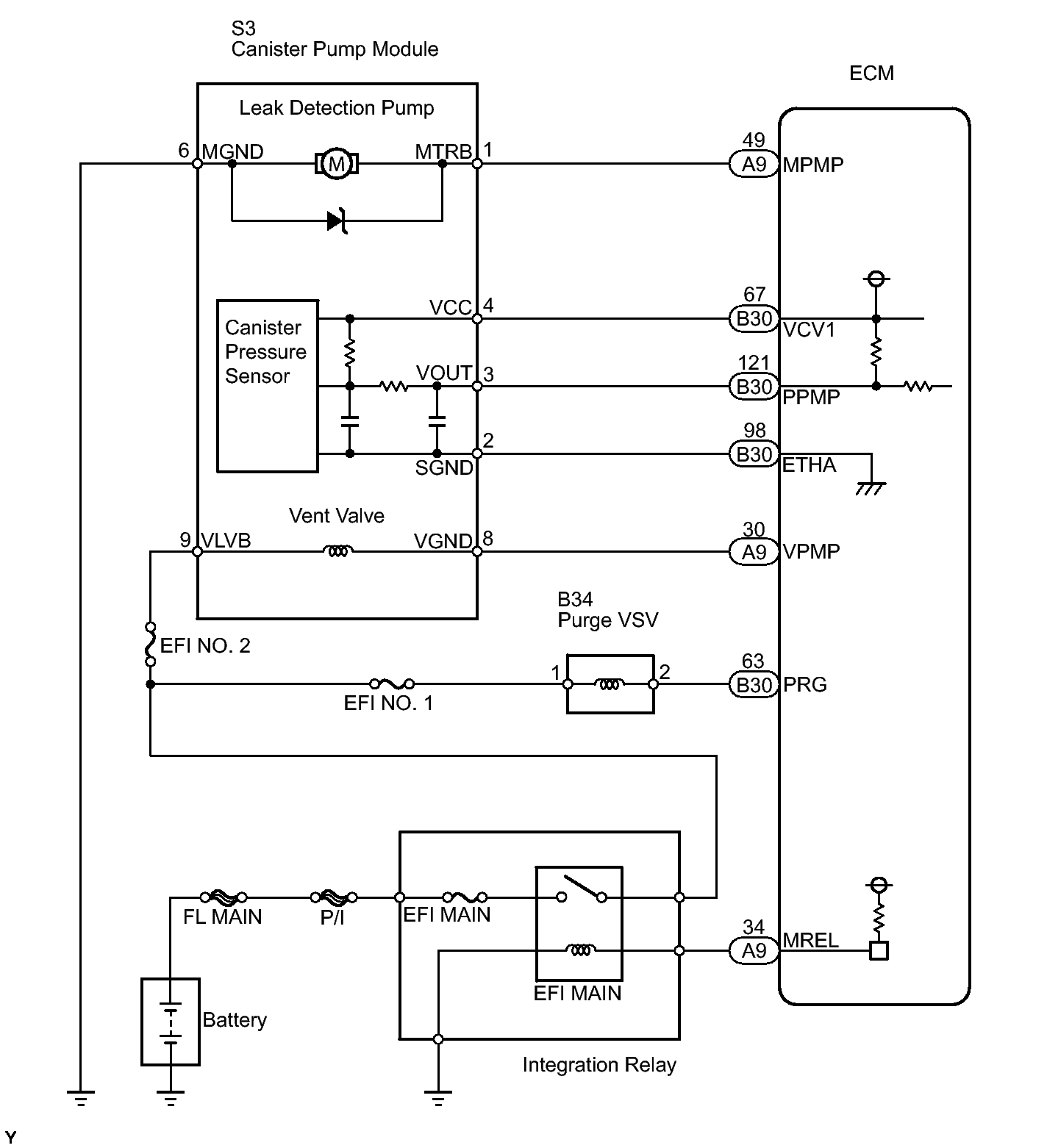

Fig 5: Emission Control System Circuit Diagram (5 Of 5)
GTY238449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
