Front Window Deicer: Notes

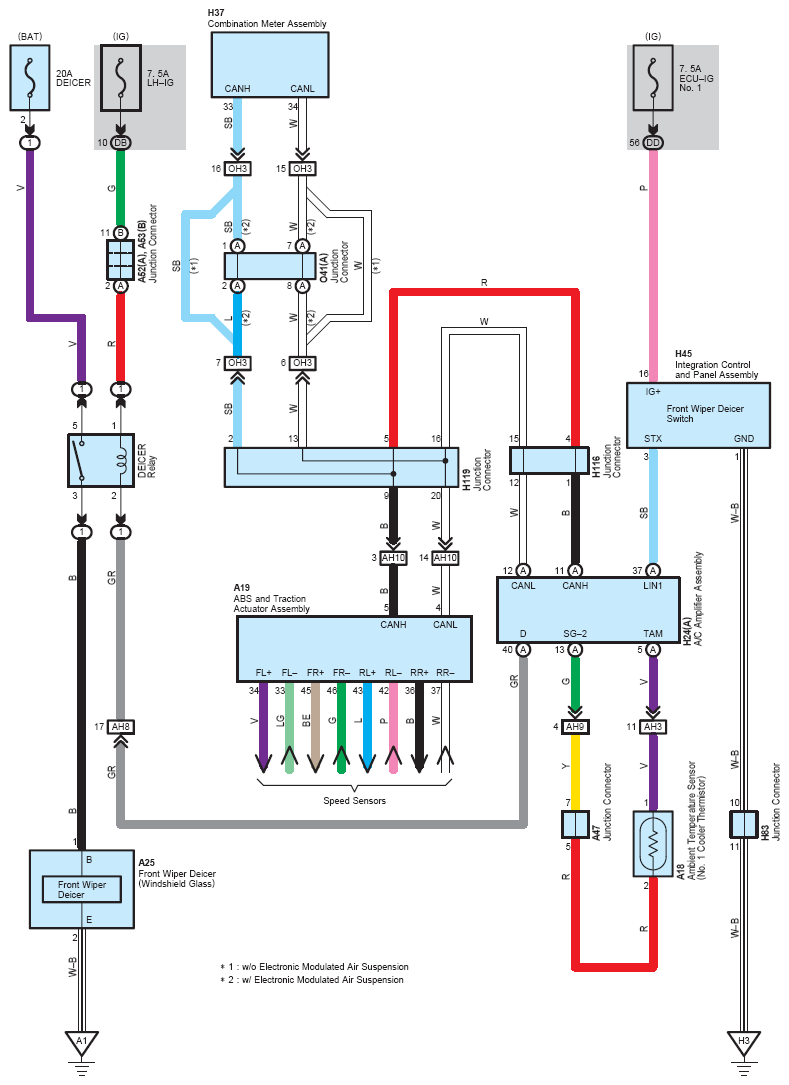

Fig 1: Front Window Deicer Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
