OEM System Circuits: Horn: Notes

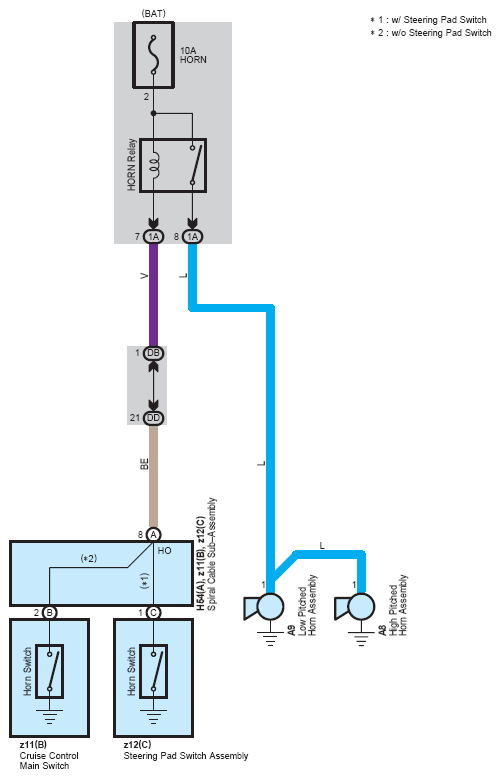

Fig 1: Horn Electrical Wiring Diagram

G07112498

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
