Mirror Heater: Notes

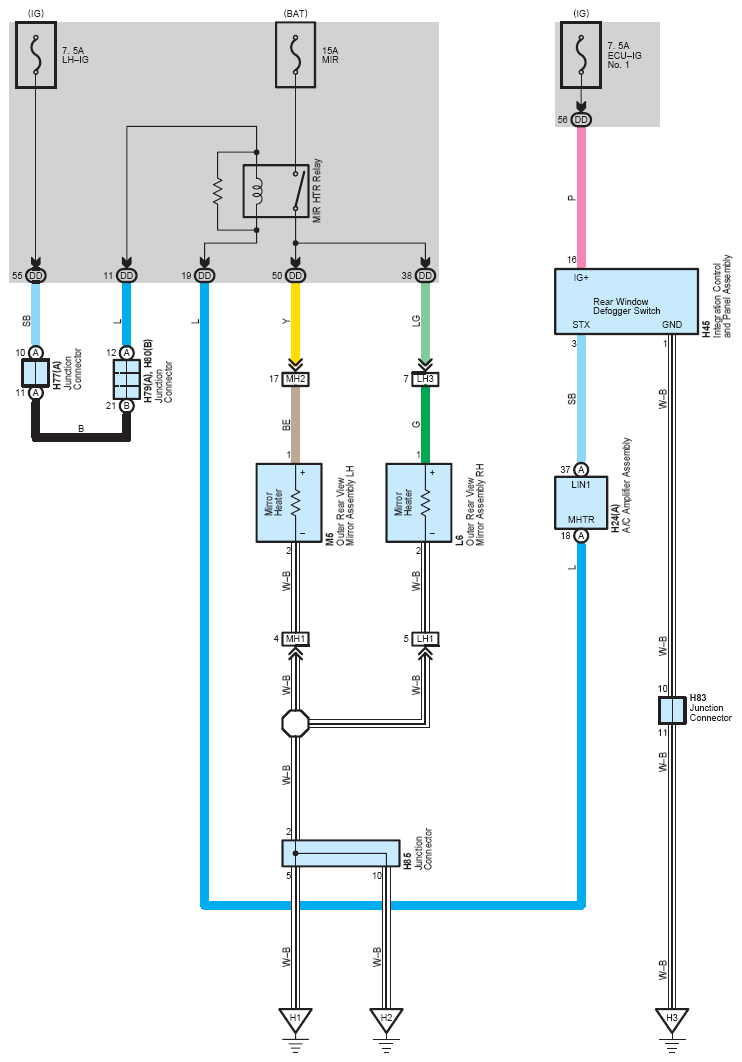

Fig 1: Mirror Heater System Wiring Diagram
G07112514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
