Power Source: Notes — 2011 Toyota Sequoia Platinum, 5.7 W Service Manual ~ FixVault

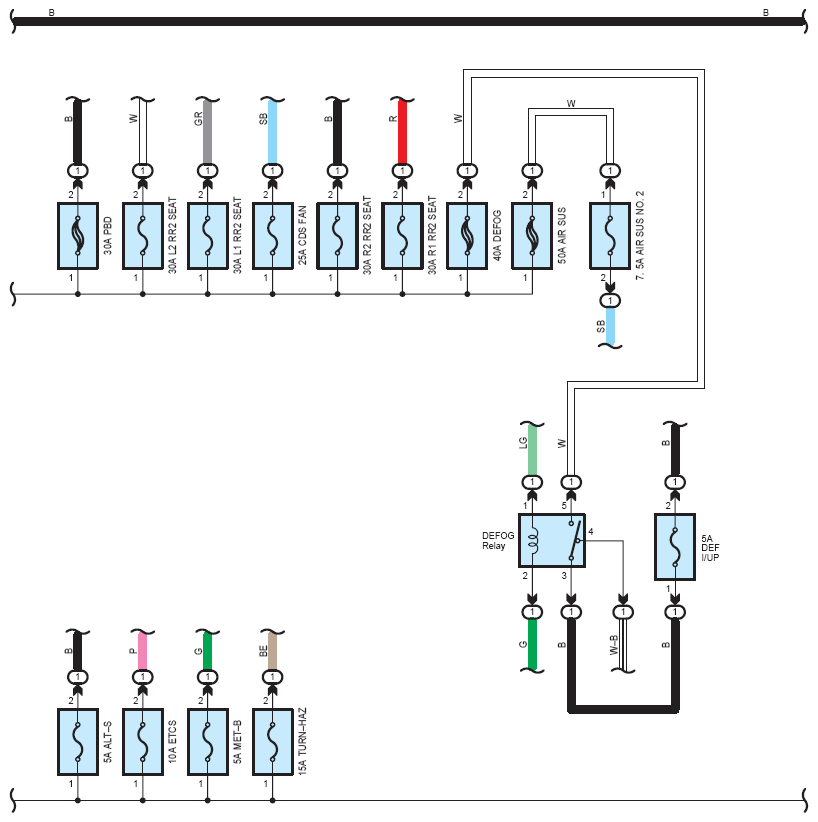

Fig 1: Power Source System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

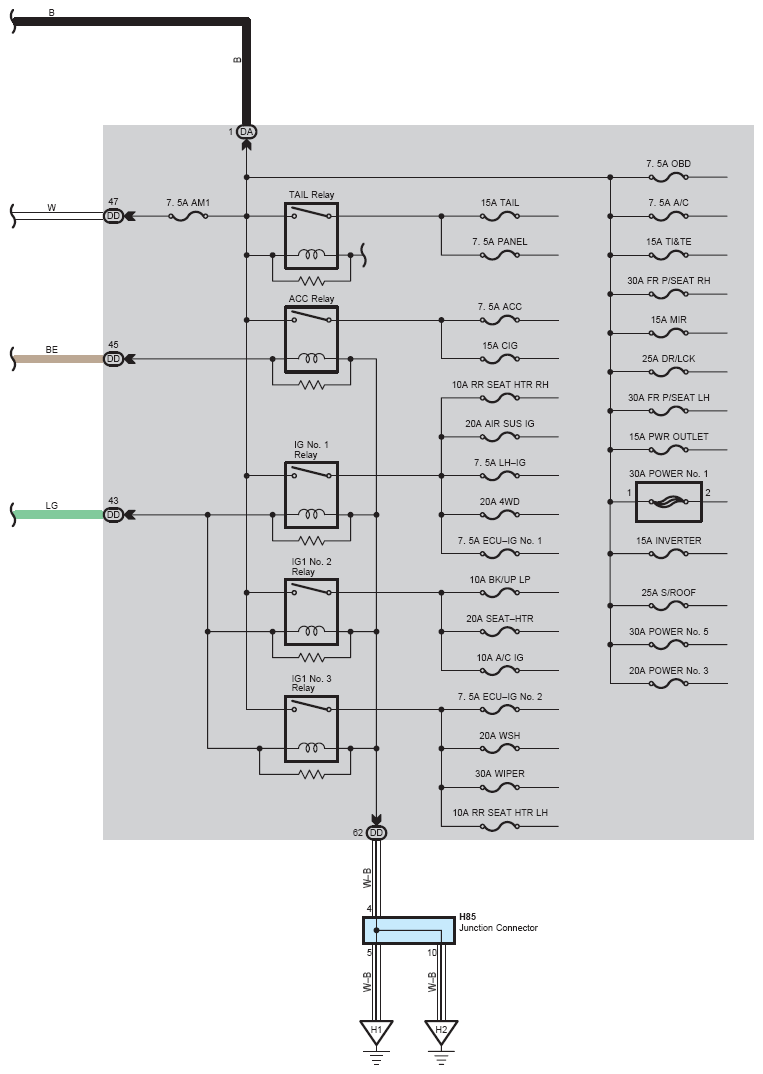

Fig 2: Power Source System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

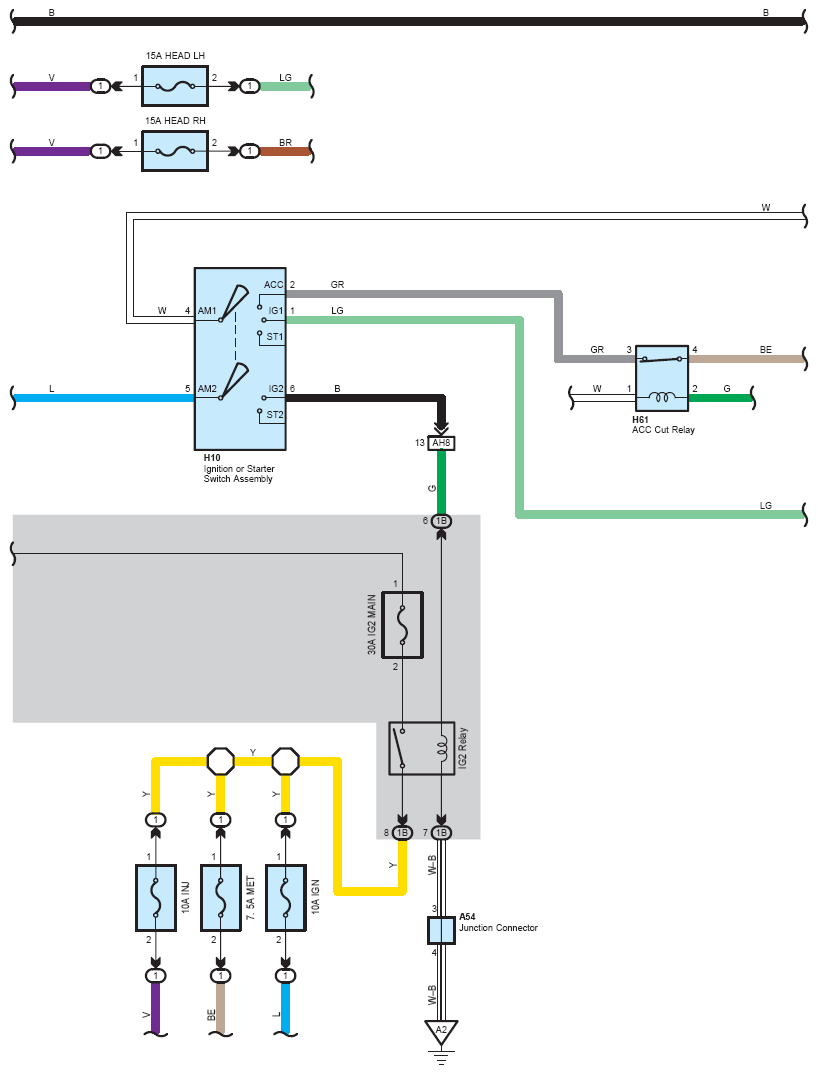

Fig 3: Power Source System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

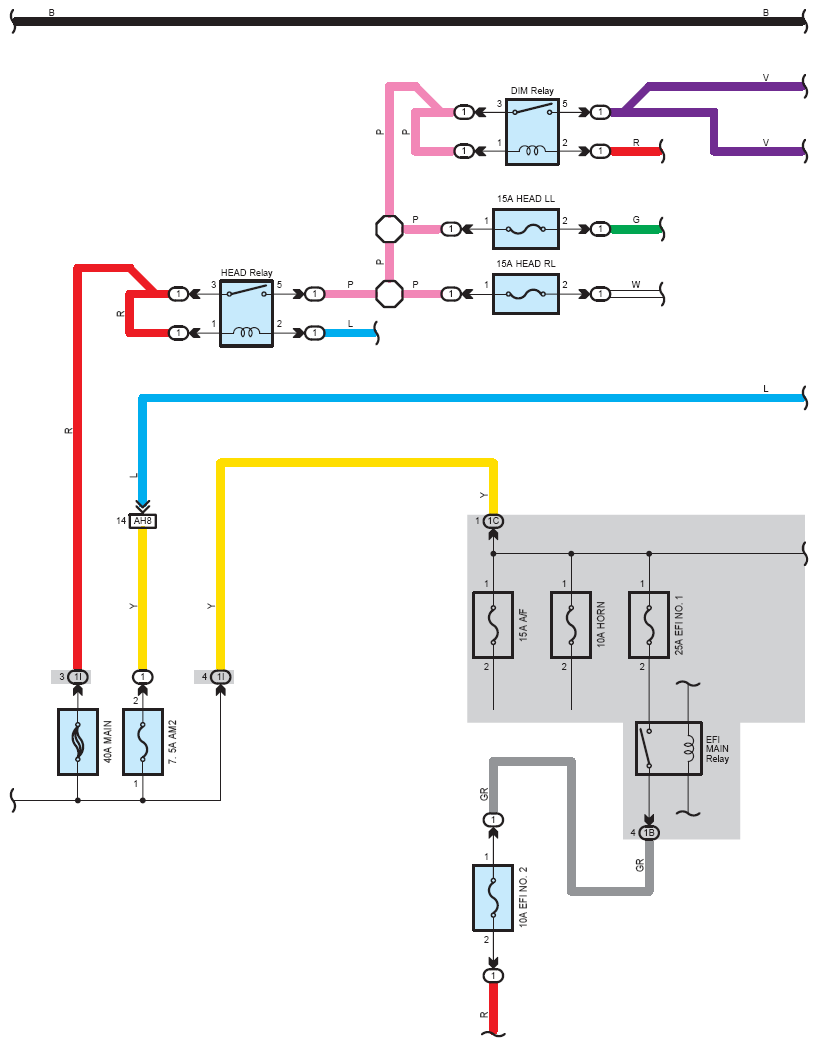

Fig 4: Power Source System Wiring Diagram (4 Of 5)

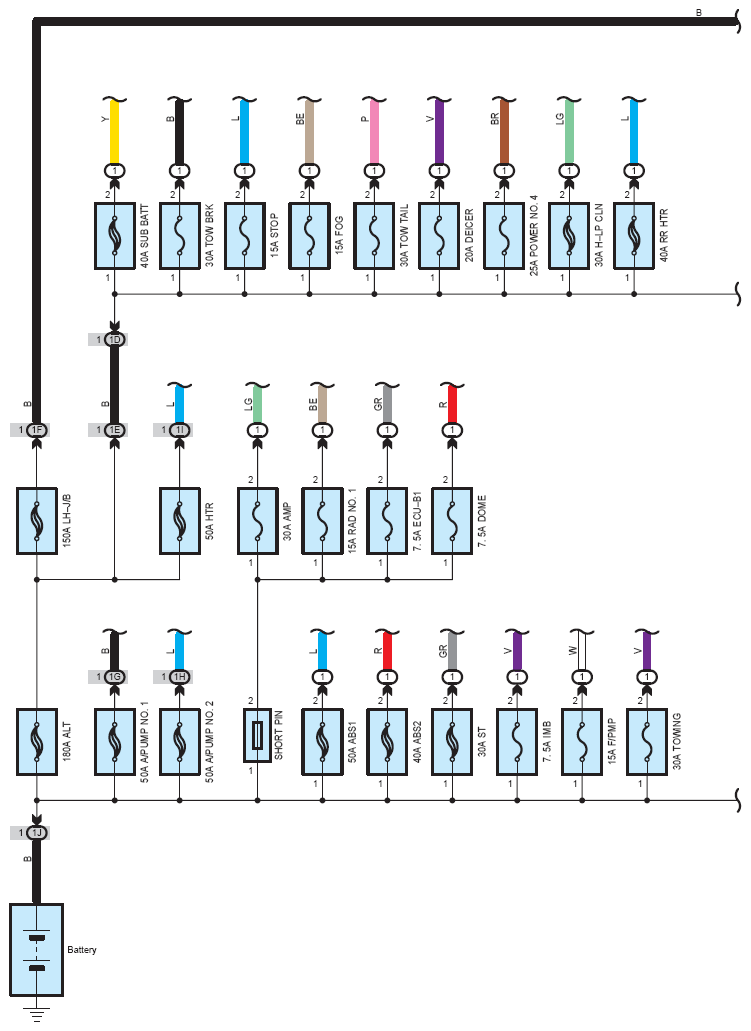

Fig 5: Power Source System Wiring Diagram (5 Of 5)
