Rear Window Defogger: Notes

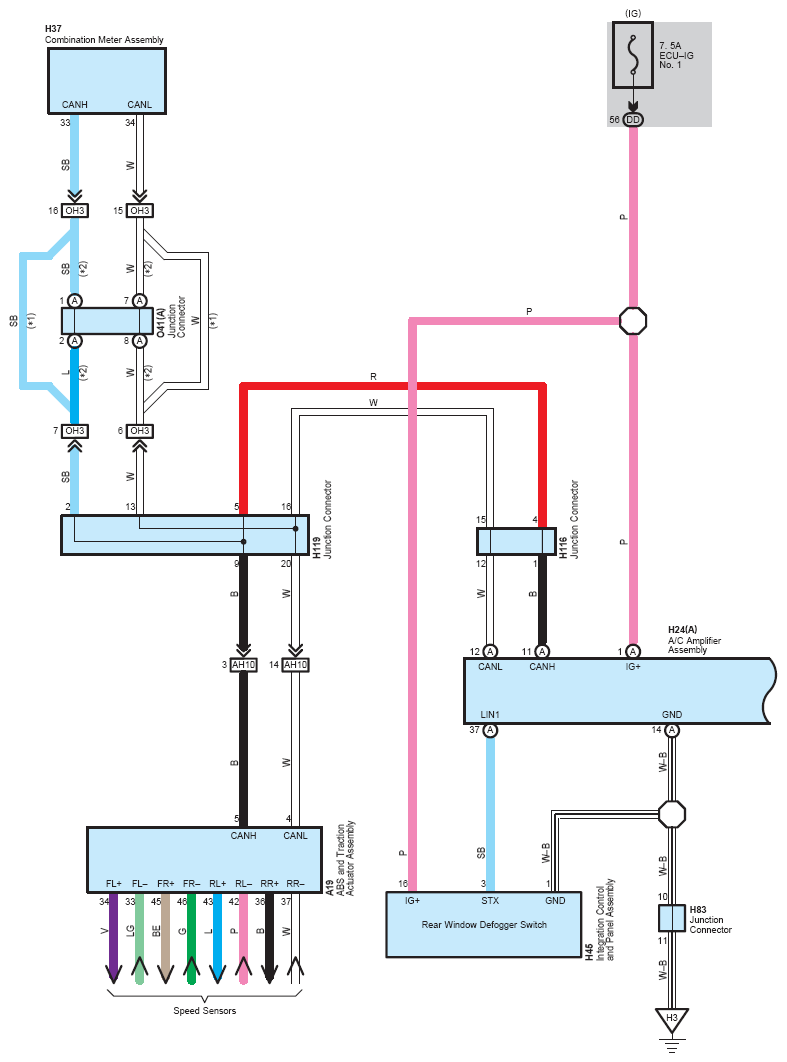

Fig 1: Rear Window Defogger Electrical Wiring Diagram (1 Of 2)
G07112507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

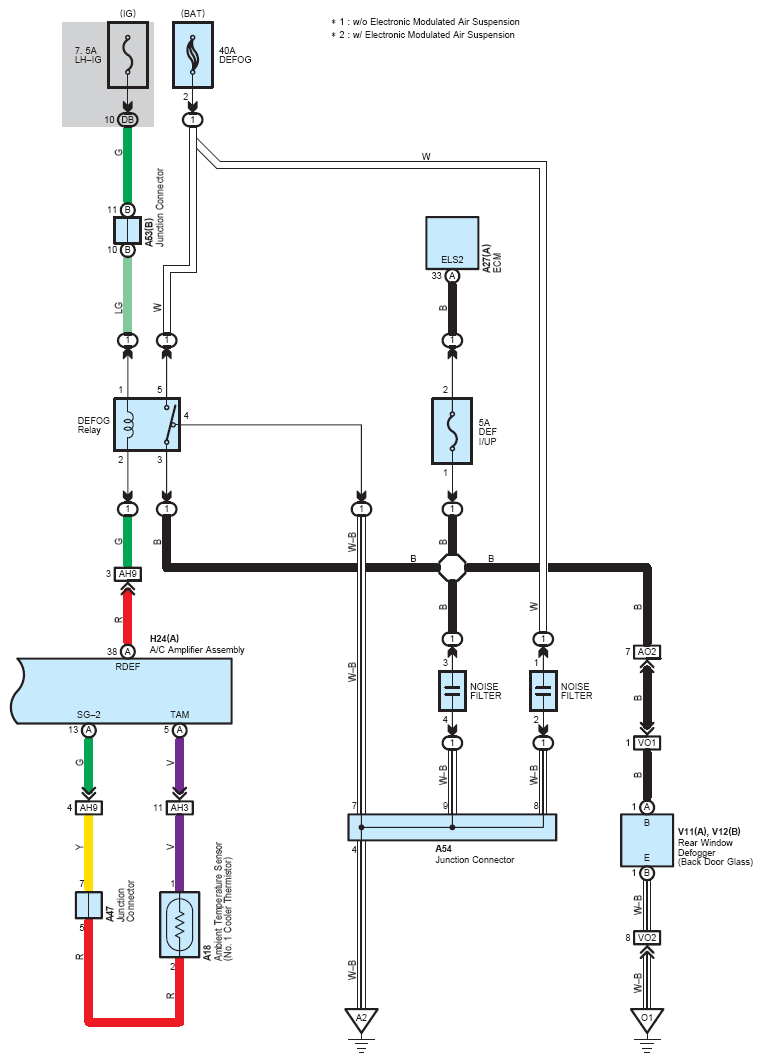

Fig 2: Rear Window Defogger Electrical Wiring Diagram (2 Of 2)
G07112508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
