Remote Control Mirror (w/Seat Position Memory): Notes

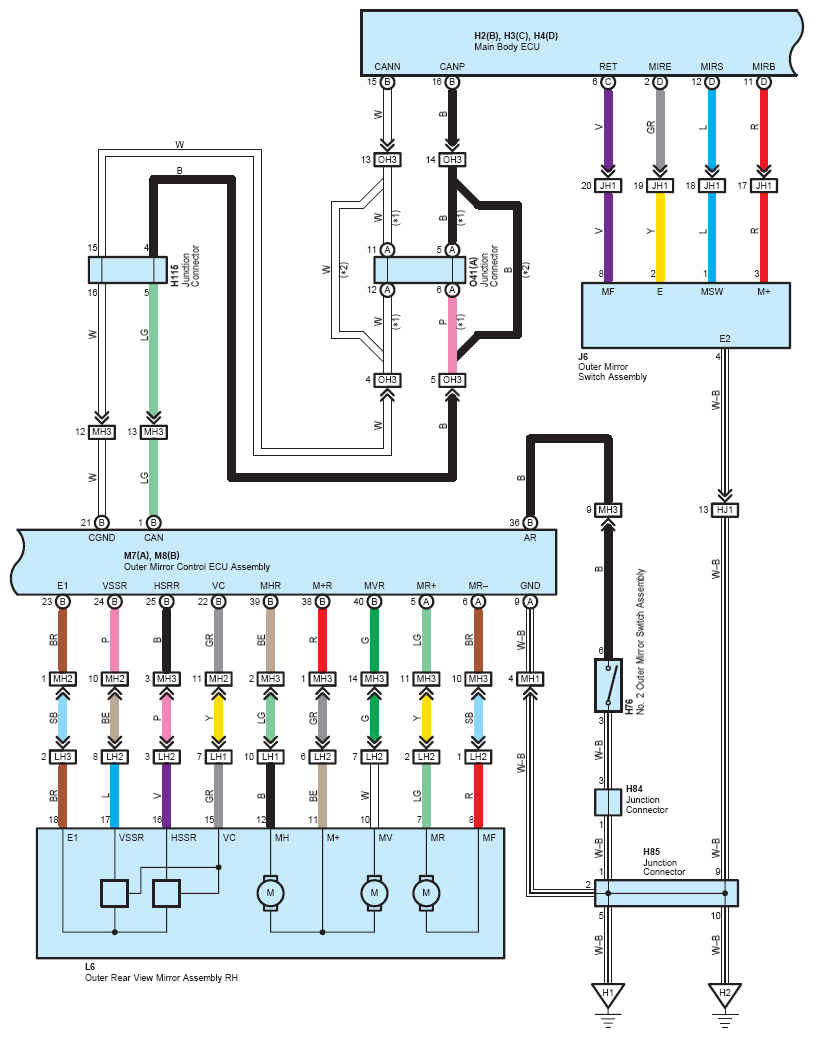

Fig 1: Remote Control Mirror (w/Seat Position Memory) Electrical Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

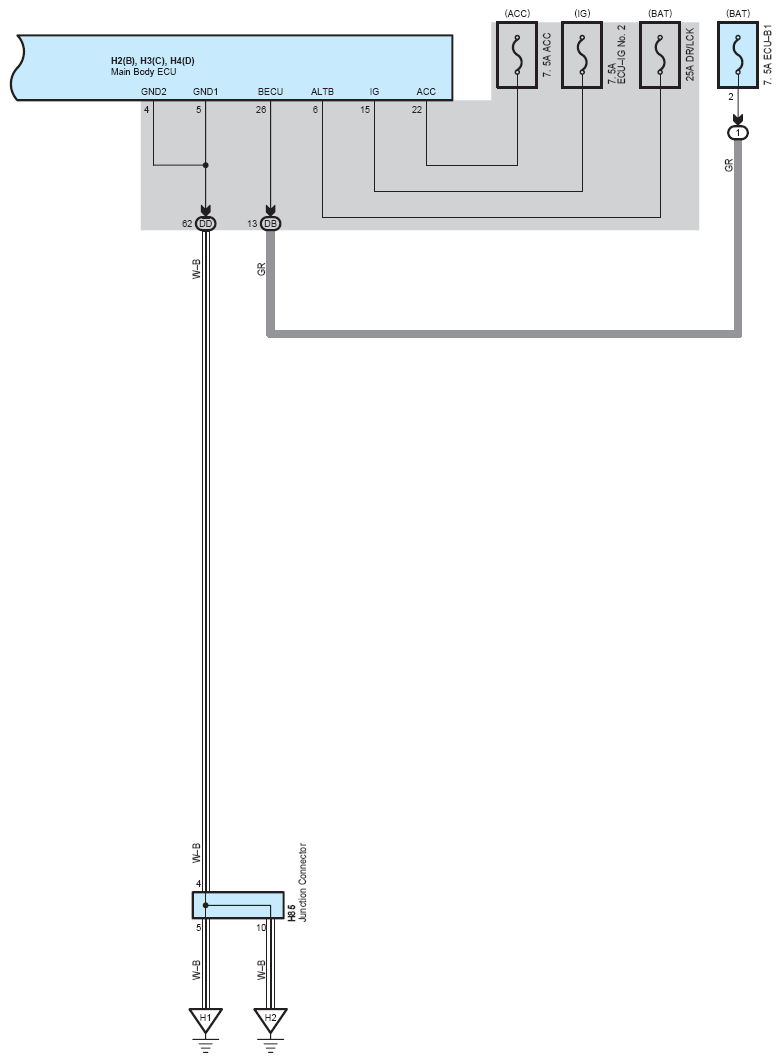

Fig 2: Remote Control Mirror (w/Seat Position Memory) Electrical Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

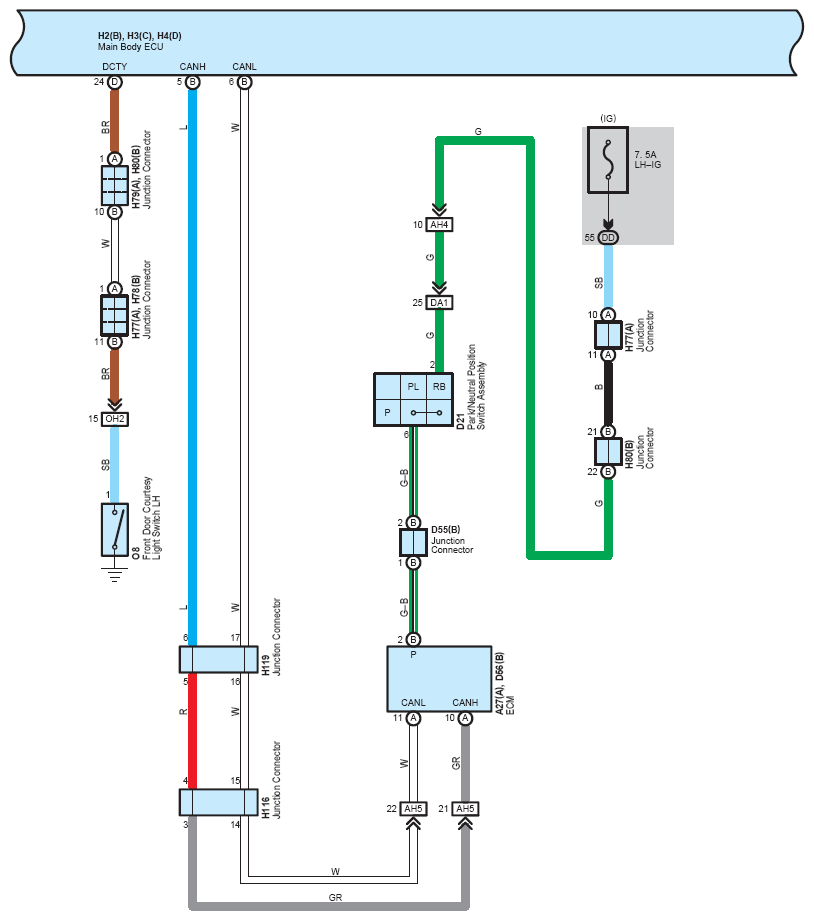

Fig 3: Remote Control Mirror (w/Seat Position Memory) Electrical Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

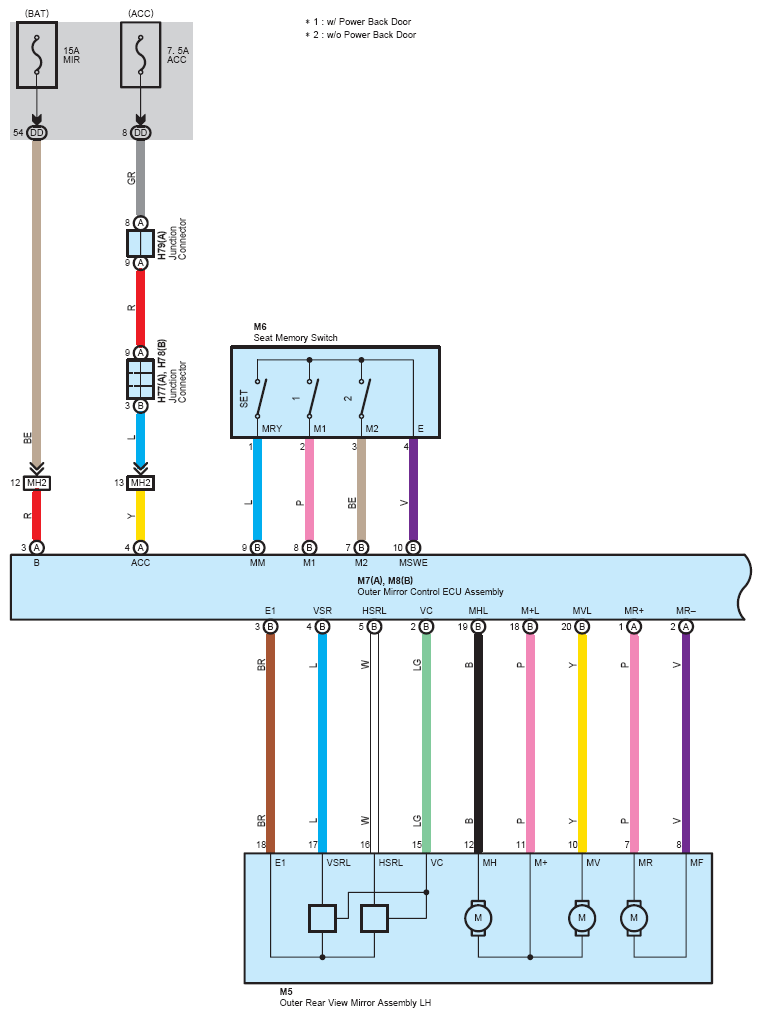

Fig 4: Remote Control Mirror (w/Seat Position Memory) Electrical Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
