Shift Lock: Notes

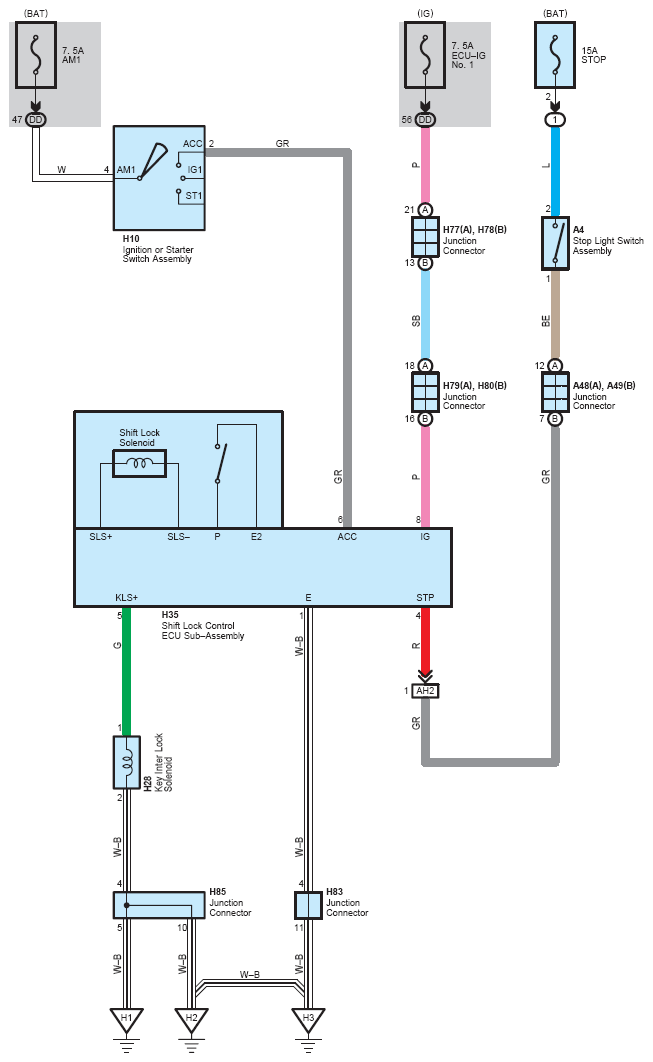

Fig 1: Shift Lock Electrical Wiring Diagram
G07112446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
