PCV Valve: Components: Illustration

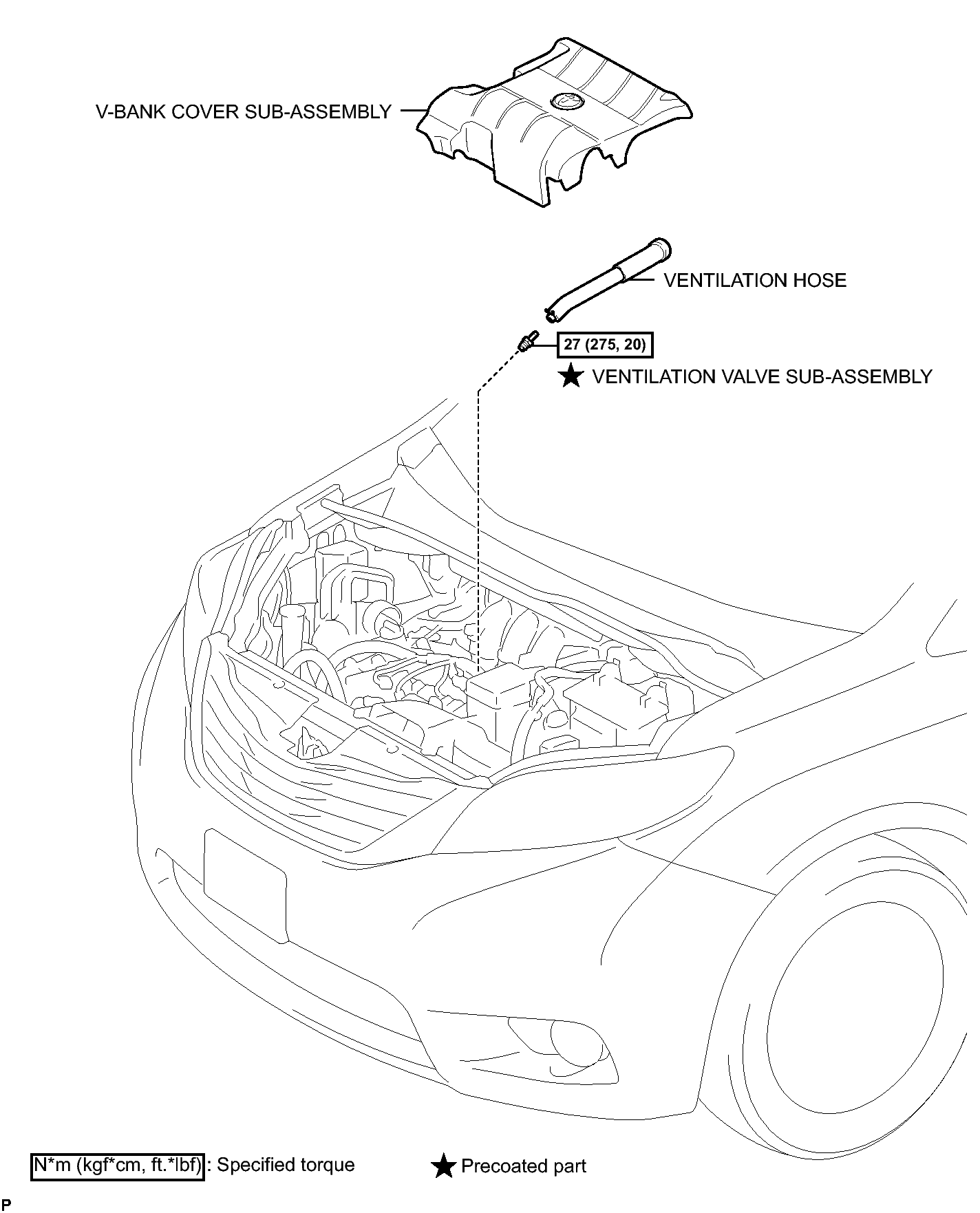

Fig 1: Identifying PCV Valve Replacement Components With Torque Specifications
GTY303625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
