Power Outlet (120V)
›
Notes
Power Outlet (120V): Notes

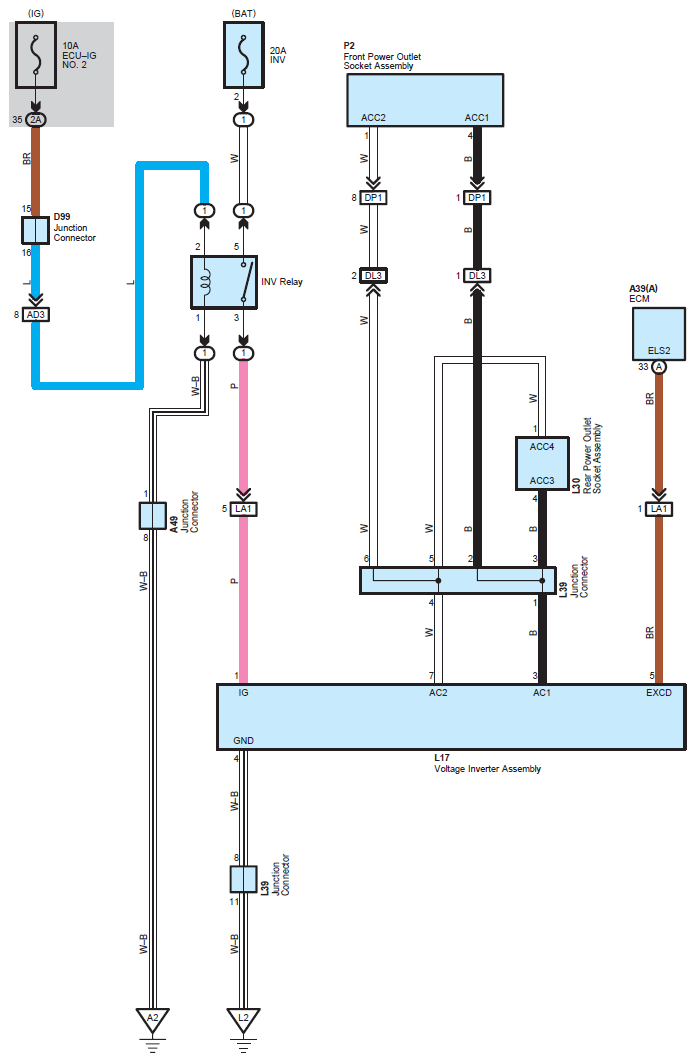

Fig 1: Power Outlet (120V) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
